Lecroy ST-20 20GHz Electrical module with TDR for WE100H
SOLD OUT sold |
osc701 |
|

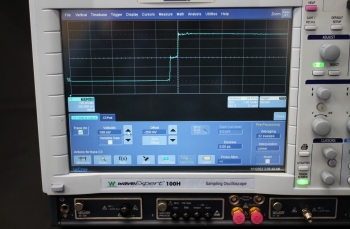

TDR reflection |

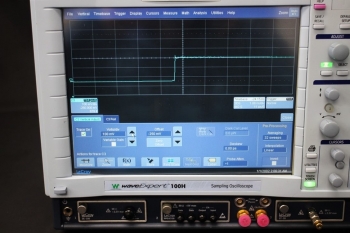

TDR connect termination |
|
Electrical Sampling Module
Connector Type:2.92mm
Rise Time:18ps
Bandwidth:20GHz
Input voltage range:2Vp-p
RMS Noise:700µV max(500µV typical)
Offset range:±1V
TDR Step Generator
Step rise time:20ps
TDR step Voltage:250mV
Resistance:50Ω
TDR pulse rate:1MHz
Offset range:±1V
Pulse Width:300ns±15ns
ST-20 operation check movie
|
| APC2.92mm(female)-APC2.92mm(female)*1 |
 |
|
)
)
)
)
