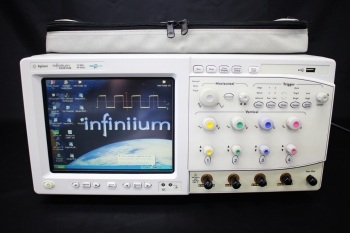

Agilent DSO81204B 001/004/005+soft opt
Infiniium DC-12GHz 40GSas Oscilloscope
SOLD OUT
sold
osc712

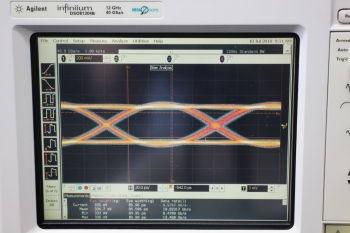

Input 10Gbs PRBS

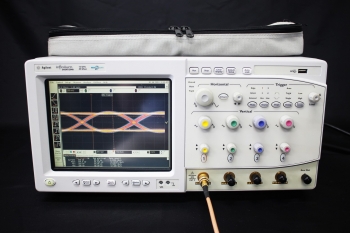

Input 10Gbs PRBS

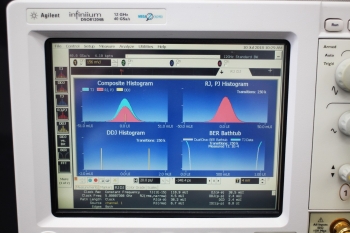

Jitter analysis

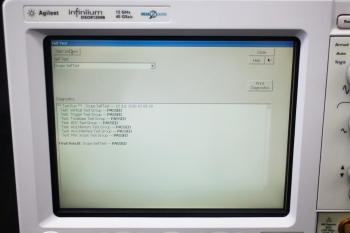

Selftest result

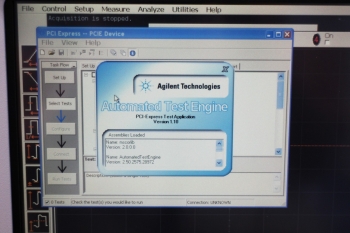

PCI Express soft

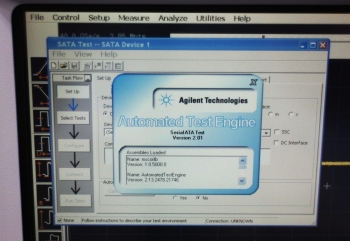

SATA compliance test soft

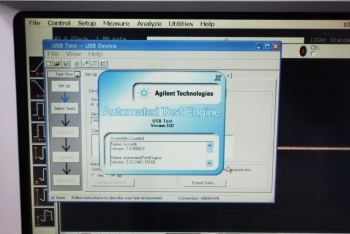

USB compliance test soft

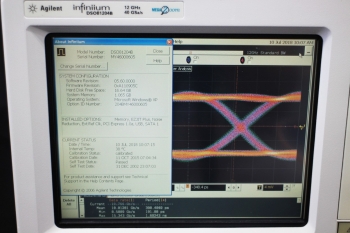

About infinium
Input channels:4
Analog bandwidth:12GHz
Rise time/fall time:
10-90%:36ps
20-80%:26ps
Input impedance: 50 Ω±3%
Sensitivity: 1 mV/div to 1 V/div
Maximum input voltage:±5 V
Main timebase range:
5ps/div to 20 s/div real-time, 5ps/div to 500ns/div equivalent-time
Operating system: Windows XP Pro
CPU:Intel® Celeron 3.2-GHz microprocessor
Power 100 - 240 VAC at 50/60 Hz
Weight:13kg
Option:
Opt001:Memory depth per channel
1,025,000 (4 channels)32,800,000 ≤ 2 GSa/s (4 channels)
004 EZJIT Plus jitter analysis
005 Noise reduction and bandwidth control
N5411A:SATA compliance test software
N5393A:PCI Express electrical performance validation and compliance software
N5416A:USB compliance test software

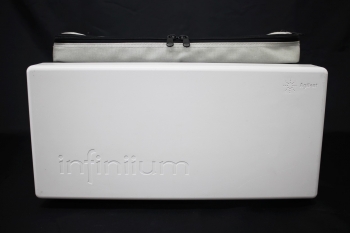

Front cover,Power code
)
)
)
)
)
)
)
)
)
)
)
