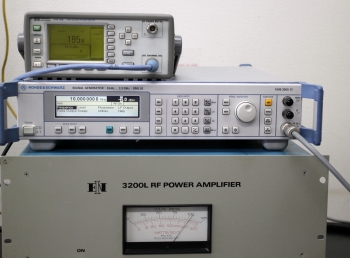

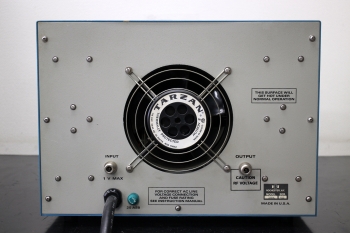

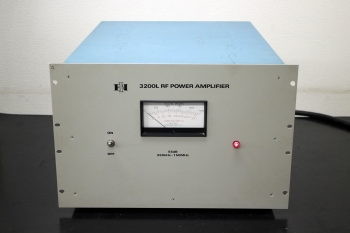

ENI 3200L
250kHz-150MHz 200W RF Power Amplifier
SOLD OUT
sold
amp170
Frequency range:250kHz-150MHz
Class A MAX Output power:250K-120MHz 200W
120-150MHz 175W IP3 +62dBm
Gain:55dB(nominal) +-1.5dB
Impedance:50 Ohm
Input Max VSWR 1.5:1 Output max VSWR 2.5:1
Noise figure 11dB (nominal)
Power Require
AC115V +6--12% 25A AC230V+6--12% 12.5A
311H435W584D 43.1Kg
)
)
)
)
)
