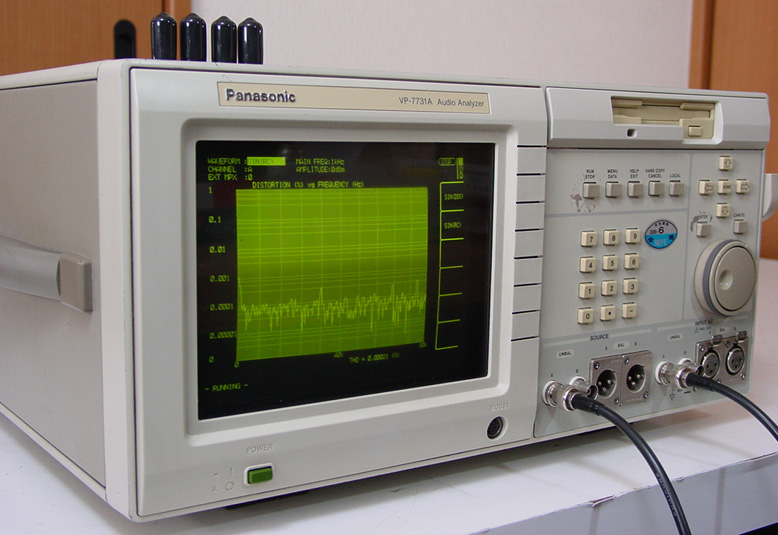

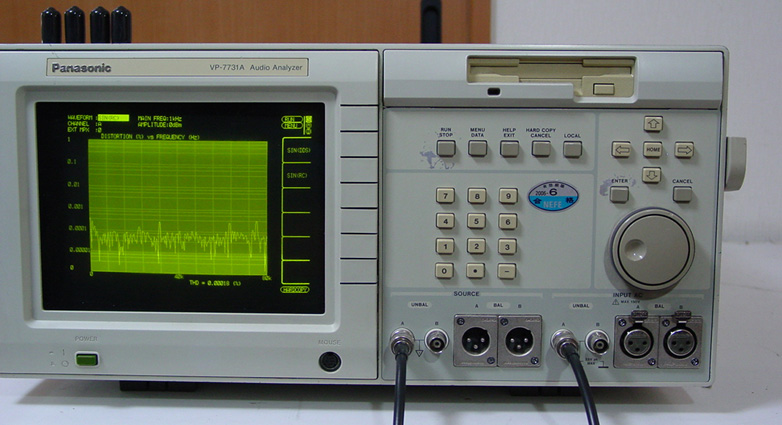

Panasonic

VP7731A DSP 2ch Audio Analyzer FFT

550,000円(税込)

仕様

Function:Frequency,Phase,DClevel,S/N,AClevel,Ratio,Ditortion,Wowflatter,FFT
OSC:5Hz-210.00KHz(DDS)
Flatness0.02dB Dist<0.1% 10.0Hz-50.0KHz(RC) Flatness0.05dB Dist<0.001% 2ch:A,B BAL/Unbal Impedance25,75,300,600ohms Bal:50,150,600ohms

Measure:Frequency 10.000Hz-110.000KHz
5digits 30mV-100V
DClevel:25.00mV-250.0V acc0.3% 1Mohm Unbal
AClevel:0.250mV-140V noise<10uVrms(<80KHz)
W:6digits res0.01W RL:1.0-9999.9ohms
S/N:25uV-100Vrms 0-120dB
Distortion:10Hz-100.0KHz 100%-0.01000% -80.00dB <0.001% (20Hz-10KHz) Ratio:A/B B/A acc4%
WOW:3KHz+-200Hz 10.00-0.1% acc5% WTD UNWTD
DSP:res0.02Hz Span8Hz-80KHz 0-80KHz acc0.1% DynamicRange>80dB Harmonic<-80dB Window:Flat,Hamming,Rect Ave:1-256 Smoothing;1-256
THD:10th Harmonic

GP-IB,RS232C,Centro
350VA
199H430W500D
19Kg

付属品

Power Code
