ADVANTEST

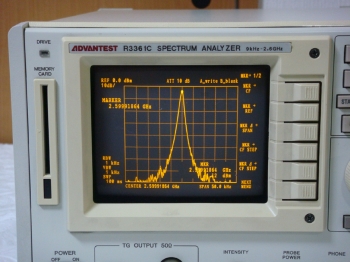

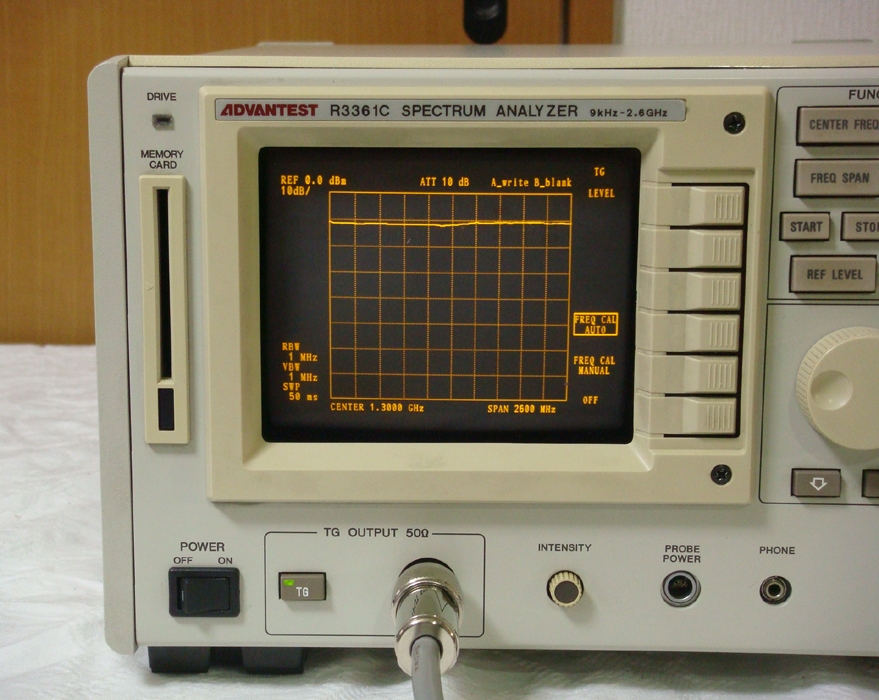

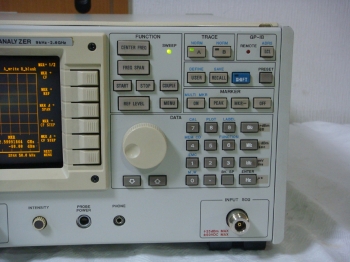

R3361C 9KHz-2.6GHz Spectrum Analyzer with TG
330,000円(税込)
- 仕様
-
9KHz-2.6GHz res1Hz stability2*10E-8/day Span 1KHz-2.6GHz Log 10KHz-1000MHz res30Hz-1MHz Marker Amplitude -130dBm-+25dBm Log120dB (10div),80dB,50dB,20,10dB 50ohms N(f)
Lin 10dB QP80dB Ref-70dBm-+20dBm Noise-120dBm Video1Hz-1MHz Sweep 50ms-1000s
Tracking generator 9KHz-2.6GHz 0dBm--50dBm res1dB Flatness1.5dB 50ohms N(f)
ICmemory GP-IB Earphone(AM/FM) Probe-Power(+-15V)
Recorder-out(X,Y) 220VA CRT 5.5inch 177H330W450D 17Kg
