Anritsu

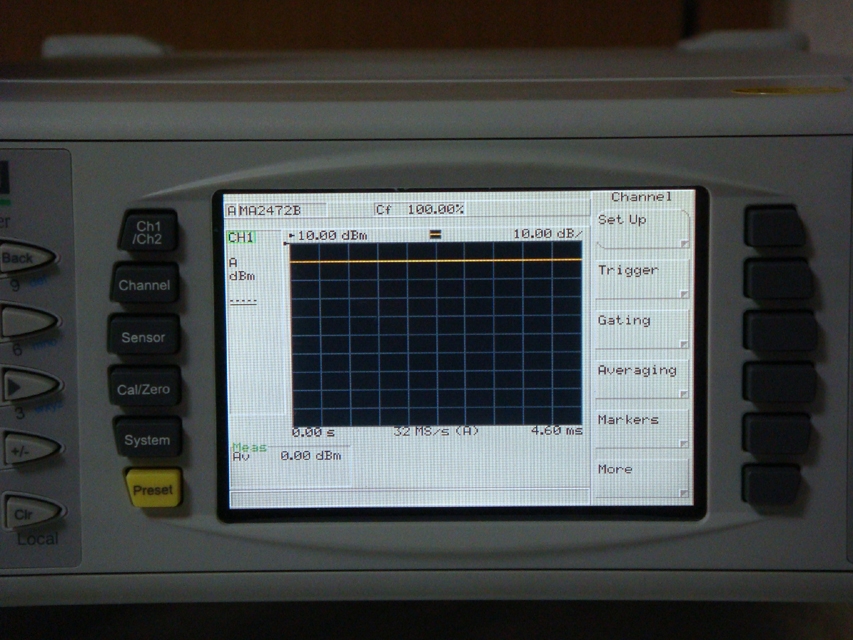

ML2487A Wide Band Peak Power Meter
330,000円(税込)
- 仕様
-
10MHz-50GHz,Senser Dynamic Renge :
-70dBm - +20dBm(MA2400A/B Series Sensor),Sampling rate :Max 64MS/s,Accuracy :<0.5%,Resolution :0.001 - 0.1dB VideoBand 20MHz
Unit:nW-W % dBm,dBW,dB,dBuV,dBmV Reference 50MHz 1.00mW N(f)
Mode:CW Modulation AveragePower,PeakPower,CrestFactor
AvePower:Max/Min PFD,CDF,CCDF
LimitLine Marker Gate Trigger:Cont,INT,EXTTTL,GP-IB BUS
Delay:0-999ms Capture:3.2ns-7s
Display:ColorLCD Memory20 GP-IB
88H213W390D 2.8Kg
Include Sensor Cable
No Sensor
