Agilent

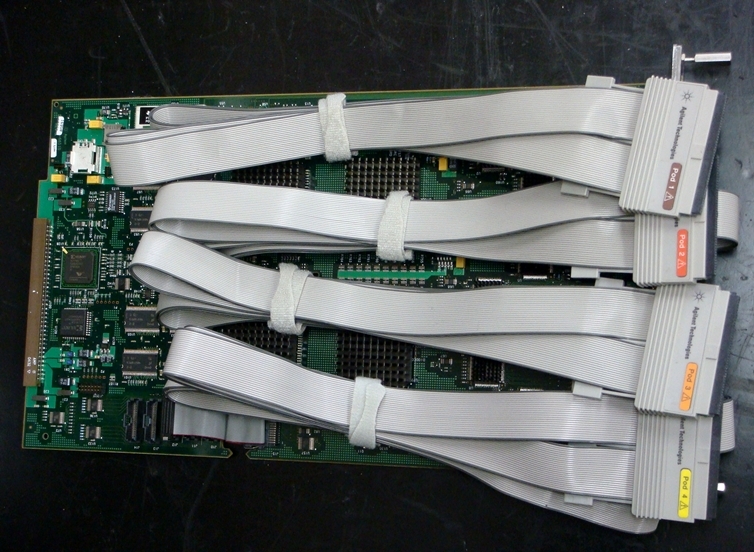

16950A /016 68ch 4GHz Timing/600M State 16M Memory Logic Analyzer Modules

346,500円(税込)

仕様

Measurement Modules for the 16900 Series

Channels per module:68
Maximum channels on single time base:340
High-speed timing zoom:4 GHz (250 ps) with 64 K depth
Maximum timing sample rate:600 MHz (1.67 ns)
Transitional timing:600MHz(1.67 ns)
Maximum state clock rate:667MHz
Maximum state data rate:667Mb/s (DDR)
Setup/hold window:1 ns (600 ps typical),
Adjustment resolution:80 ps typical
Supported signal types:Single-ended and differential
Probe compatibility:90-pin cable connector

OPT 016:16M Memory

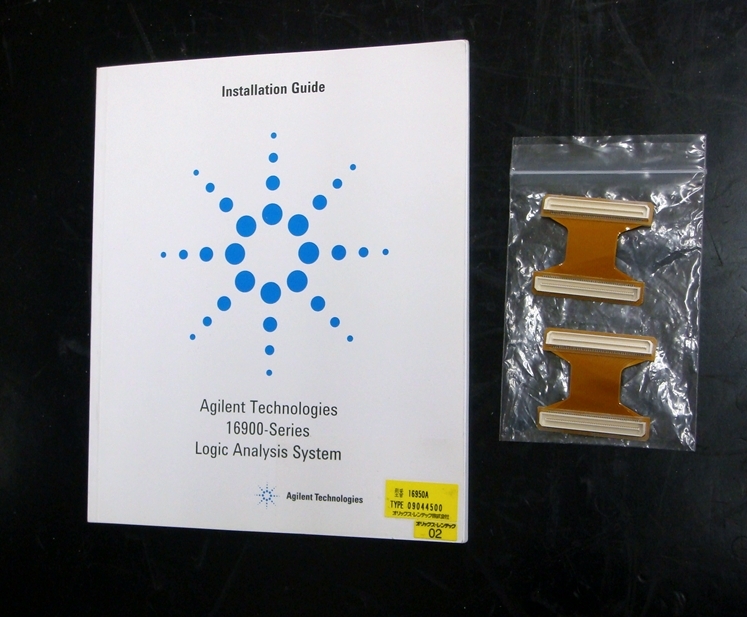

付属品

Instaration Manual,16754-61601*2 Board Connector,
