COCORESEARCH

CRM281 Transmission Deviation Analyzer

110,000円(税込)

仕様

Senser Input;
Input Channel:2ch,
Input Frequency:A/B Phase Pulse 1MHz(max),Phase difference and Overrup 200ns(min),UP/DOWN and Single Pulse 2MHz(max),Pulse width 200ns(min),
Sensitivity:High Level3.0V(min),Low Level 1.0V(max),
Control Input;
Input Circit:Photo Cupler Isolation,
Response Speed:300us(max),Pulse width 300us(min),
Function:Integration reset,Loging Start/Stop,Display Hold,
Input Connector:Dsub9Pin socket,
Return Pulse Output;
Output Logical:Photo Coupler High Level
Output Level:5V CMOS(51ohm),
Output Connector:Dsub15Pin Socket,
Analog Output;
Channel:8ch,
Output Items:Integration,Ringcounter,Speed
(2 Input each),
DAC Resolution:16bit,
Output Accuracy:Integration,Speed +-0.05% fullscale,
Delta Mass +-0.1% fullscale,
Temperature coefficient +-200ppm/deg
Memory:4Mbit,
302(W)-150(H)-247(D)mm,2.9kg,

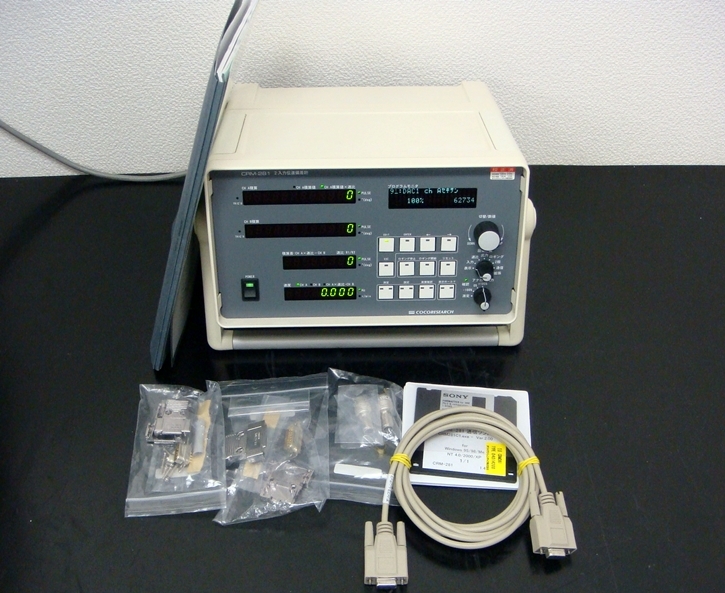

付属品

Manual*2, Connector Assembly(Dsub15P(m),Dsub9P(m),circle12P(m)),RS-232C Cross Cable(Dsub9P(f)-Dsub9P(f)@3m),FD(CRM-281C1.EXE),Power Code,
