YOKOGAWA

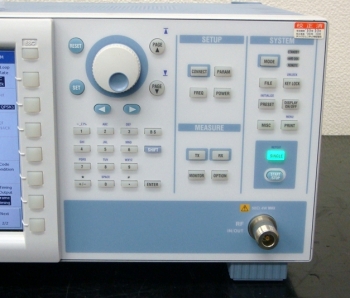

VC3300 WCDMA Wireless Communication Tester

288,750円(税込)

仕様

Model:733020-M/W/C1
WCDMA Function test
Transmitte characteristics Test;
Tx power(Adjustable),
Error Vector Magnitude(EVM),
Frequency Error,
Adjacent Channel Leakage power Ratio(ACLR),
Occupied Bandwidth(OBW),
Spectrum emission mask(SEM),
Inner Loop Power Control,
Open Loop Power Control,
Transmission OFF Power,
ON/OFF Time mask,
Receiver characteristics test;
Reference sensitivity level(Loop back BER),
Maximum input level(Loop back BER),
Demodulation of DCH(BLER),
UE Report,

Remote control by user developed software made in Visual Basic,VisualC++,etc,

Bit Error Test input under non-call processing,

RF Input/Output:Impedance 50ohm/Max Power 4W/
Connector N,
Interface;100BASE-TX,RS-232C,GP-IB,
426(W)-177(H)-300(D)mm,10kg,
Supply Voltage:100 to 120Vac or 200 to 240Vac,
50/60Hz,

付属品

CD-ROM(Wireless Communication Tester User's Manual),
Power Code,
