Rion

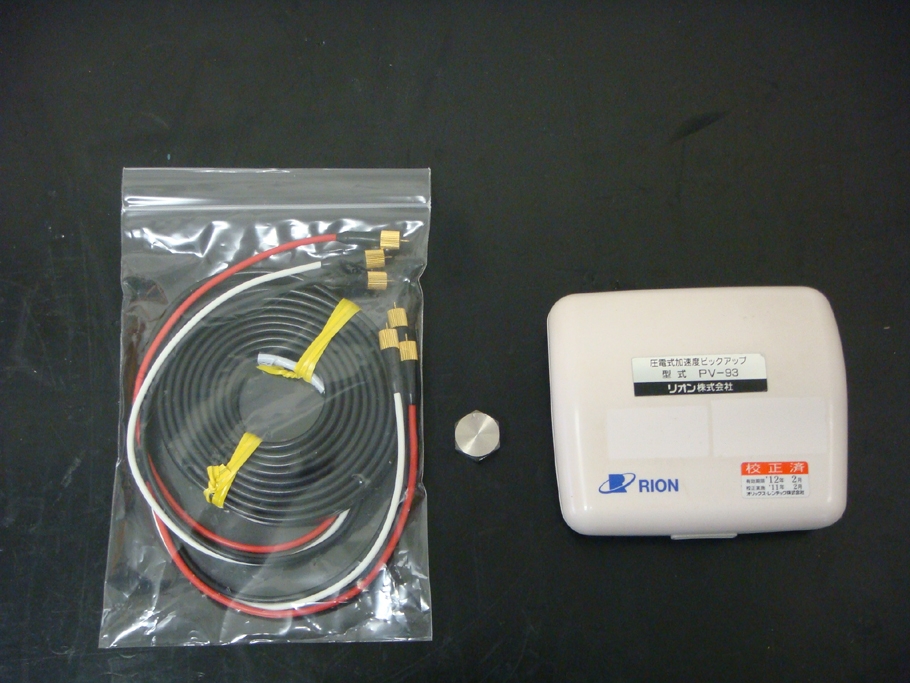

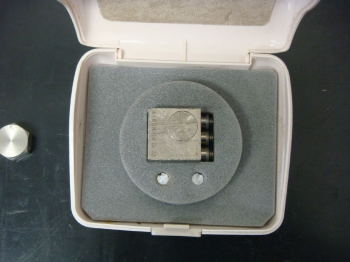

PV-93 ACCELERO METER

23,100円(税込)

仕様

Outline/Purpose:General purpose triaxial accelerometer
Principle:Shear,
Mass (g):30,
Charge sensitivity pC/(m/s^2):0.831,
Vibration frequency range (+-1dB)Hz
:1 to 8000(2-axis),1 to 4000(1-3),
Transverse sensitivity:5% or less,
Standard mounting method Screw torque N-m
:VP-53A M6 screw 3.5,
Maximum measurable acceleration m/s^2(peak):10000,
Base distortion sensitivity (m/s^2)/ustrain:0.6,
Tharmal transient response (m/s^2)/deg:15,
Temperature range for Use/deg:-50 to +160,
Capacitance pF:410,
Case material:Titanium,
Connecting equipment:Charge amplifier,

Detail
http://www.rion.co.jp/dbcon/pdf/PVseries-E.pdf
本体表面に傷
