Rohde&Schwarz

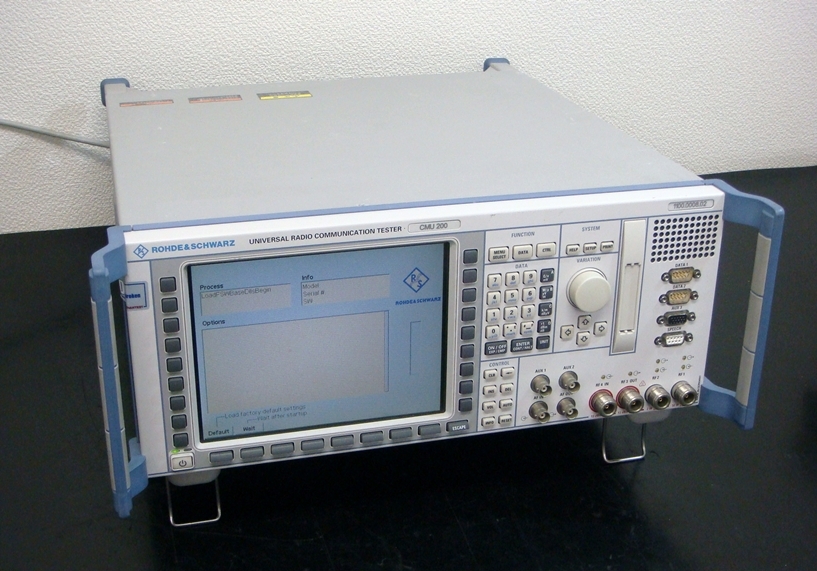

CMU200 2.7GHz 50W Universal Radio Communication Tester

660,000円(税込)

仕様

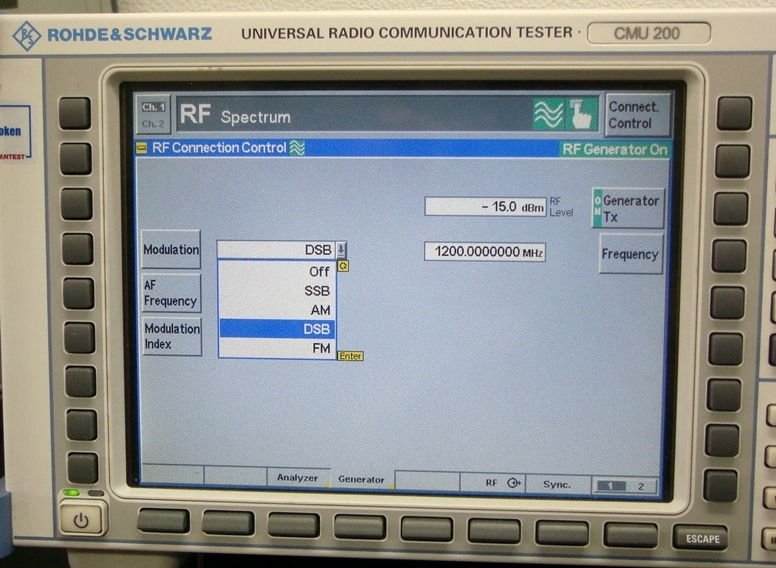

・RF Generator
Frequency range:100k〜2700MHz
Frequency Resolution:0.1Hz
Output Level Range:
RF1 100k-2200MHz -130dBm〜-27dBm
2200M〜2700MHz -130〜-33dBm
RF2 100kHz〜2200MHz -130dBm〜-10dBm
2200M〜2700MHz -130dBm〜-16dBm
RF3 100k〜2200MHz -90dBm〜13dBm
2200M〜2700MHz -90dBm〜5dBm
Output Level Resorution:0.1dBm
Modulation:I/Q FM AM SSB
・RF Analyzer
・Power Meter(wide band)-33dBm-+47dBm(50W) Peak 200W PEP
・Power Meter(selective 0.1Hz)-80dBm-+47dBm(50W) Prek 200W PEP

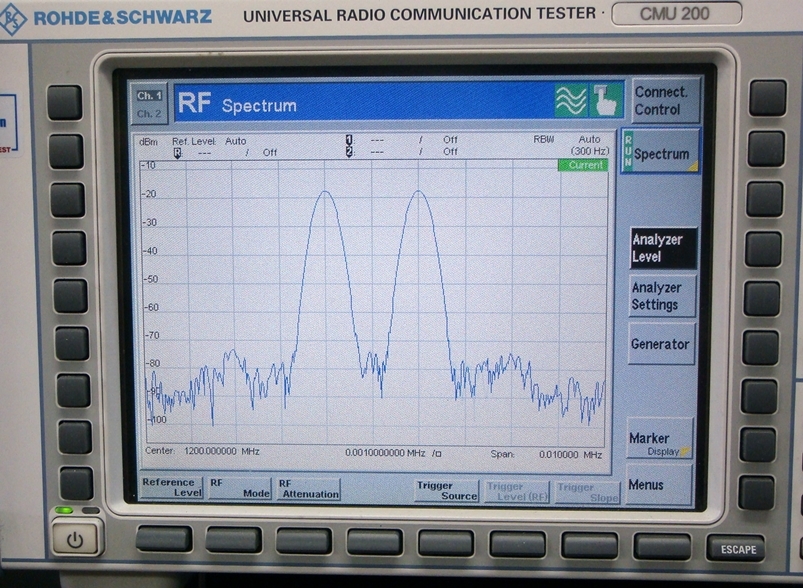

Spectrum Analyzer
10MHz-2700MHz 0.1Hz res 10Hz-1MHz

Option
B12 Timebase OCXO 5*10E-10/day

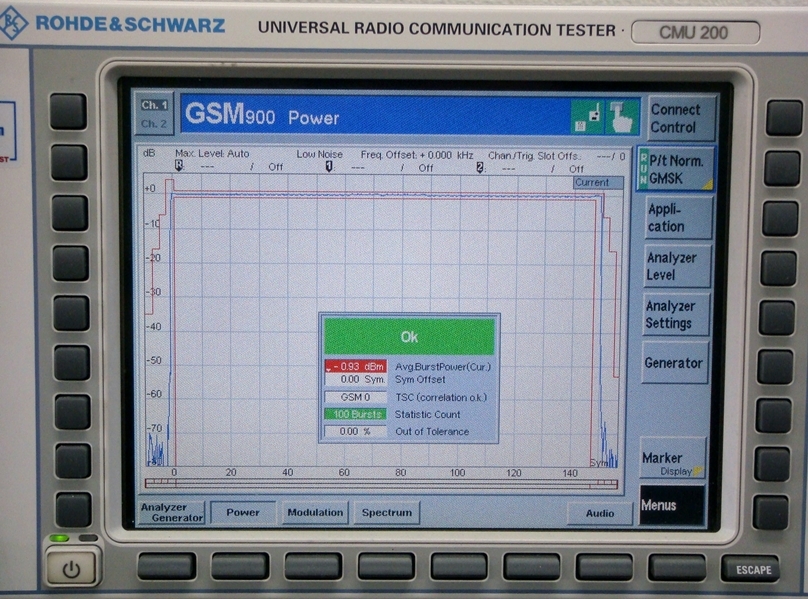

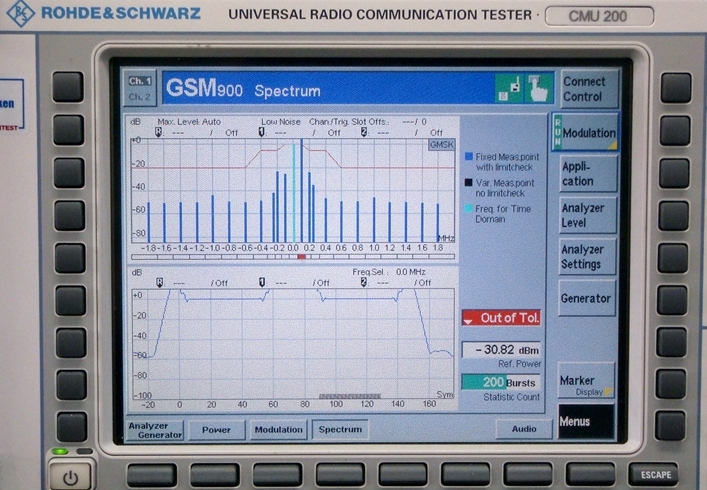

B21 GSM Standard
B41 Audio generator/analyzer
B52 CMU speech codec
K21 GSM900, R-GSM, and E-GSM mobile station signaling/non-signaling test software
K22 GSM1800 (DCS) mobile station signaling/non-signaling test software
K23 GSM 1900
