ASTRO DESIGN

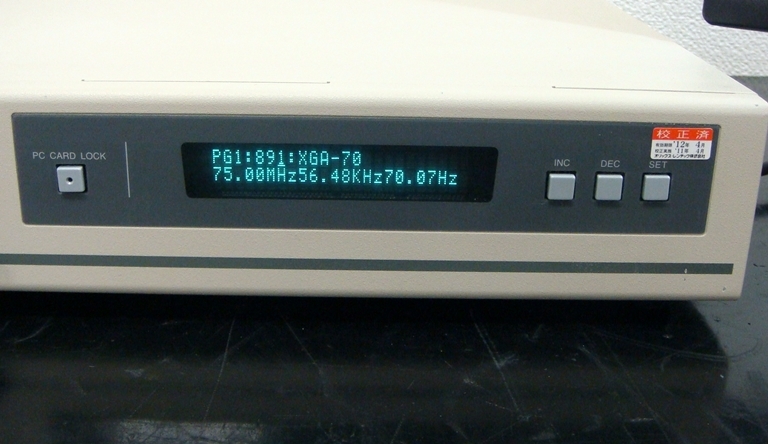

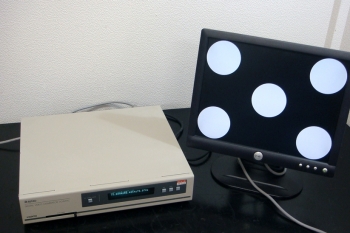

VG859C Portable Video Signal Generator

176,000円(税込)

仕様

Data Programing;
Analog Output:BNC(RGB,YCbCr),D-sub,DVI,D-Connector,
Dot Clock Frequency/Step:5.00-250.00MHz/0.001MHz step,
Scan:Inter race/Non Inter race,
Display color:16,770,000-(24bit),
Output Signal:RGB/YCbCr,
Signal level:0.3-1.2V　75ohm (+-3%),
Mixed Clock Signal:0.00-0.6V 75ohm(-3%),
Set up Level:0.3-1.2V 75ohm(+-3%),
Rase/Fall time:<15ns,
Clock Signal level:HS,VS,CS(>2.0V),
Horizontal timing:10-300kHz,128-8192dot,
Verchical TimingFrequency:15.6-200Hz,Line 4-8192,
DVI Output;
Dot Clock Frequency/step:25.00-165.00MHz/0.001MHz step
DDC2B:Read/Write/Compare/Edit,
HDCP:Ver1.0,
Video format:TMDS(RGB,YCbCr4:4:4),
HDMI Output;
Clock Wrength:Max150MHz(12bit),165MHz(8/10bit),
Color Mode:RGB,24bit/RGB,36bit,
Ver:HDMI 1.3a,
DDC2B:Read/Write/Compare/Edit HDMI Ver1.3a 512k Byte
