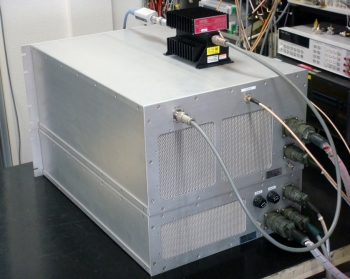

A0825-4747-R 800-2500MHz 50W 50dB Wideband Amplifier

577,500円(税込)

仕様

@2,500MHz -1.7dB

Operation Mode: Class A 50W
Frequency Range: 800MHz - 2500MHz
Small Signal Gain: >＋47.0dB (min.) 50dB(type)
Gain Flatness: ±1.5dB (max.)
Output Power: > 50W (min.) @1dB Comp.
Harmonics: −18.0dBc (max.) @Po=50W
Spurious: −60.0dBc (max.) @Po=50W

Impedance: 50Ω Input:SMA(f) Output:N(f)
Input VSWR: 2.0 (max.) Output VSWR: 3.0 (max.)
AC Supply Input: AC100V±10％／1φ,50／60Hz,15A
Operating Temperature: −10℃ to ＋45℃
Storage Temperature: −15℃ to ＋65℃
Cooling: Forced Air Cooling
Protection Circuit: Over Temperature Protection
AMP(Uppeer) Size(W)480mm×(D)649mm×(H)249mm
Power(Lower) Size(W)480mm×(D)649mm×(H)149mm
Weight: 50.0kg (total)

Option Circulator Band Switch 800-2000MHz,1500-2500MHz

付属品

J-Manual,Test Data,Connector Cable*2,Power Code,
