ANDO

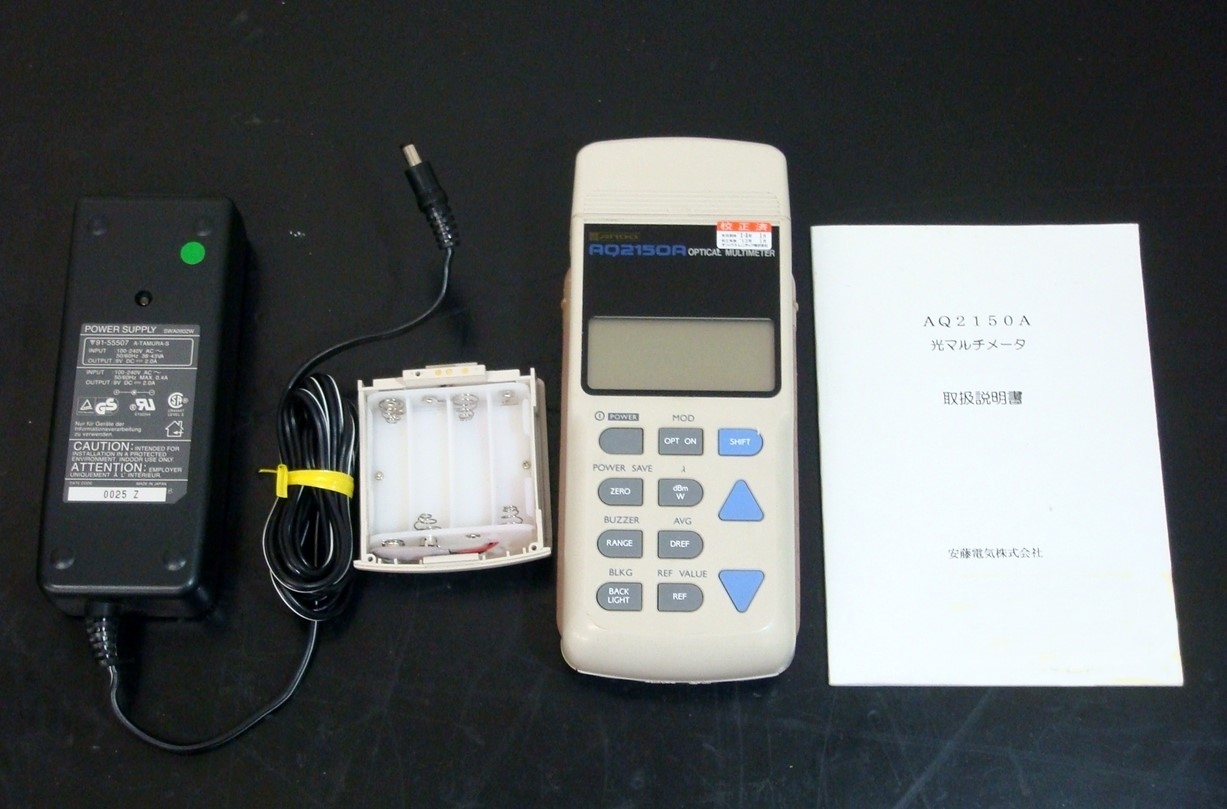

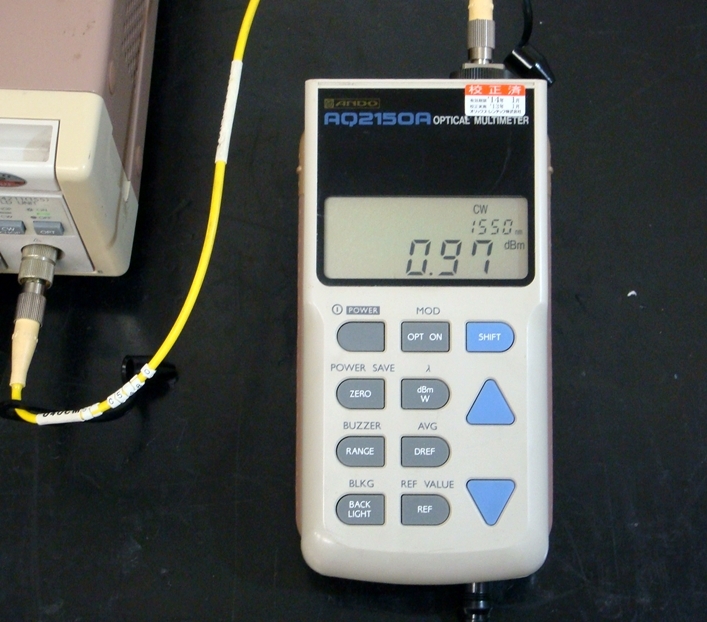

AQ2150A Optical Multimeter Main Frame

49,500円(税込)

仕様

Handy type Optical Multimeter,
Display:7segment,4digts,
Absolute Value:dBm,mW,uW,nW,pW, ref dB
Calibration Factor 5nm step
Range Up/Down Auto/Manual
Measurement Mode:CW or Chop(270Hz/1kHz/2kHz)
Interval 330ms Average 10/50/100 times
Resolution 0.1dB/0.01dB Auto Zero
Back Light button ,Auto Power Off(3-10min) ,Low Battery
Buzzer(Level limit) Resume Analog-output 0-+2V
Power USM3:4 AC-adaptor AC100-240V )
205H88W43D 450g

Sensor AQ2750,2751,2752,2753,2755,2756
LED Source AQ42508085,131,155,131/155)
LD Source AQ4251(131,155,131/155) AQ4252,4252A,4254A
Return Loss AQ7350(131,155)
OPT AZ8115:Soft Carrying Case,

No Sensor Module
