YOKOGAWA

AQ7260 OTDR 1310,1550nm

495,000円(税込)

仕様

Horizontal axis;
Scale:25m/50m/100/250m/500m/1km/2km/2.5km/5km/10km/20km/40km/80km/160km/240km/320km/640km,
Reading Resolution:1cm,
Number of sampling data:Max 60,000 points,
Group refractive index:1.00000 to 1.9999,
Distance Unit:km,mile,kf,
Measurement of Distance:Show at 8 digits in terms of the relative one-way distance between any two points in two places on the waveform
Vertical axis;
Scale:0.2dB,0.5dB,1.0dB,2.0dB,5.0dB,7.5dB/div,
reading resolutions:0.001dB,
Loss Measurement:5 digits, display 0.001dB step in the one-way maximum loss. View between two points relative one-way translation losses of any in two places on the waveform, the loss per unit length, the connection loss

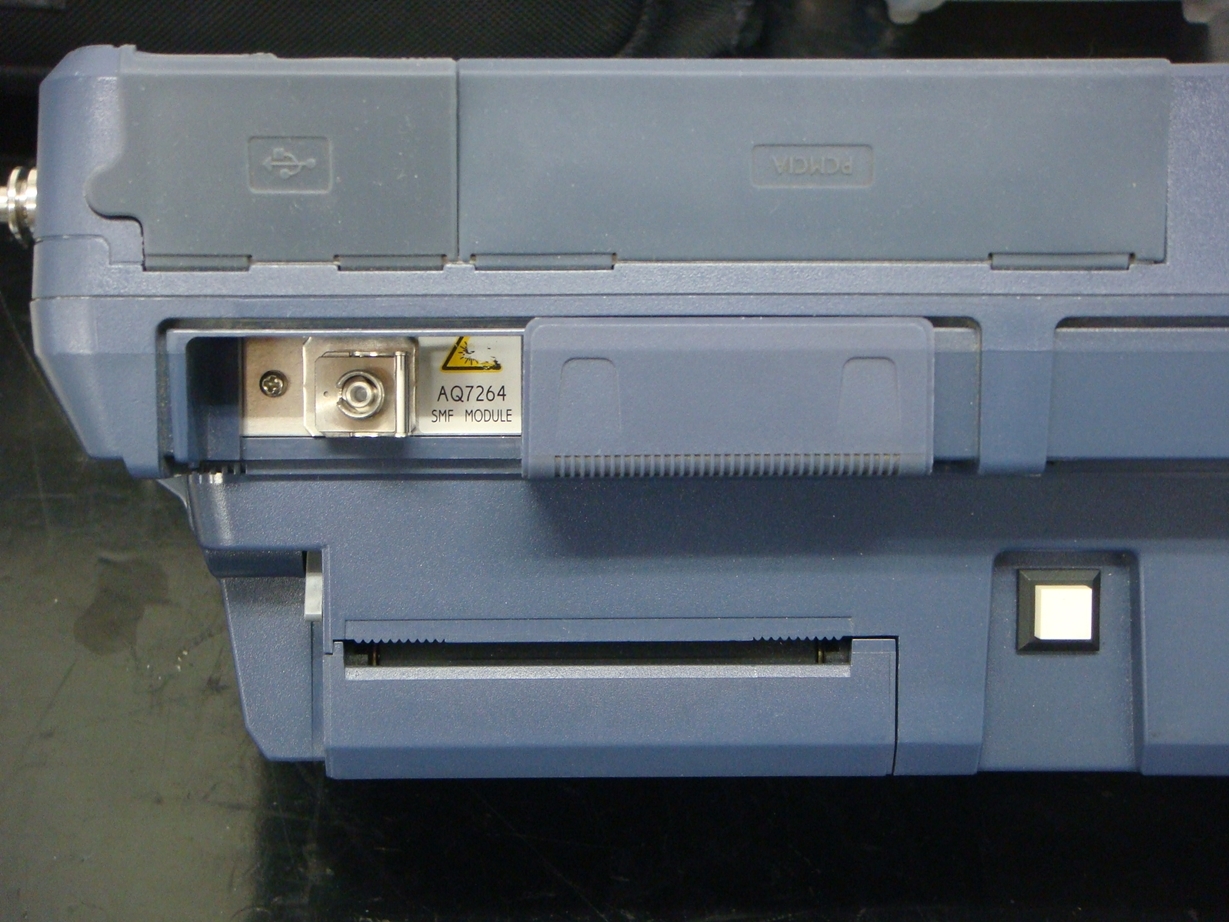

OPT:AQ7264:SMF Module,
Measurement Range:2 to 640km,
Wavelength Range:1.31/1.55um,
Measurement optical fiber:SM(ITU-T G.652),
Sampling resolution:5cm,
Accuracy of length;
Offset Error:+-1,
Scale Error:measurement length*2*10E-5,
Sampling Error:+-1,
Dynamic Range(SNR=1):40@1.31um,38@1.55um,
Dead zone(m):2typ,
Accuracy of Loss measurement(dB/dB):+-0.05,
Display:8.4inchi color TFT(640x640),
Internal Memory:20MB,
Interface:USB 2port,
Power Source:Buttery or AC,
Buttery Life:About 6hours,
Select Language:Japanese or English

Dimensions:299(W)-225(H)-62(D)mm,
Weight:3kg,

Maker Price:JPY1,230,000

付属品

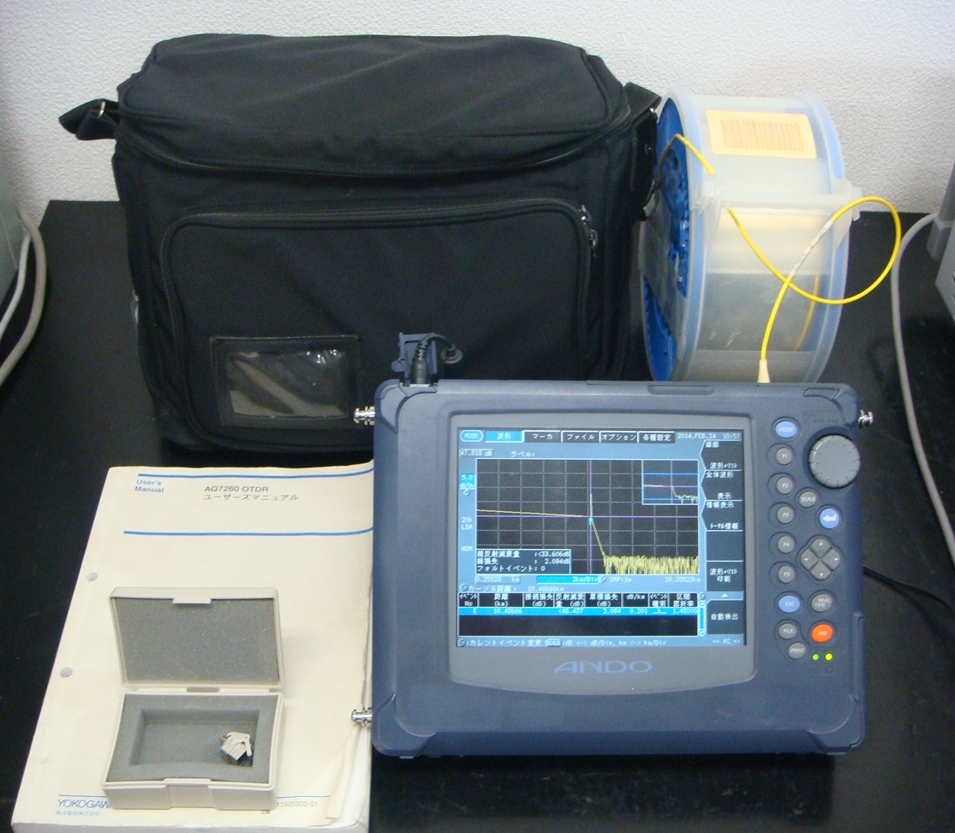

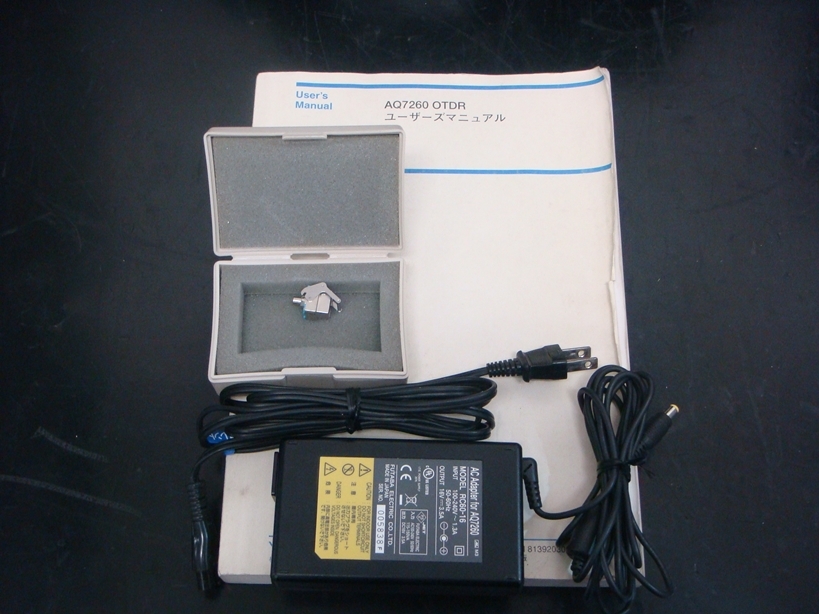

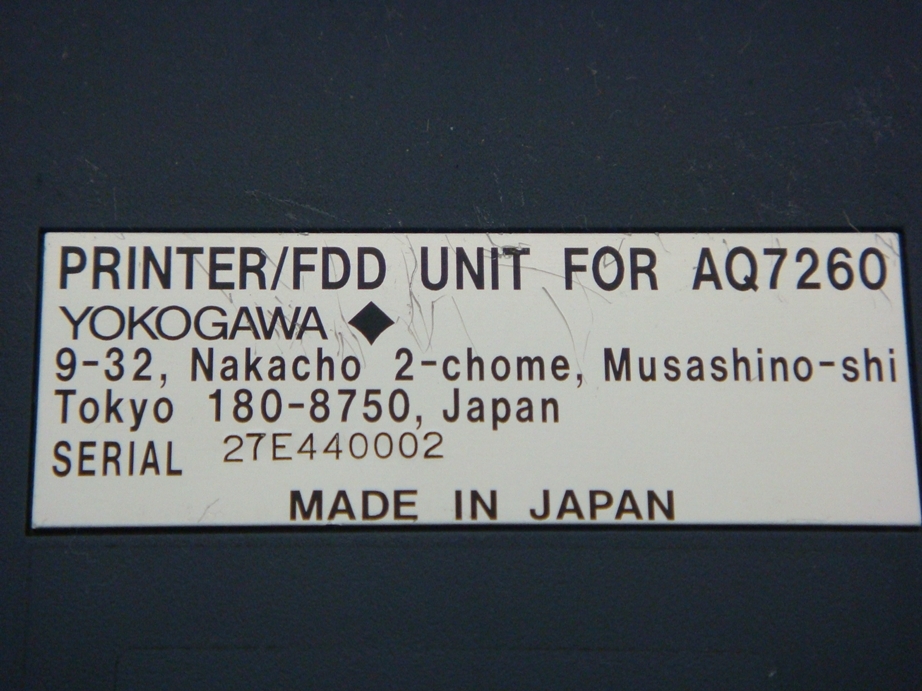

AQ9441:Universal Adaptor(FC/SC),Soft Carrying Case,Paper,Printer,Manual
