Bruel&Kjaer

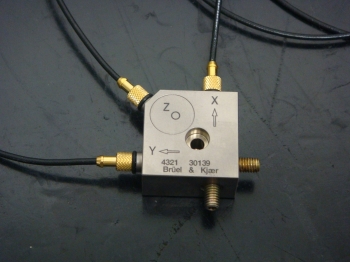

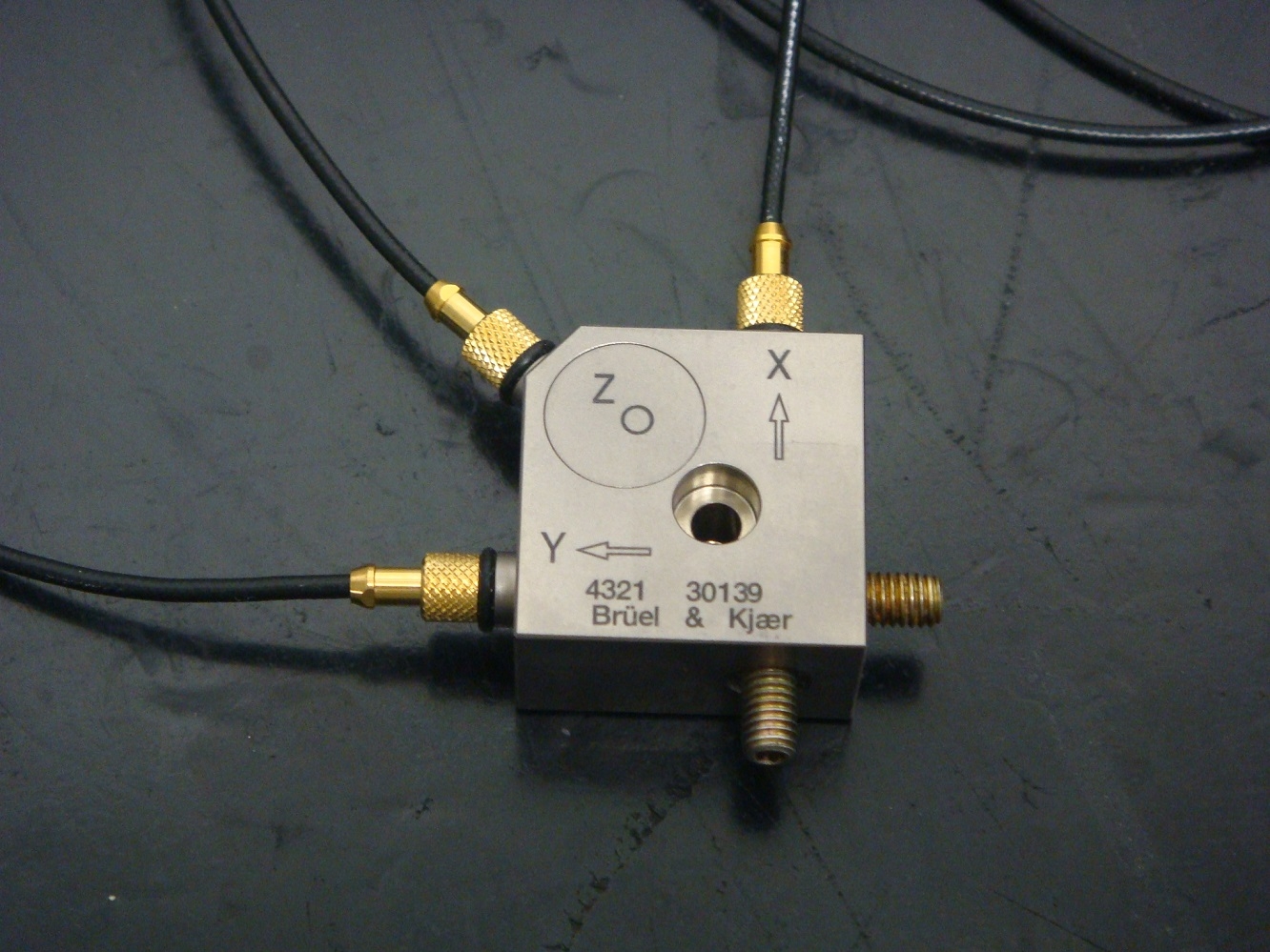

4321 Triaxial piezoelectric charge accelerometer

154,000円(税込)

仕様

•Triaxial
•General purpose accelerometer
•Wide frequency range
•Wide dynamic range
•Large temperature range
•Low base-strain sensitivity

Frequency:0.1 - 12000 Hz
Sensitivity:10 pC/g
Temperature:-24 - 250 ºC
Residual Noise Level in Spec Freq Range(rms):± 0.23mg
Maximum Operational Level (peak):500 g
Maximum Shock Level (± peak):1000 g
Weight:55g
Electrical Connector:10-32 UNF
Mounting:Stud
Accessory Included:AO 0038
Clip/Stud/Screw included:YQ 2960
Output:Charge-PE
Unigain:Yes
Triaxial:Yes
TEDS:No
Dynamic Range
Resonance Frequency:40 kHz

Maker Price:JPY357,000-

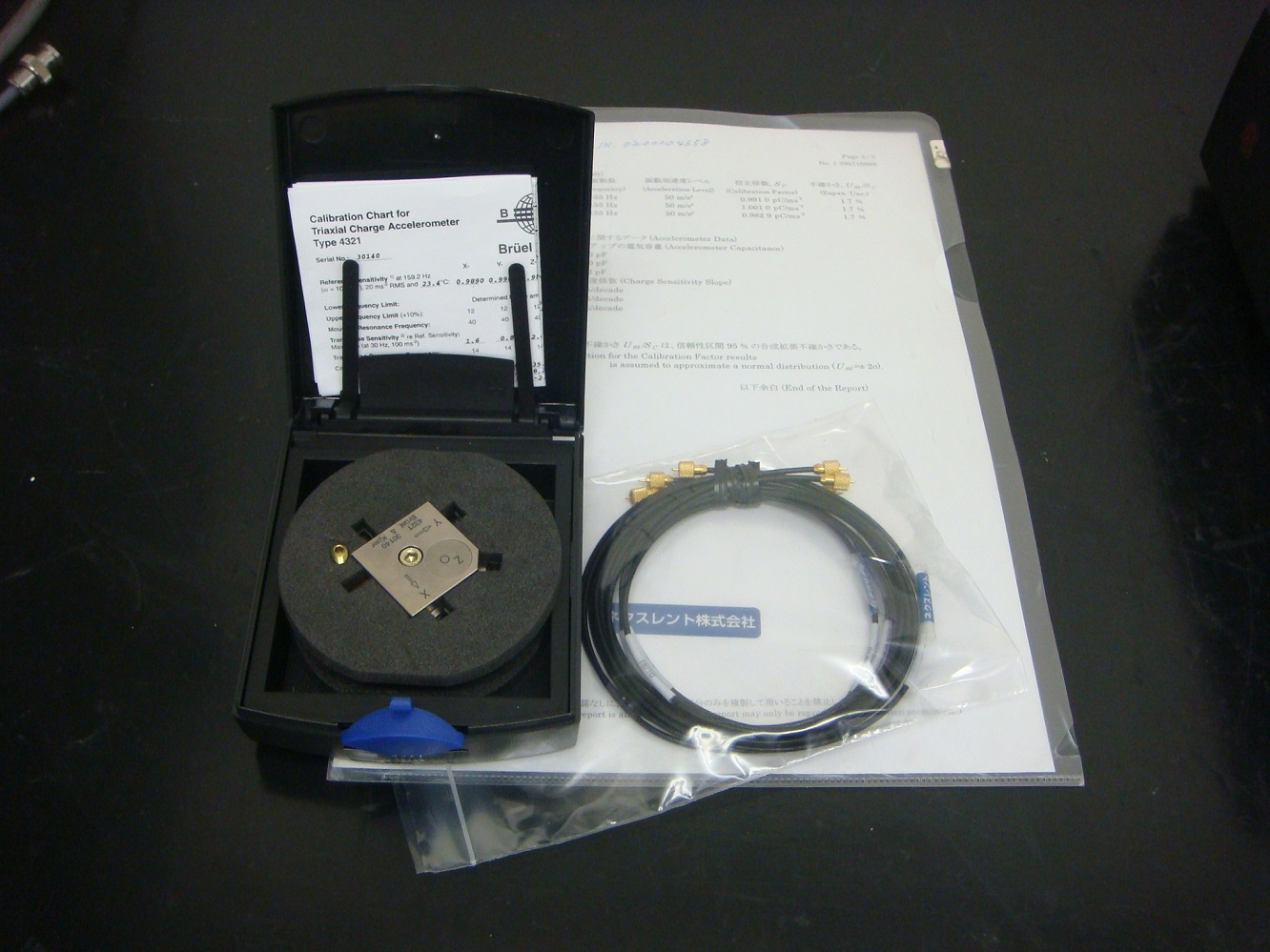

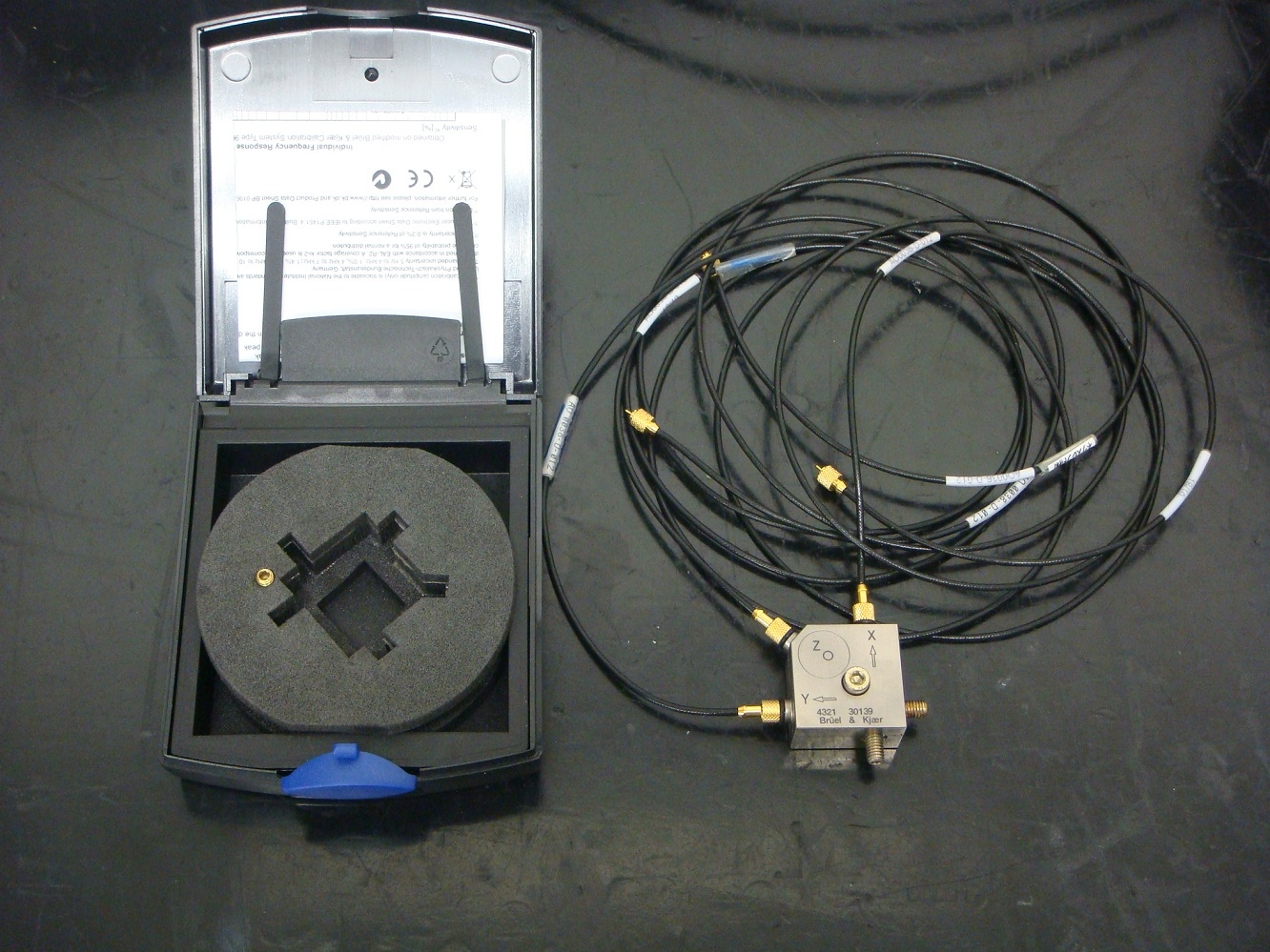

付属品

Chart Graph,Calibration Data,Steel studs(YQ-2960),
Picup Cable(AO 0038-D-012)*3,Case,
