YOKOGAWA

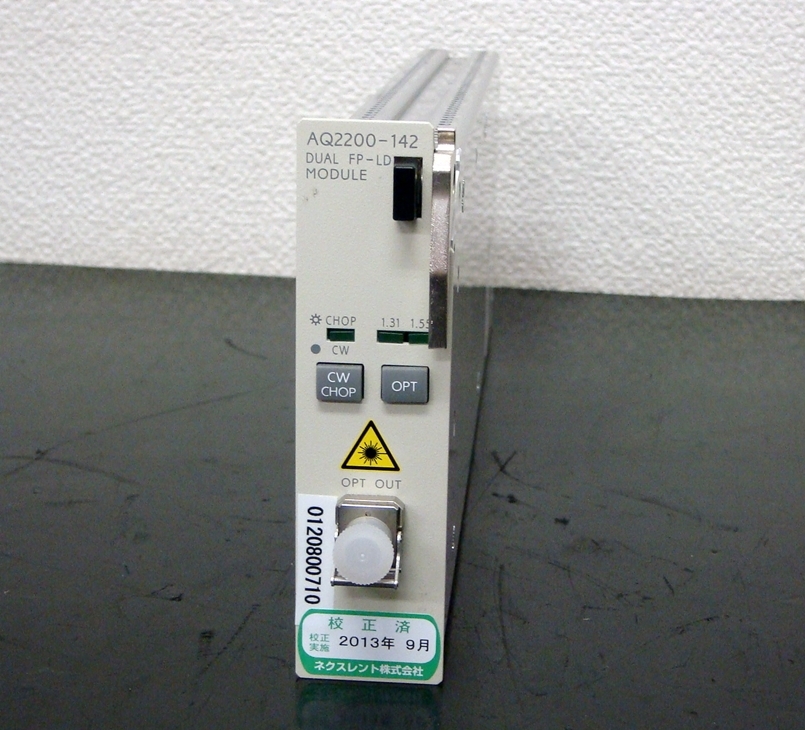

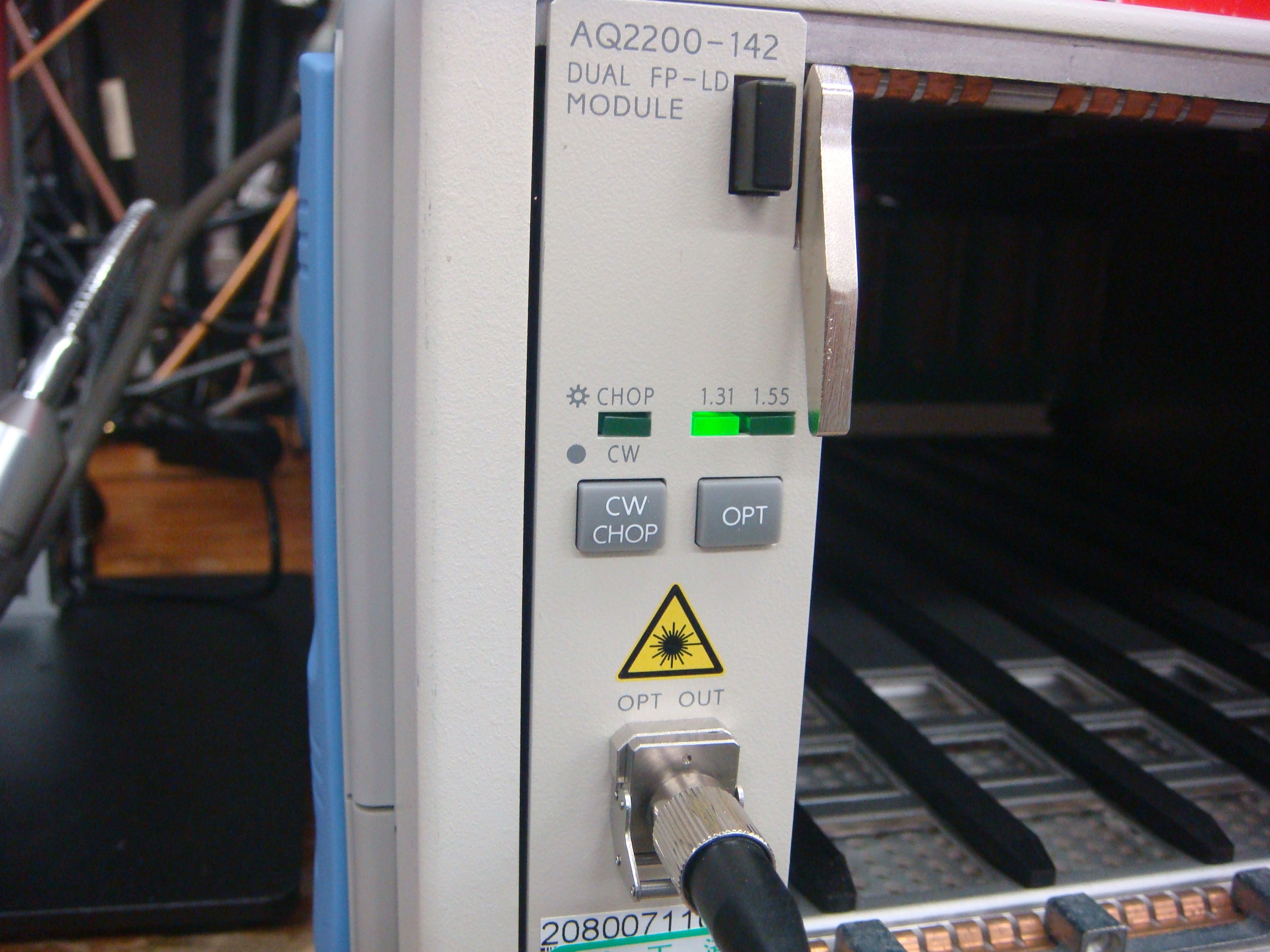

AQ2200-142 1310/1550 FP-LD Module
275,000円(税込)
- 仕様
-
Center Wavelength:1310+-20nm,1550+-20nm,
Compliant optical fiber:SM(ITU-T G.652),
Spectrumwidth:5nm or less(when 1310nm is specified),
10nm or less(when 1550nm is specified),
Optical output level:-1dBm or greater,
Optical Attenuation range:6dB(in 0.01dB steps),
Internal CHOP modulation Frequency:270kHz,1kHz and 2kHz,
Compliant optical connector:AQ9441 universal adapter,
Dimensions:31(W)-117(H)-321(D)mm,Weight:0.95kg,
Safty standard:EN60825-1 class1,
810518903 (AQ2200-142)
Maker Price:JPY620,000-
