YOKOGAWA

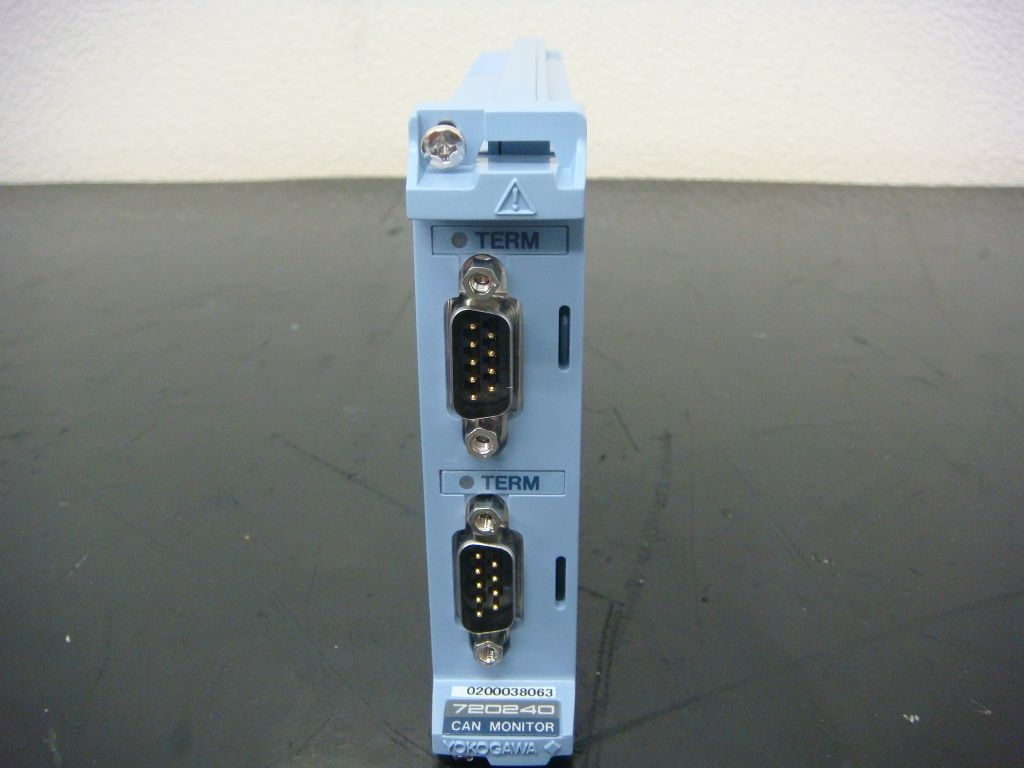

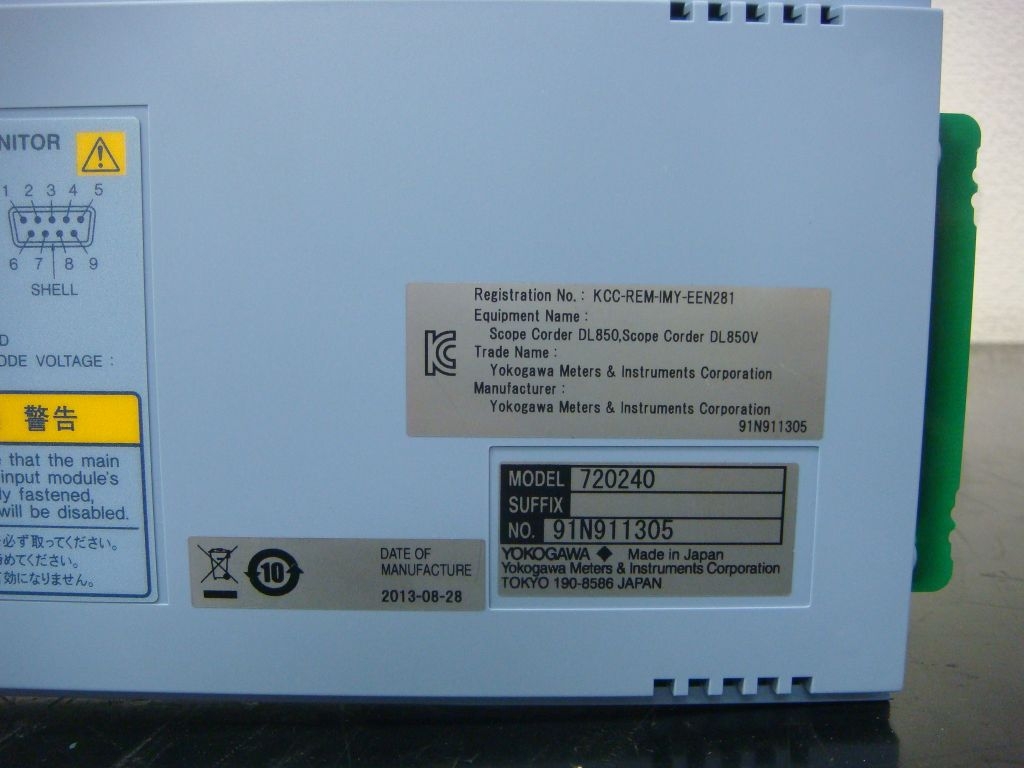

720240 CAN BUS Monitor Module

132,000円(税込)

仕様

Input Ports: 2

Input Type:
Isolated - (across port and main unit, across each port)
Input Connector:D-Sub 9-pin (male)
Input Channels:16-signal/port

Maximum Sample Rate:
100kS/s (16-CH x 5kS/s per port)

Bit Rate:
10k, 20k, 33.3k, 50k, 62.5k, 66.7k, 83.3k, 125k, 250k, 500k, 800k,1Mbps

Supported Protocol:
Physical layer: ISO-11898
(High Speed Communication)
CAN in Automation: CAN2.0B
(Standard & extended massage format)

Terminator:
Built-in, it is switchable On and Off per port.

Endian:
Little or Big selectable

LED Display:
CAN Ch1: TERM on the panel
CAN Ch2: TERM on the panel

Channel Setting:
Message ID (Standard or Extended)
Extraction Position
Bit Length (Max 16-bit)
Select the Endian (little or big)
Convert physical value

Output Function:
Single shot
Specified ID (Data) can be outputted manually.

Allowable Voltage Range:
-3 to 10V

Maximum allowable common mode voltage (1kHz or less)
42 V (DC+ACpeak) (CAT I and CAT II, 30 Vrms)

Maker Price:JPY308,000
Weight:2kg
