NF

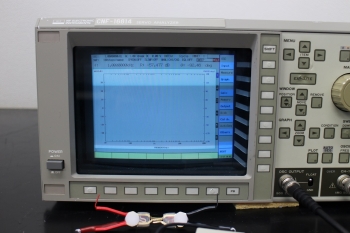

CNF-16814 0.1mHz-2.2MHz Servo Analyzer
418,000円(税込)
- 仕様
-
Frequency range: 0.1mHz-2.2MHz res0.1mHz
Waveform: Sin, Triangle, Square 1mV-10Vp-p
Auto Level Control Stop Phase : 0deg Instant
Input 2ch Auto Range isolation: +- 500V
The maximum input voltage: 300p-p (AC + DC)
Analyzer
Ch1,Ch2,Ch1/Ch2 Ch2/ch1 DC-element delete
Integer :1-9999 0-9999sec Short/Long
Math :+-*/ Diff Integ Open-Close Loop Conv
Equalizing Delay : 0-9999sec 0-9999cycle
Display: Nyquist plot, Bode plot, Nichols plot
Output Plotter(HP-GL) ,RGB 3.5FDD
Playback Auto Scale, Auto sequence
Display: 9.0-inch color CRT
Interface: GPIB
432 × 177 × 550, 23kg
AC90-132 180-264V 200VA
定価350万円
- 付属品
- Power Code
