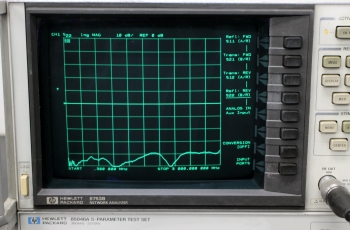

HP
8753B with 85046A 300kHz-3GHz Network Analyzer
275,000円(税込)
- 仕様
-
8753B
Source
Frequency Range:300kHz - 3GHz
Frequency Resolution:1Hz
Power Range:-5 to +20dBm
Impedance:50
Receiver
Frequency Range:300kHz - 3GHz
Input:
A/B 100dB dynamic range >3GHz
A/B 095dB dynamic range 3 to 6GHz
Maximum input level:0dBm
Impedance:50

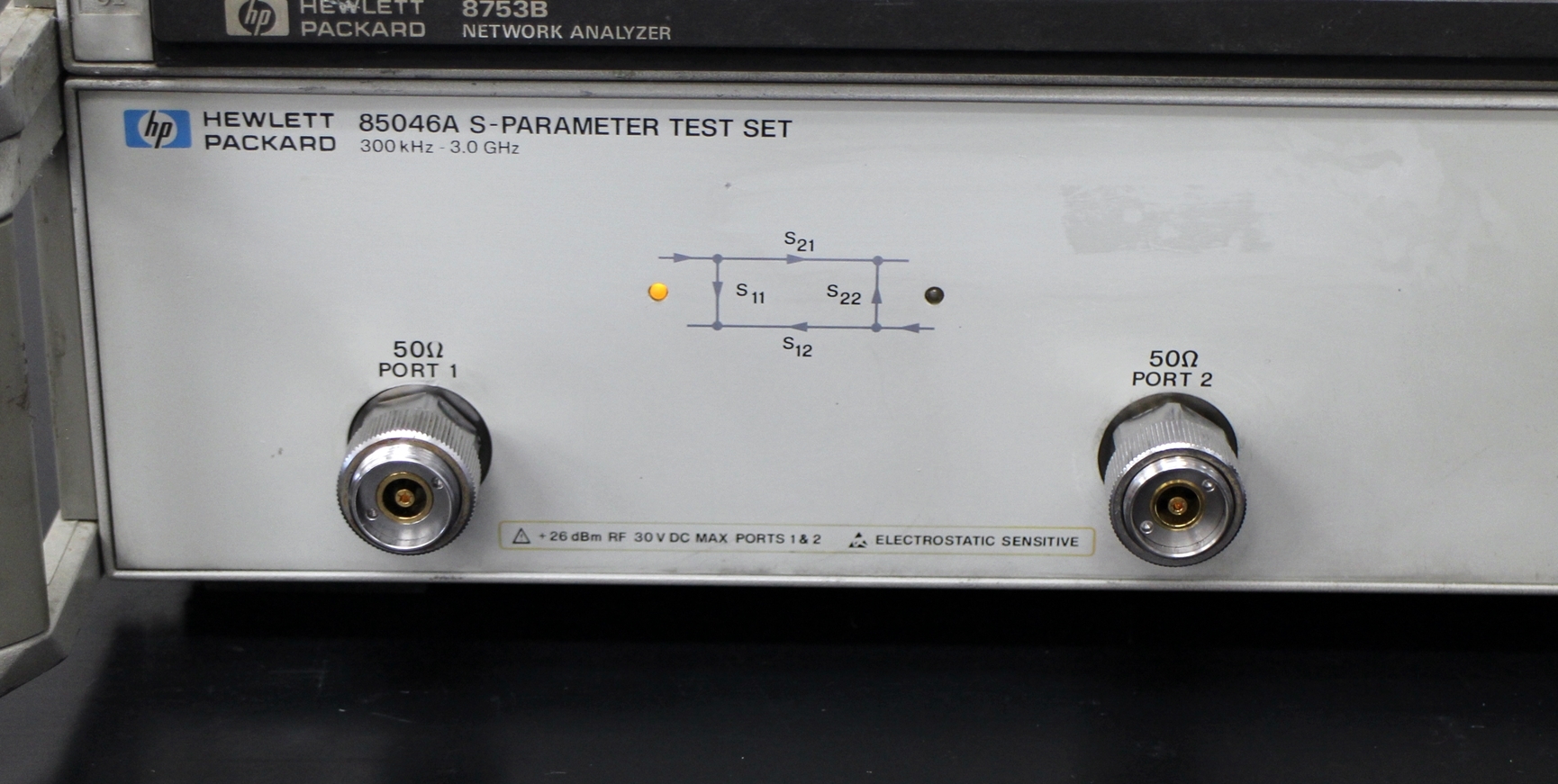

85046A(S-parameter Test)
Frequency Range:300kHz - 3GHz
Directivity Port 1, 2:
≥35 dB: 300 kHz to 1.3 GHz
≥30 dB: 1.3 GHz to 3 GHz
Connectors:
Port 1, 2: 7 mm
RF IN, R, A, B: 50 Ω Type-N(f)
DC bias input: BNC(f)
- 付属品
- N(m)-N(m) cable*4 ,Interface Cable ,Power Code
