ASTRO DESIGN

VG870B 2K 4K Programmable Video Signal Generator

715,000円(税込)

仕様

Maximum 3 interface units can be selected.
RGB 16-bit drawing
China standard monoscope pattern
Subtitle scrolling function
Windows based control and program edit software SP-8870
Terminal commands provided for PC control
1000 programs are saved in a CF card. The internal memory (about 100MB) can save program data, too

VM-1815 LVDS Unit

VM-1824 4K×2K Unit
Digital terminal DVI-I(digital only) Dual Link x 2
Dot clock DVI mode
8bit : 25-165MHz : Single Link 8bit : 50-330MHz : Dual Link
iTMDS mode
8-10bit : 25-165MHz : Single Link 8-10bit : 50-330MHz : Dual Link
12bit : 25-150MHz : Single Link 12bit : 50-300MHz : Dual Link
Multi ch mode
10-16bit : 25-165MHz : Dual Link 10-16bit : 50-330MHz : Quad Link
4K2K mode
FullHD 240Hz 8-12bit : 297-660MHz : Quad Link
Timing setting Cross split mode : 4-dot, 2-line setting
Vertical 4-split mode : 8-dot, 1-line setting
Video format RGB / YCbCr 4:4:4 E-EDID Ver1.3 (DDC2B)

VM-1825 V-by-One HS Unit
Digital interface 2CH(1CH supports 4-line)
MDR26pin connector
Dot clock Normal mode 8-10bit : 20-75MHz(1Line)
8-10bit : 40-150MHz(2Line) 8-10bit : 80-300MHz(4Line)
4K2K mode 8-10bit : 297-600MHz(8Line)
Video format RGB / YCbCr 4:4:4

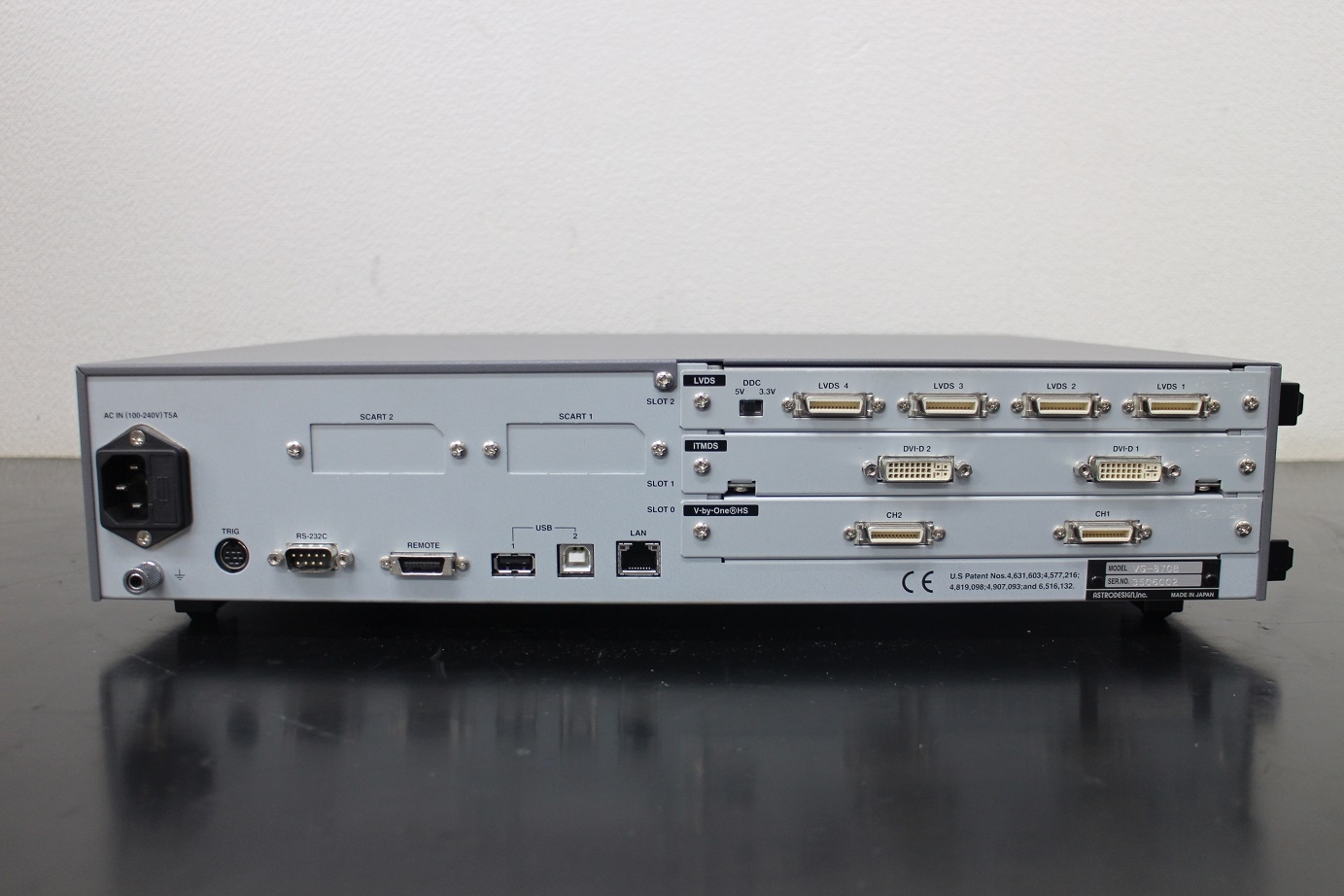

Unit VM1815:LVDS，VM1824:4K*2K（Dual　Link）VM1825:V−by−One HS（Next Generation Video Interface）
ConverterBox:IA−1540X2
Option :VM1824/15/25
定価300万円

付属品

J−Manual,TAA2900＊2(AC Adapter),IA−1540(DVI−iTMDS to LVDS conversion adapter),Flash card(512MB),CD-ROM(SP-8870 software ver9.40/Manual)
