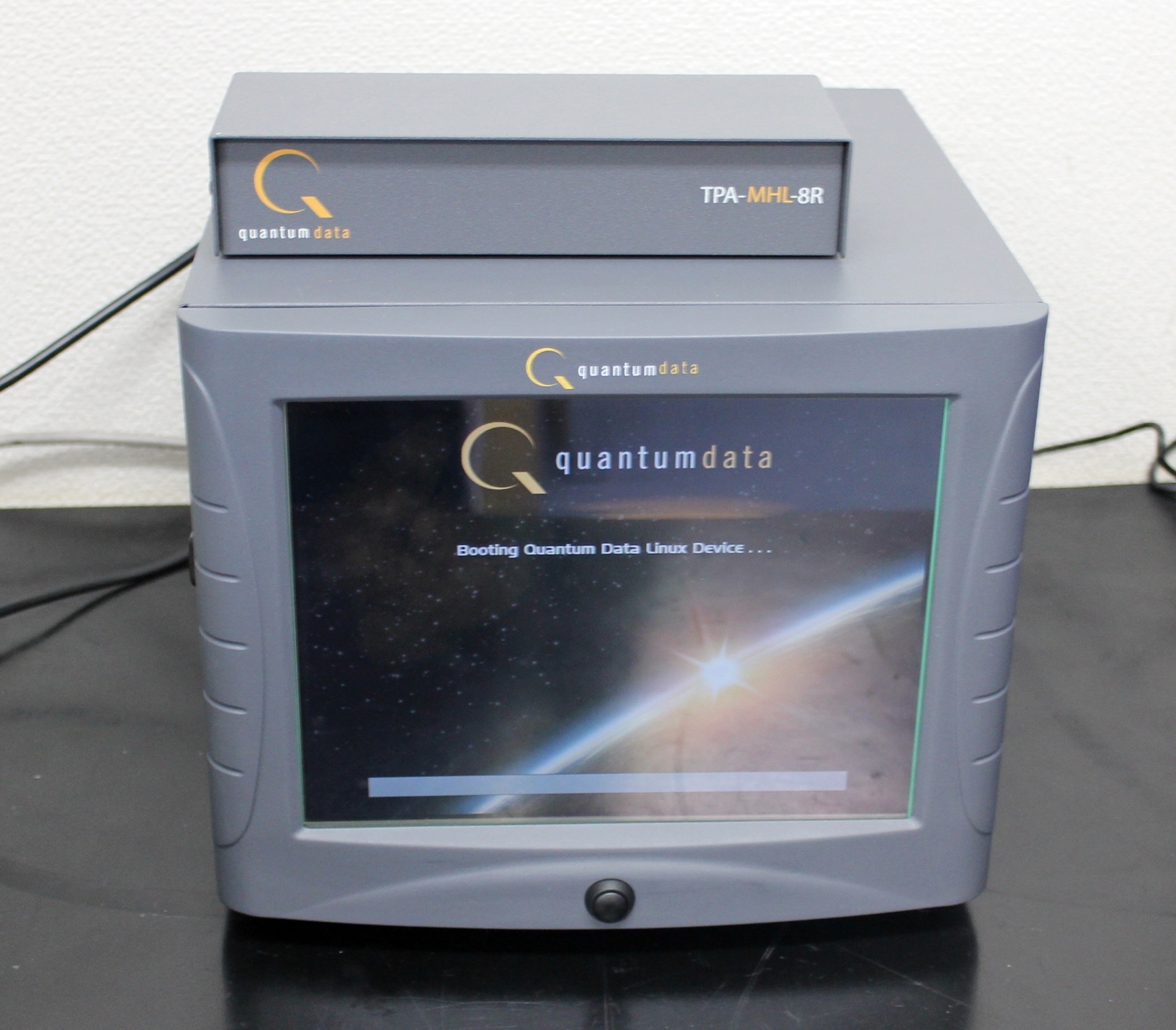

Quantum Data

980 HDMI MHL Protocol Scope

770,000円(税込)

仕様

980 Gen3 system
TMDS clock and pixel clock up to 297MHz

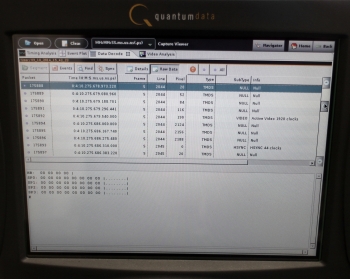

Video:Timing parameters,Pixel values
Protocol Data:Guard band,Preamble

Data Islands, including:
Infoframes (AVI, Audio, Source Product Descriptor, etc.)
General Control Packet (GCP)
Audio Clock Regeneration (ACR)
Audio Sample Packet Header including Channel Status Blocks

DDC,C-Bus(MHL)transactions,including:HDCP,EDID

Option
TRA-MHL-8R:MHL Interface
Q95-00060:Pass Through
Q95-00073:Encrypted Link Analyzer
Q95-00075:MHL Sink Compliance Test
Q95-00076:MHL Source Compliance Test

Licensed Feature
Licensed:01[PASSTHROUGH]
Licensed:04[ENCRYPTED LINK ANALYZER]
Licensed:07[MHL CST2.0/1.2 SYSTEM/PROTOCOL COMPLIANCE TEST FOR SINKD/DONGLES]
Licensed:08[MHL CST2.0/1.2 SYSTEM/PROTOCOL COMPLIANCE TEST FOR SOURCES]
Licensed:11[HDMIACA]

Maker Price JPY2,900,000

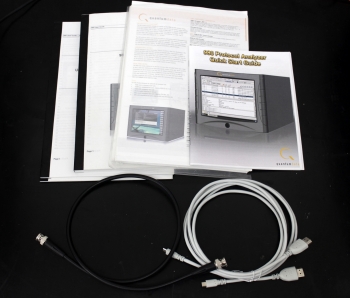

付属品

HDMI cable,BNC cable,MHL cable*2,Adapter,Manuals,Case
