Agilent

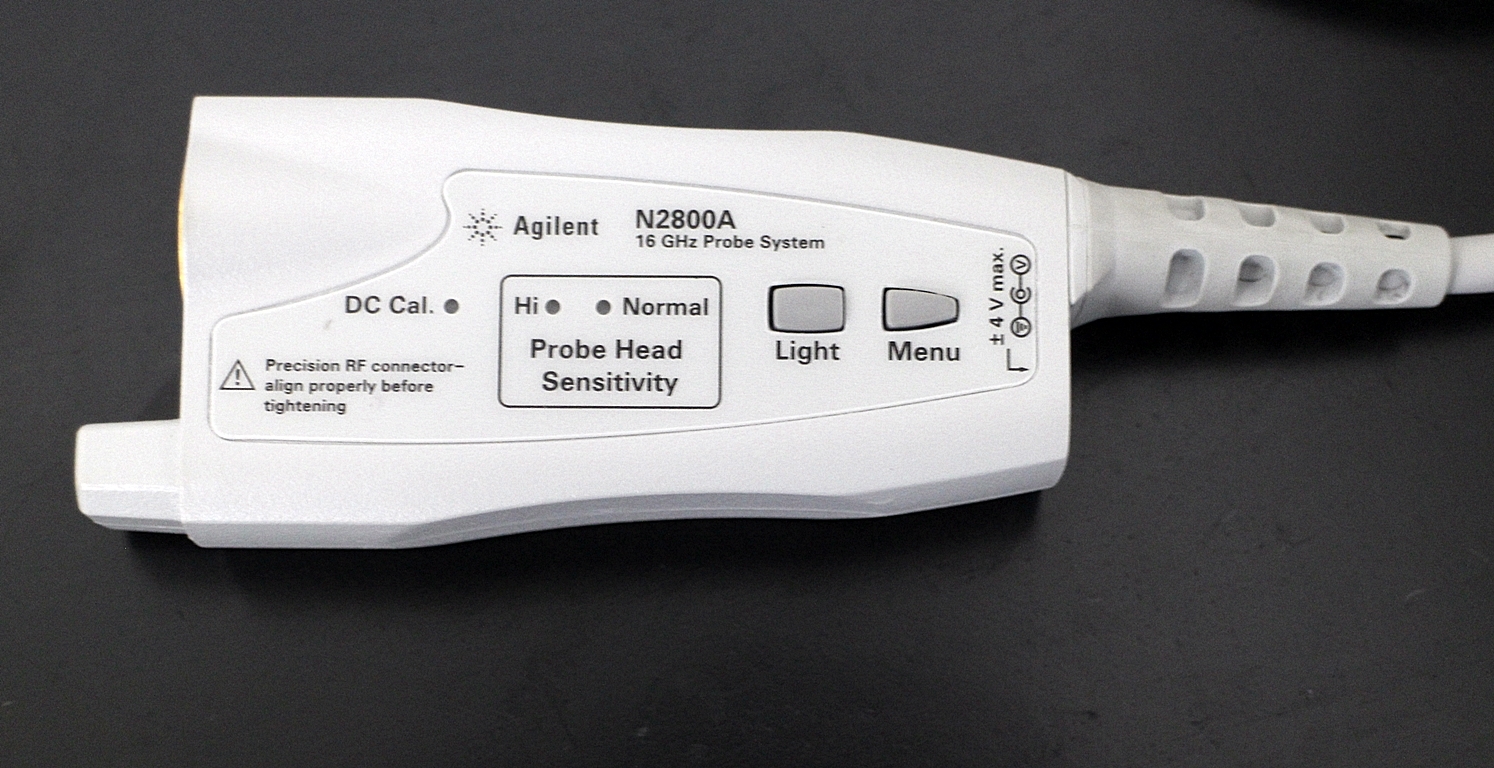

N2800A 16 GHz InfiniiMax III

550,000円(税込)

仕様

Bandwidth:
•16 GHz
•Tr = 27.1 psec

Range:
•DC attenuation ratio : 6:1 (3:1 with 200 Ω ZIF tip)
•Input voltage range : 1.6 Vpp (0.8 Vpp with 200 Ω ZIF tip)
•Input common mode range : ±12 V at DC to 250 Hz, ±2.5 V at >250 Hz (±6 V at DC to 250 Hz, ±1.25 V at >250 Hz with 200 Ω ZIF tip)
•Offset range : ±16 V when probing a single-ended signal

Input Impedance:
•DC input resistance : R diff = 100 kΩ ±2%, R se = 50 kΩ ±2%
•Input resistance @ >10 kHz : R diff = 1 kΩ, R se = 500 Ω
•Input capacitance : C diff = 32 fF, C se = 48 fF (with ZIF probe head)

Connectivity:
•N5445A InfiniiMax III browser
•N5439A InfiniiMax III ZIF probe head
•N5444A InfiniiMax III 2.92 mm/3.5 mm/SMA probe head
•N5441A InfiniiMax III solder-in probe head

付属品

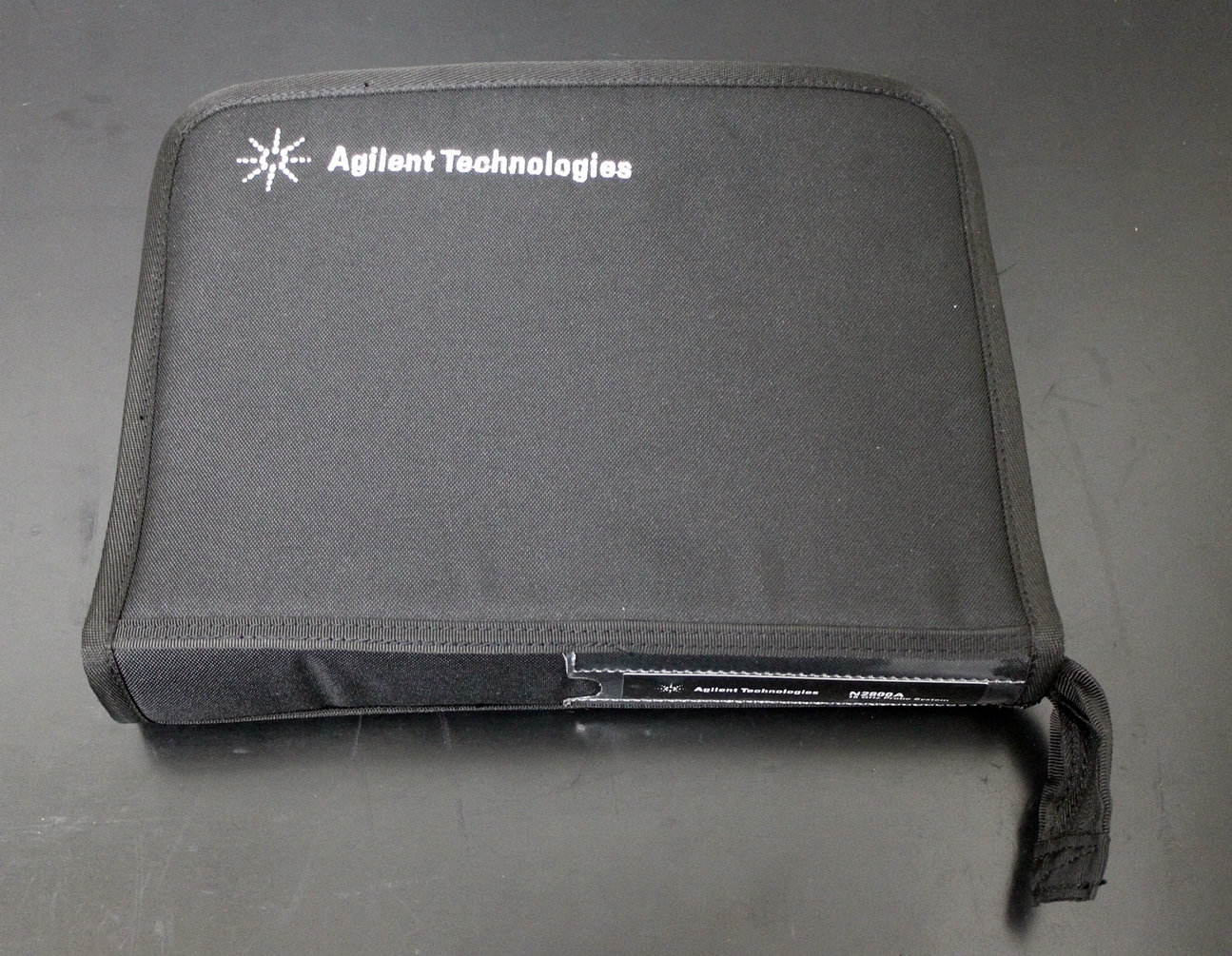

Case,Cap,CDROM
