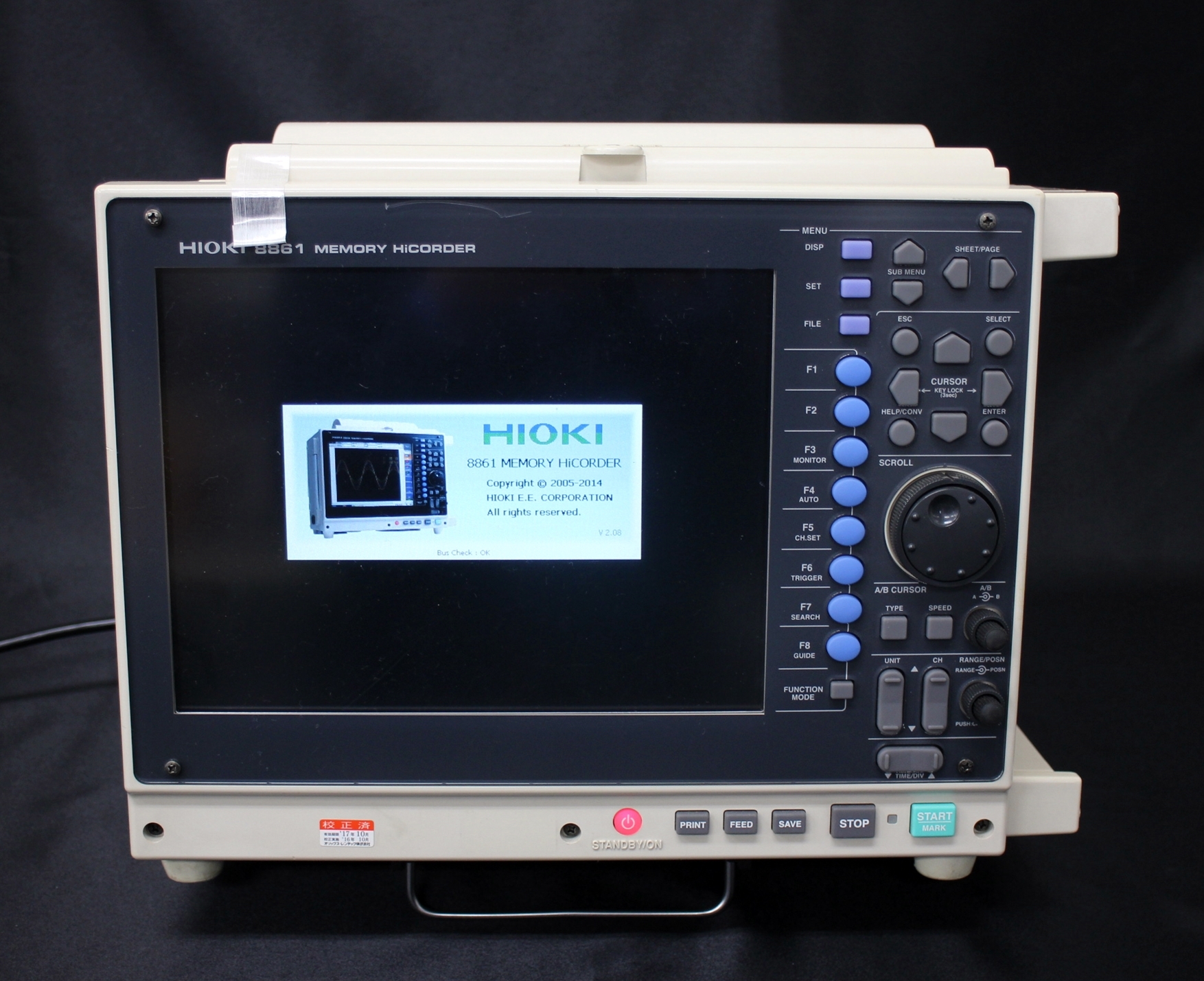

HIOKI

8861 16ch 128MW MEMORY HiCORDER

385,000円(税込)

仕様

アナログ１６ｃｈ・ロジック16ch（プローブ要），入力：5mV〜20V／DIV
メモリ：1024Mword，サンプル：20Ms／s，ＰＣカードスロット×２，

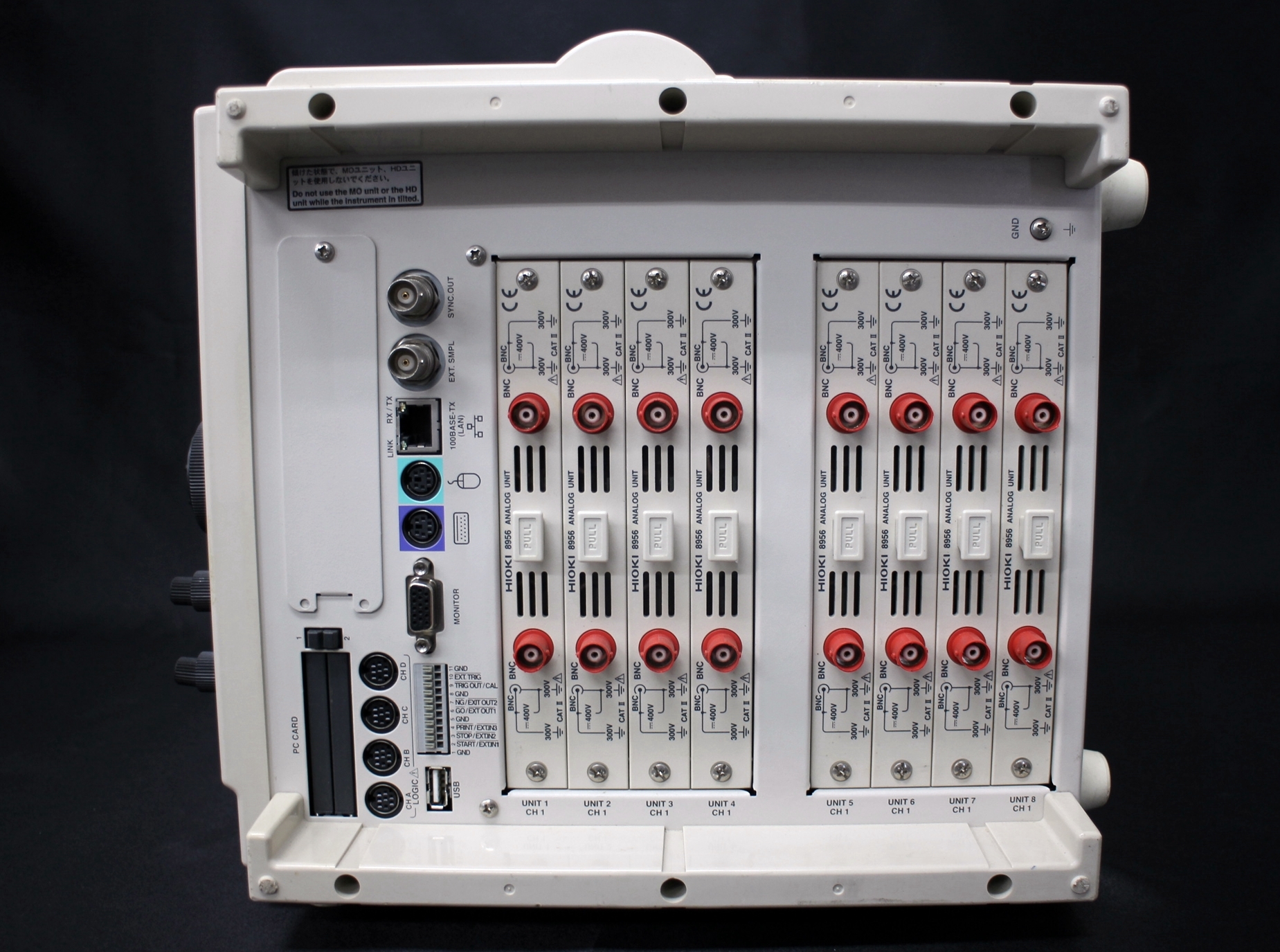

Ｏｐ．8956（アナログユニット）ｘ8，9718（ＨＤユニット），9715−02（５１２Ｍワードメモリ）×２，9198（接続コード）×１６，8995（Ａ４プリンタユニット）

Number of input Units:Max. 8 units
Number of channels:Max. 32 analog channels (max. 128 channels with scanner unit) + 16 logic channels (standard configuration)
Measurement ranges(20 div full-scale):
5mV to 20V/div, 12 ranges, (using the 8956), resolution : 1/100 of range
Max. allowable input:DC 400V (using the 8956)
Frequency characteristics:DC to 10MHz (using the 8956)
Power consumption:100 to 240 V AC (50/60 Hz) (280 VA max. printer not used)
12 V DC (use the DC POWER UNIT 9684 : option, factory installation only)
Dimensions, mass:330 mm (12.99 in) W × 250 mm (9.84 in) H × 284.5 mm (11.20 in) D, 19.5 kg (370.4 oz) (printer not installed)
Measurement functions:
MEM (high-speed recording)
REC (real-time recording)
REC & MEM (realtime recording + high-speed recording) FFT (frequency analysis)
Real-time Save (records directly to storage media)
Data storage media:PC Card Type II slot × 2, Hard disk drive (option) × 1
Display:10.4 inch TFT color LCD (SVGA, 800 × 600 dots)
External interfaces:GP-IB (PC card), USB2.0 (series A receptacle 3 ports), LAN (HTTP/FTP/ Send mail or other), Monitor output (15-pin D-sub, SVGA output)
定価209.2万円

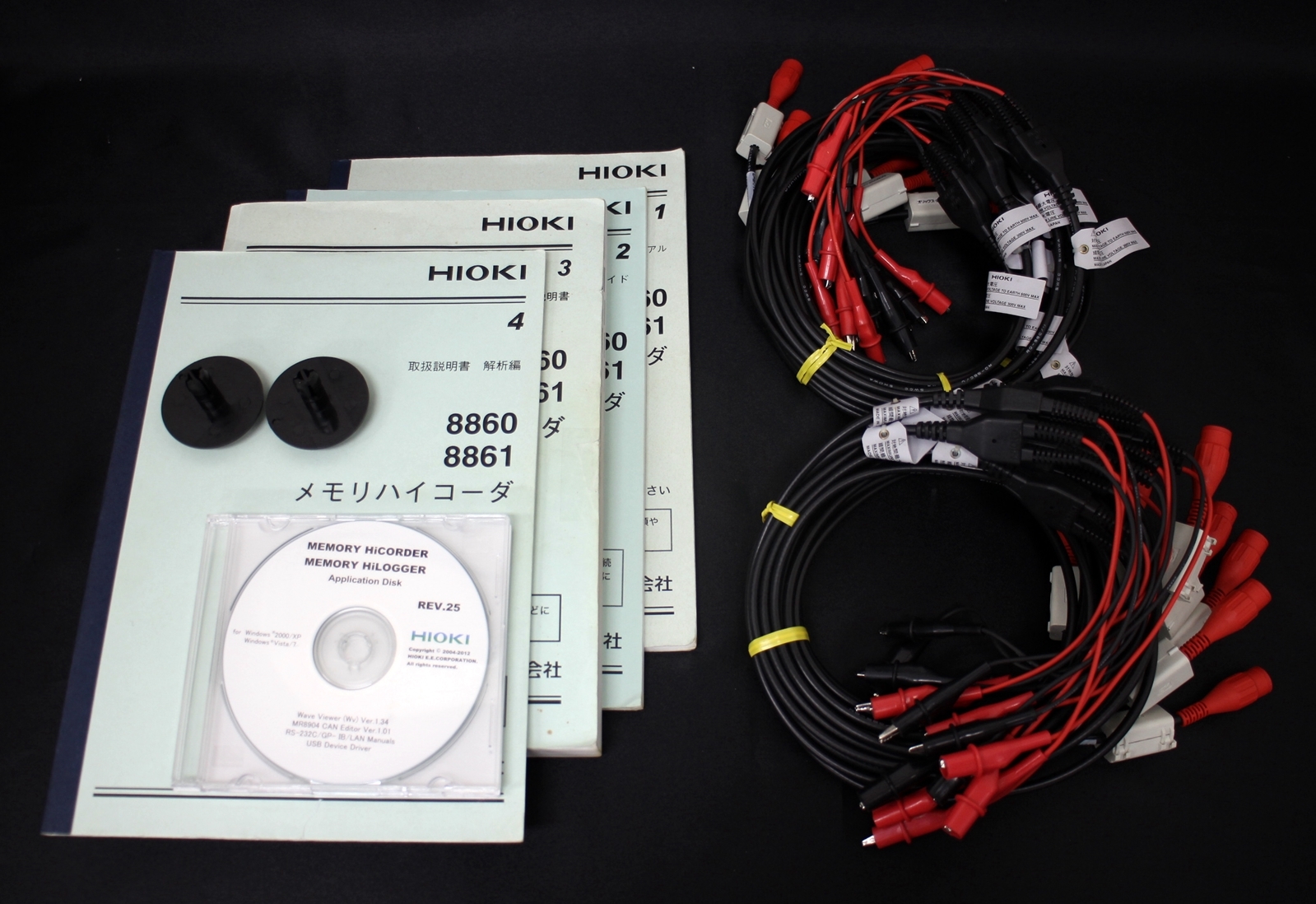

付属品

J-Manual*4,CD-ROM(Application Disk),Power Code,
Input Cable(9198)*16,
