YOKOGAWA

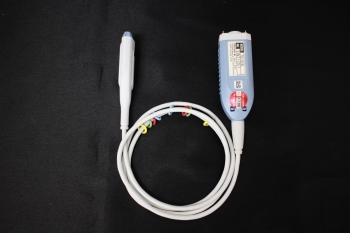

701924(PBDH1000) 1GHz differential probe for DL series

154,000円(税込)

仕様

Frequency: DC-1 GHz
Damping ratio: (50: 1)
Maximum differential input voltage:±25 V
Length: 1.2 m
Connector Type: BNC
Yokogawa Interface
Input Resistance: 1MΩ (Ground-level resistance from each input terminal)
Input Capacitance: 1.1 pF (Ground-referenced capacitance from each input terminal)
Differential Input Resistance: 2MΩ
Differential Input Capacitance: 0.6pF
Max Operating Input Voltage: +/-35V
Max Differential Input Voltage: +/-25V
NMax on-Destructive Maximum Input Voltage: +/- 35V (DC + ACpeak, continuous)

Maker price JPY364,000

付属品

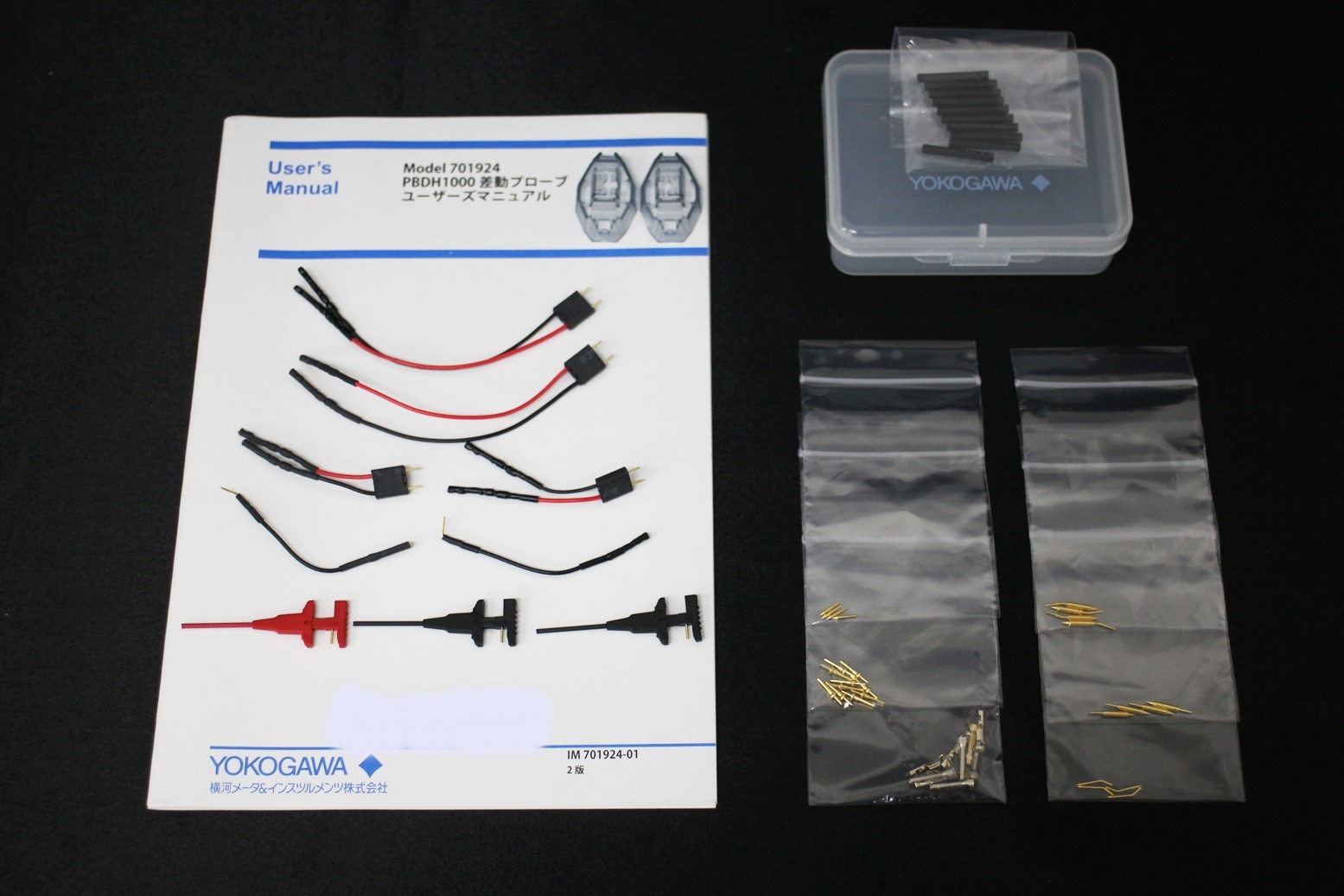

Pair leads, Micro-clips, GND lead, Contact tube, Pin with flange, pins, manual,case
