Keyence

ML-G9300+9310 High Speed, High power CO2 Laser Marker

990,000円(税込)

仕様

Test print movie

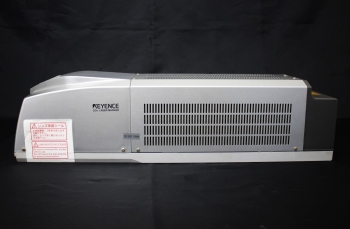

Marking unit:ML-G9310

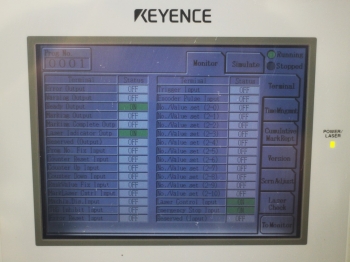

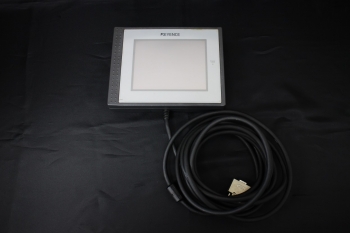

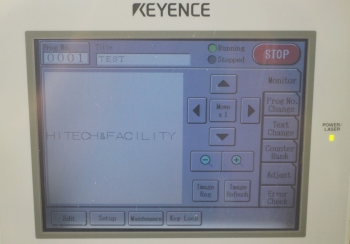

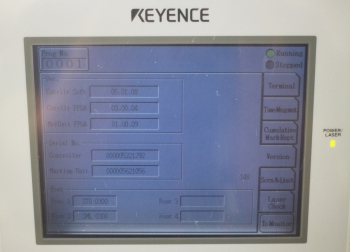

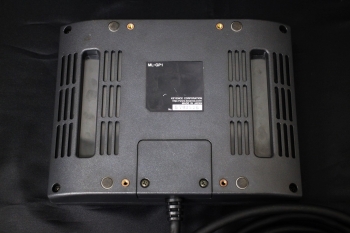

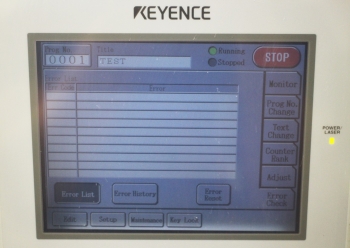

Console:MC-P1

Marking laser
CO2 laser:Class IV Laser Product (FDA(CDRH) Part 1040.10), Wavelength: 0.413 Mil 10.6 μm)
Average output:30W

Marking area:4.33" x 4.33" 110 x 110 mm
Working distance:8.19" ±0.08" 208 ±2 mm
Marking resolution:0.078 Mil 2 μm
Scan speed:12,000 mm/s
Line speed:240 m/min

Marking conditions
Character layout:Straight line, diagonal line, arc, horizontal writing
Marking style:Stationary marking, movement marking

Character size
Character height:0.02" to 4.33" 0.5 to 110 mm
Character width:0.02" to 4.33" 0.5 to 110 mm
Character size unit:0.00004" 0.001 mm

Supply voltage:100 to 120, 200 to 240 VAC ±10% (50/60 Hz) 13 A max.
Weight:

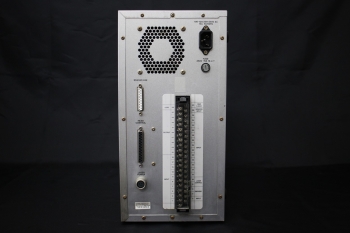

Controller 10kg
Marking unit 13.3kg
Console 1.4kg

付属品

Console,Cable*2
