HP

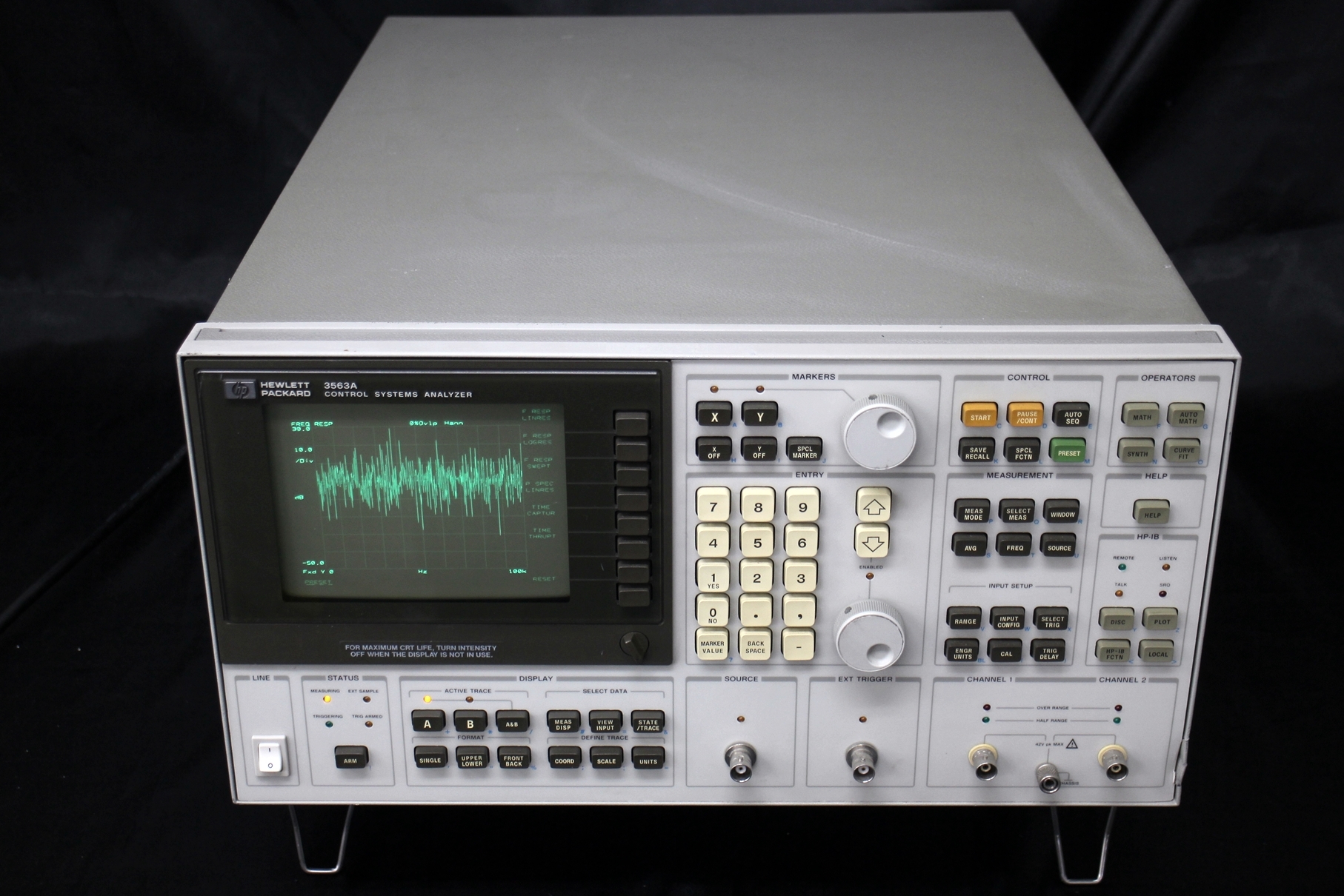

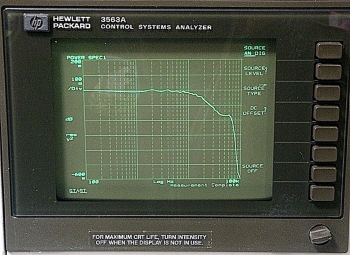

3563A Control System FFT Analyzer
198,000円(税込)
- 仕様
-

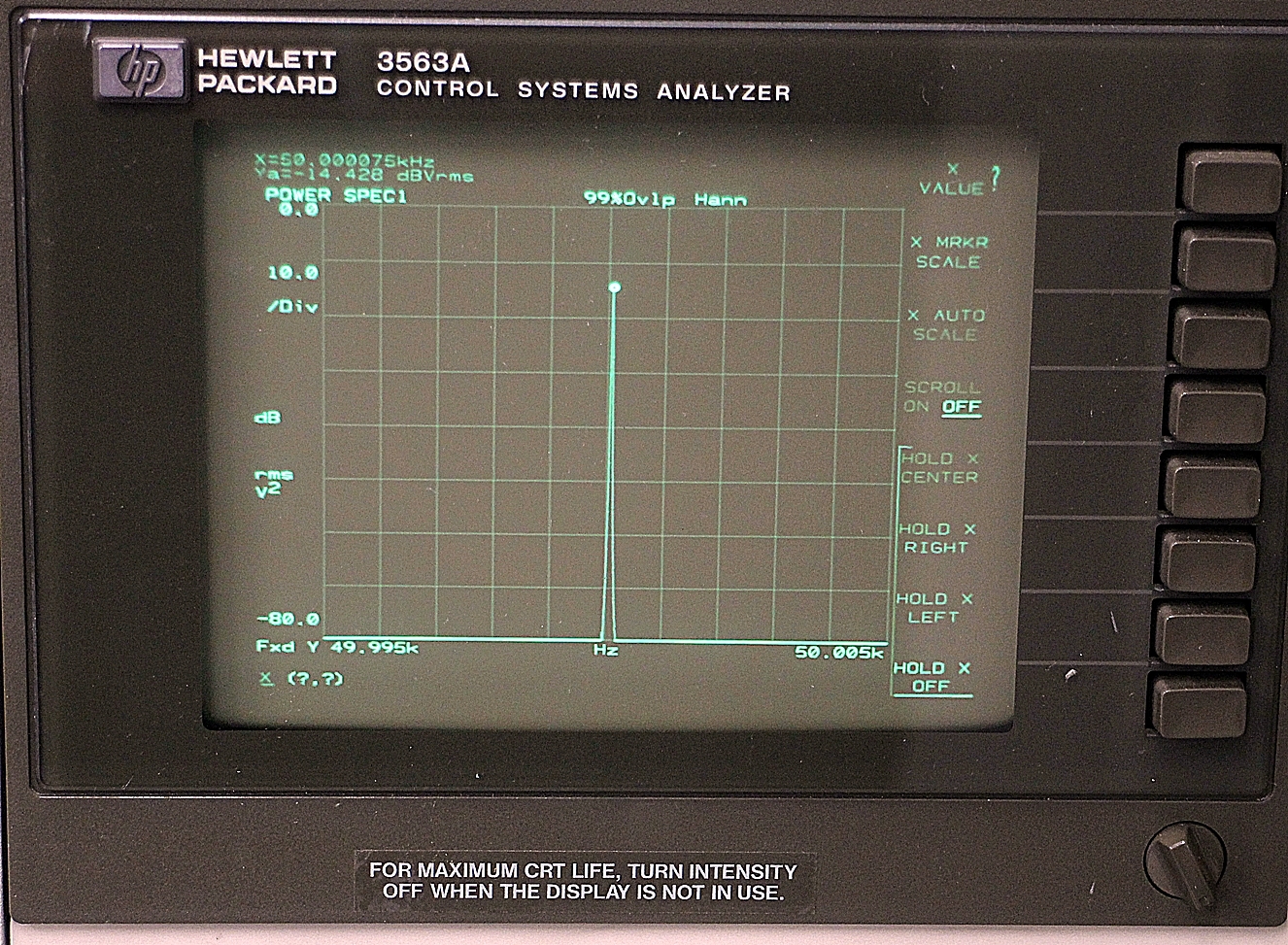

FFT Frequency 64uHz-100KHz 2ch Span 10mHz-100KHz
Window:Flat,Hamming,Uniform,Force,Exp,UserDefine Amplitude:acc0.15dB Noise<-126dBV(-134dBV/SqHz)DynamicRange80dB

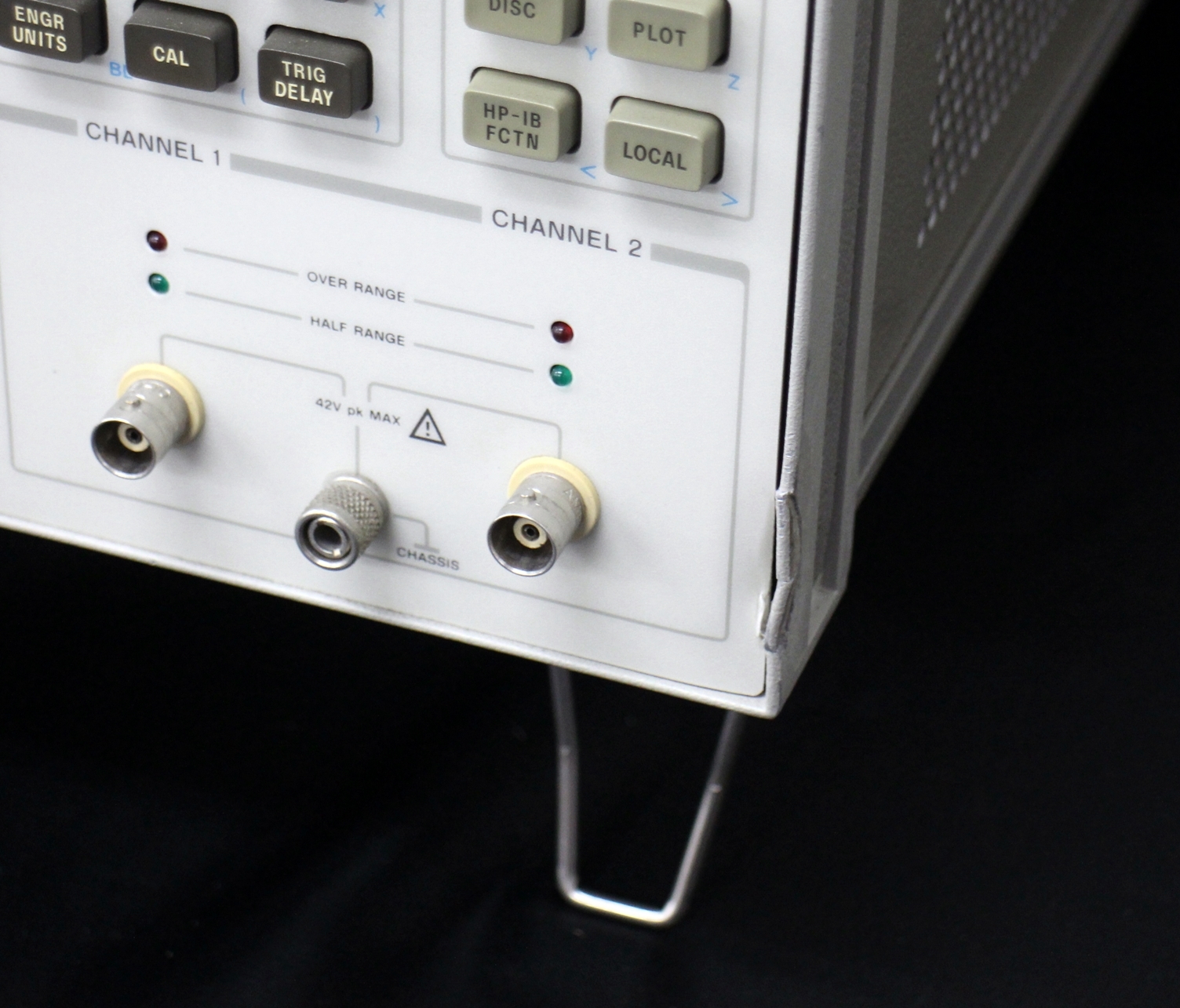

Input Analog 1Mohms<100pF AC/DC Cross-140dB CMRR80dB
SiganlSource:RandomNoise,BurstRandom,SinCharp,BurstCharp,FixSin,SweptSin 50ohms 10Vp-p offset10V
DigitalInput:16bit Data 8qualifiyer,Trigger,Clock
DigitalSource:TTL 16bit Max256kHz
Dist<-55dB

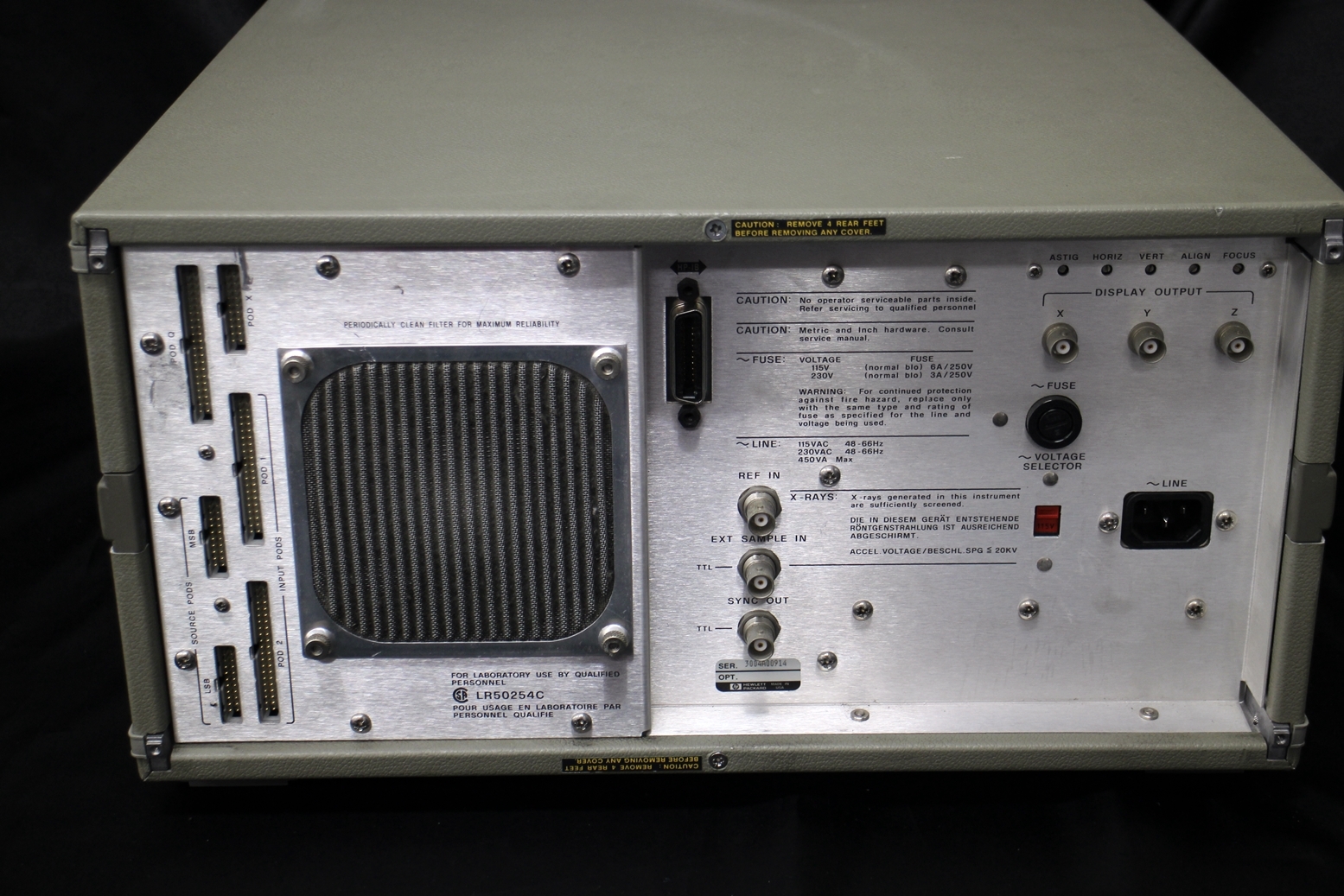

GP-IB HP-GL 450VA 222H426W578D 27Kg
