YOKOGAWA

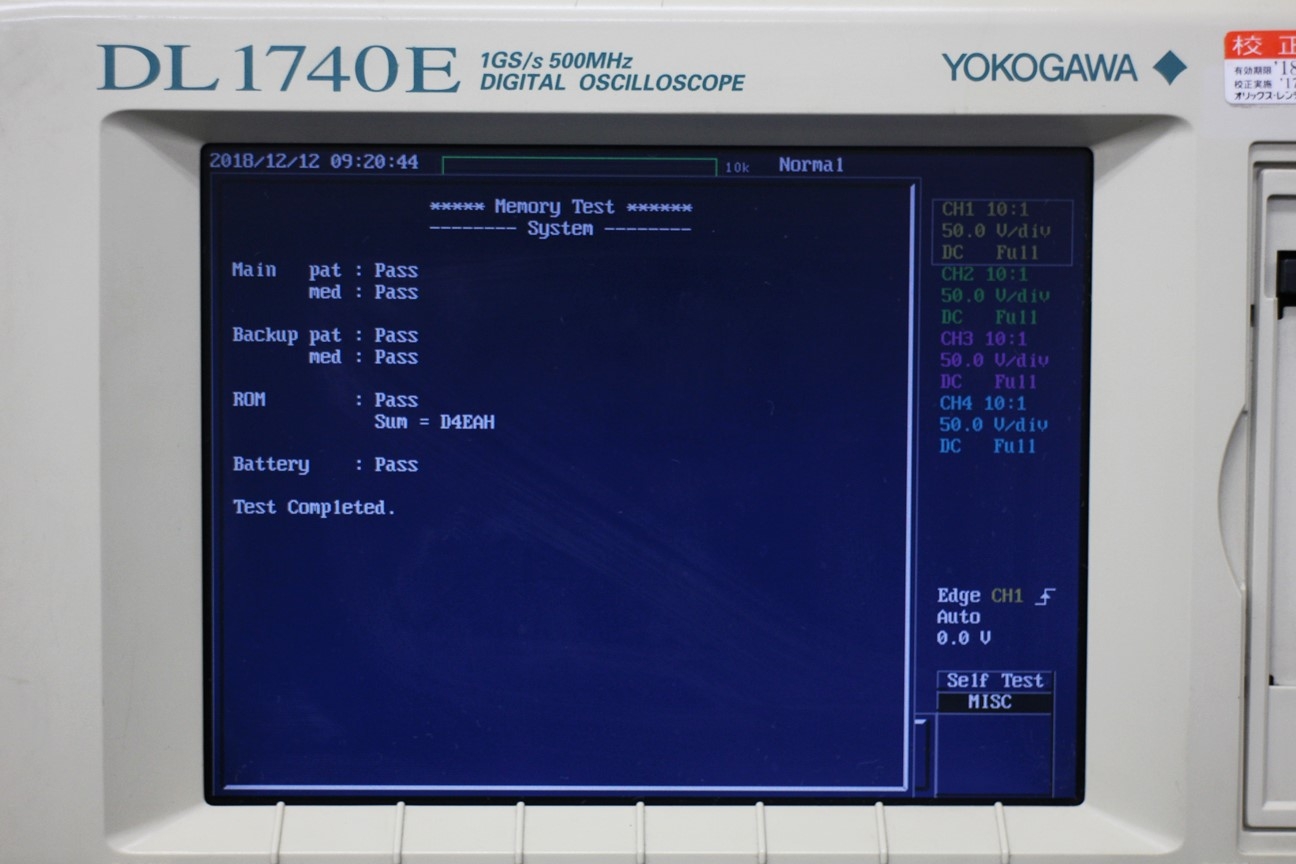

DL1740E 500MHz 4ch 2MW Digital Oscilloscope

275,000円(税込)

仕様

Rear part resin cracking(red circle)!!

Frequency range:500MHz
Number of input channels：4(CH1-CH4)
Input connector ：BNC connector
Input impedance ：1 MΩ ±1.0%, approx. 20 pF
50 Ω±1.0% (VSWR1.4 or less (DC-500 MHz))
A/D conversion resolution： 8 bit (24 LSB/div)
Maximum record length：
When interleave is ON: 2 MW/CH
When interleave mode is OFF: 1 MW/CH

Display 6.4" color TFT LCD monitor

Acquisition and Display
Record length：Select from 1 kWord, 10 kWord, 50 kWord, 100 kWord, 250 kWord, 500 kWord, 1
MWord, 2 MWord

Built-in Storage
• Floppy Disk Drive：Size 3.5 inch/Capacity 1.44MB
• PC Card Interface：Number of slots 1
Supported cards Flash ATA card (PC card TYPE II)
・USB Storage

Computer Interface
GP-IB/USB/

701730-M-J3/B5/P4/C10/F5
J3:PC card interface1
B5:Built-in printer2
P4:Probe power, 4 outputs
C10:Ethernet interface
F5:I2C + SPI Bus Signal Analysis Function

Rated supply voltage：100 to 120 VAC/220 to 240 VAC

Maker Price:JPY1,380,000

付属品

Manual*3,CD-R(Users Manual),500MHz Probe(700988)*4,Front cover,Power Cord
