YOKOGAWA
DL1740 DC-500MHz 4ch 1MW Digital Oscilloscope
165,000円(税込)
- 仕様
-

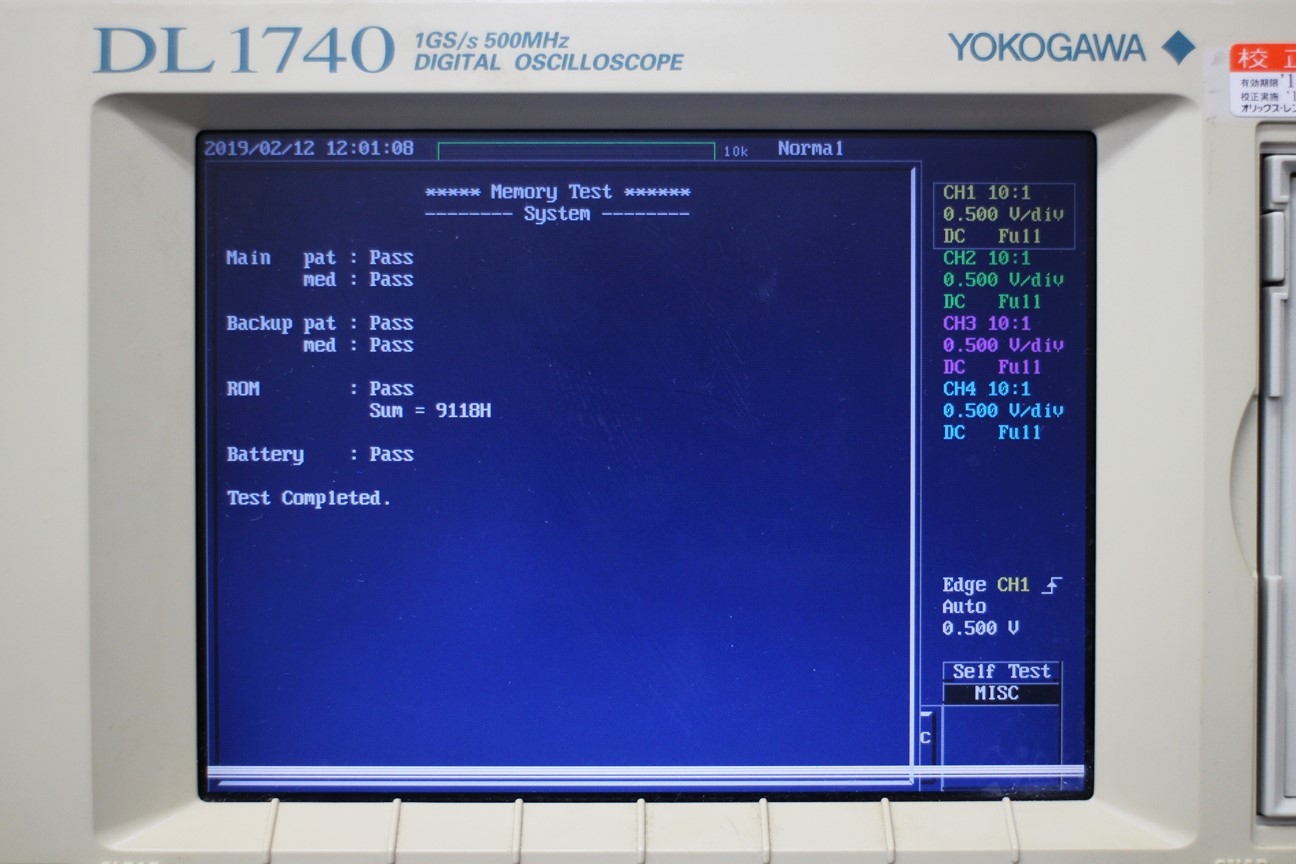

LCD has horizontal line(LCD横軸ライン有り)
Rear part resin cracking(リアパネル部分欠け)
DC-500MHz
4ch
1Gs/s 8bit 2mV-10V/div Offset
1Mohms/50ohms
AC/DC/GND/50ohms Sweep 1ns-50s/div 1MW/ch Memory2048waves GO/NOGO Math FFT,+,-,*,/ Search
LCD6.4inch
3.5FDD
USB/GP-IB/Printer
200VA
Dimension:214H*398W*440D
Weight:5.5Kg
Option
J1:FDD
B5:Printer
E2:Passive Prove+2(total 4sets)
P4:Probe power*4
C10:Ethernet I/F
- 付属品
- Manual,Probe(700988)*4,Front cover,CDROM
