NOISE LABORATORY

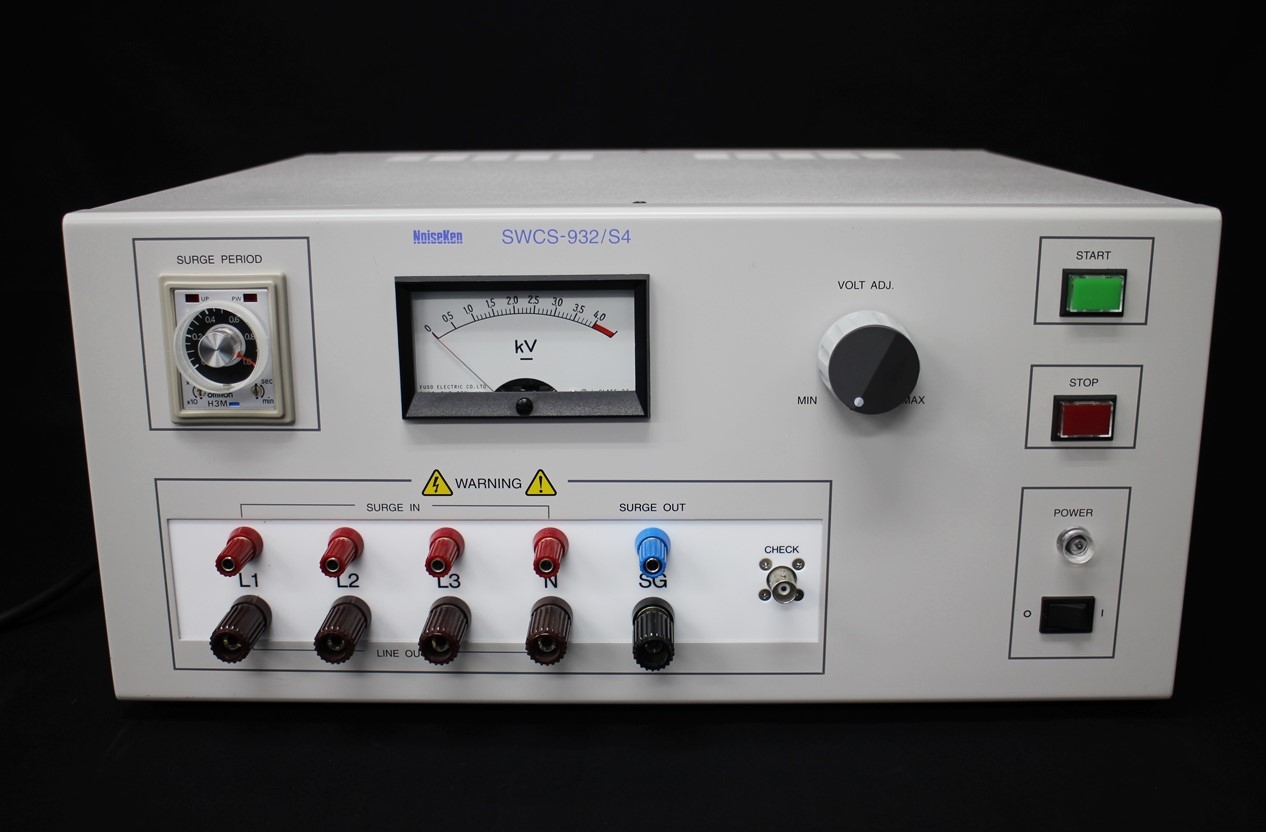

SWCS-932/S4 Damped-Oscillatory Wave Simulator
660,000円(税込)
- 仕様
-

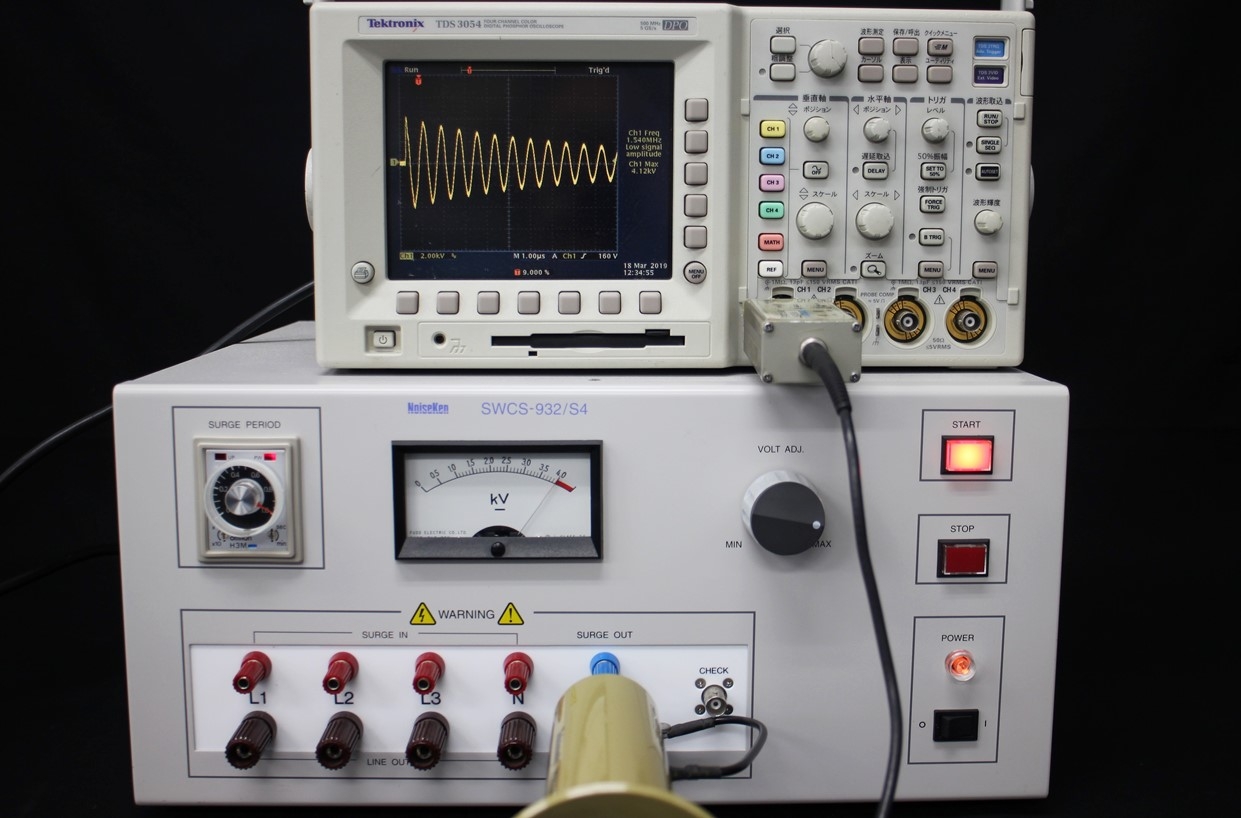

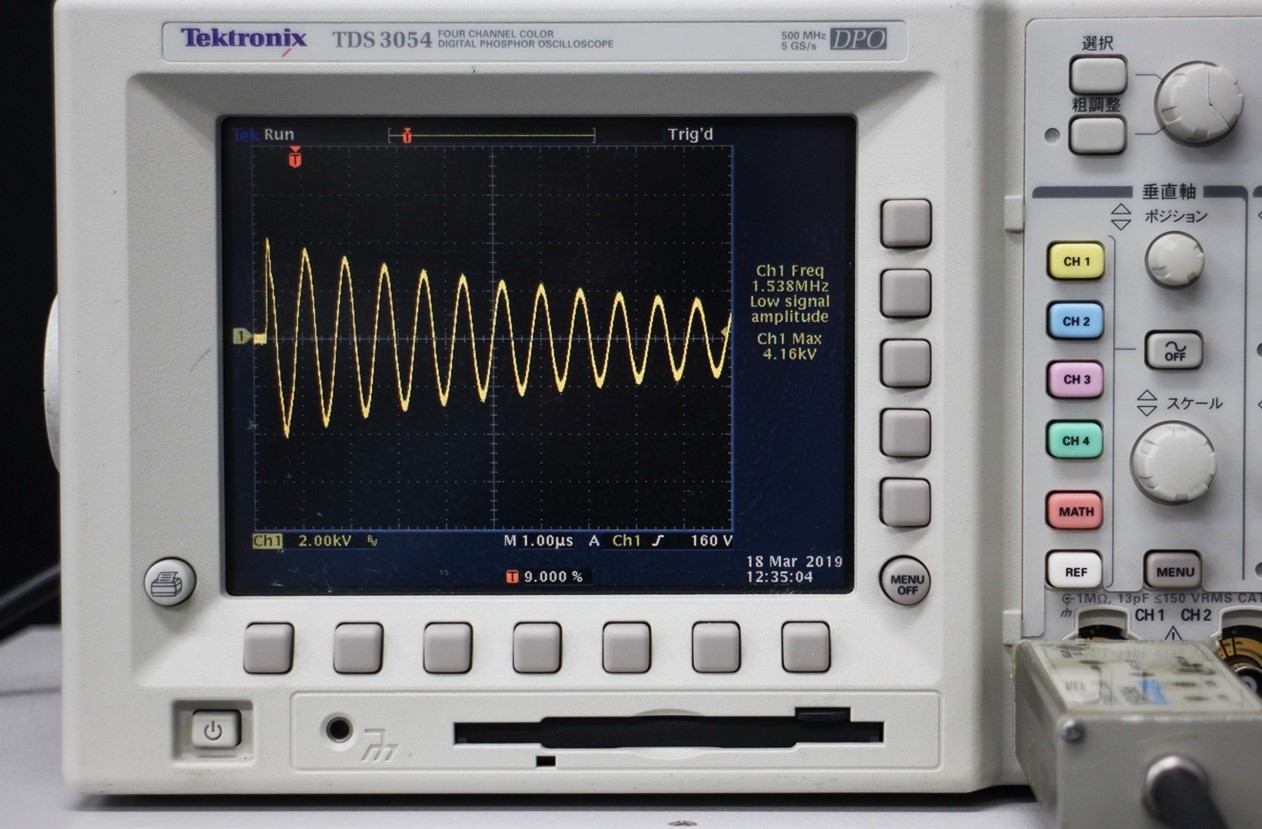

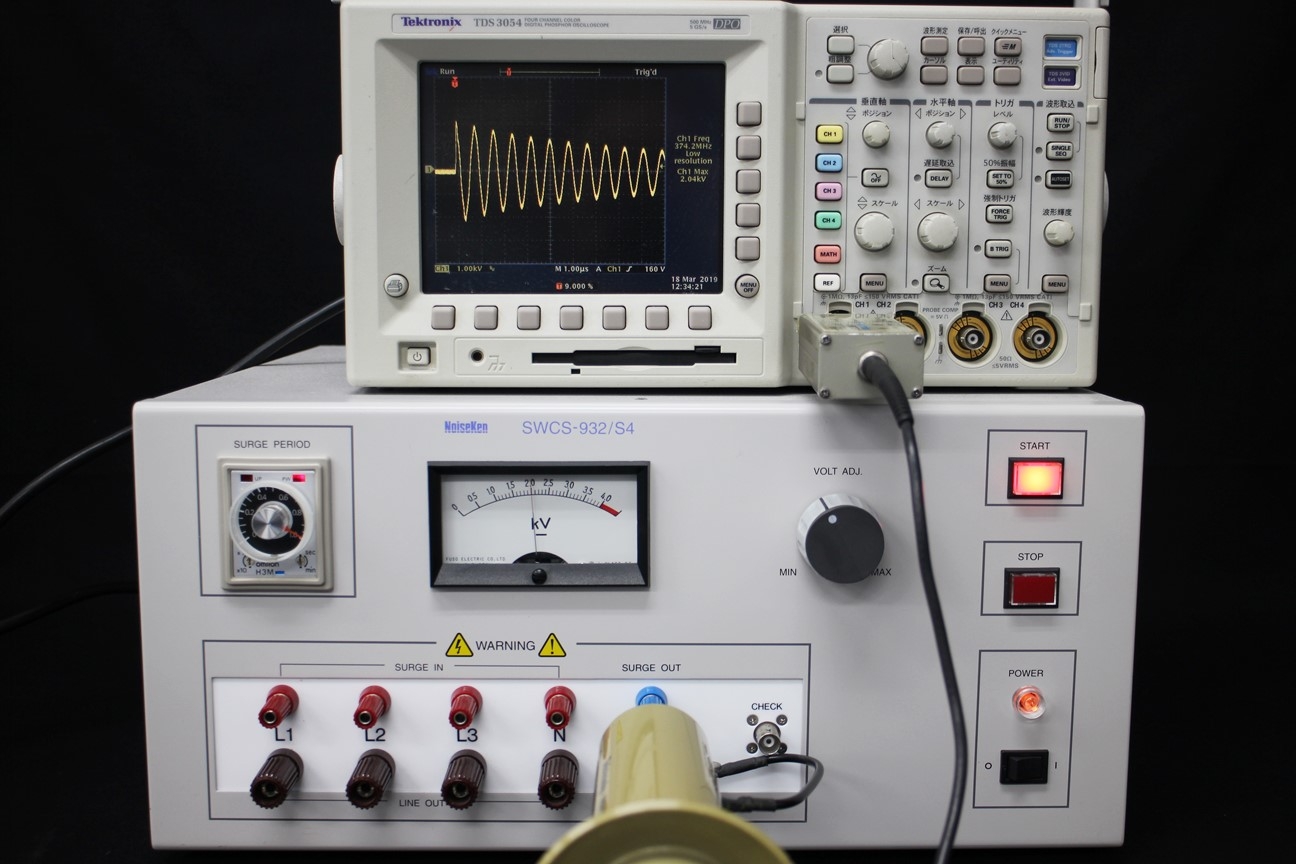

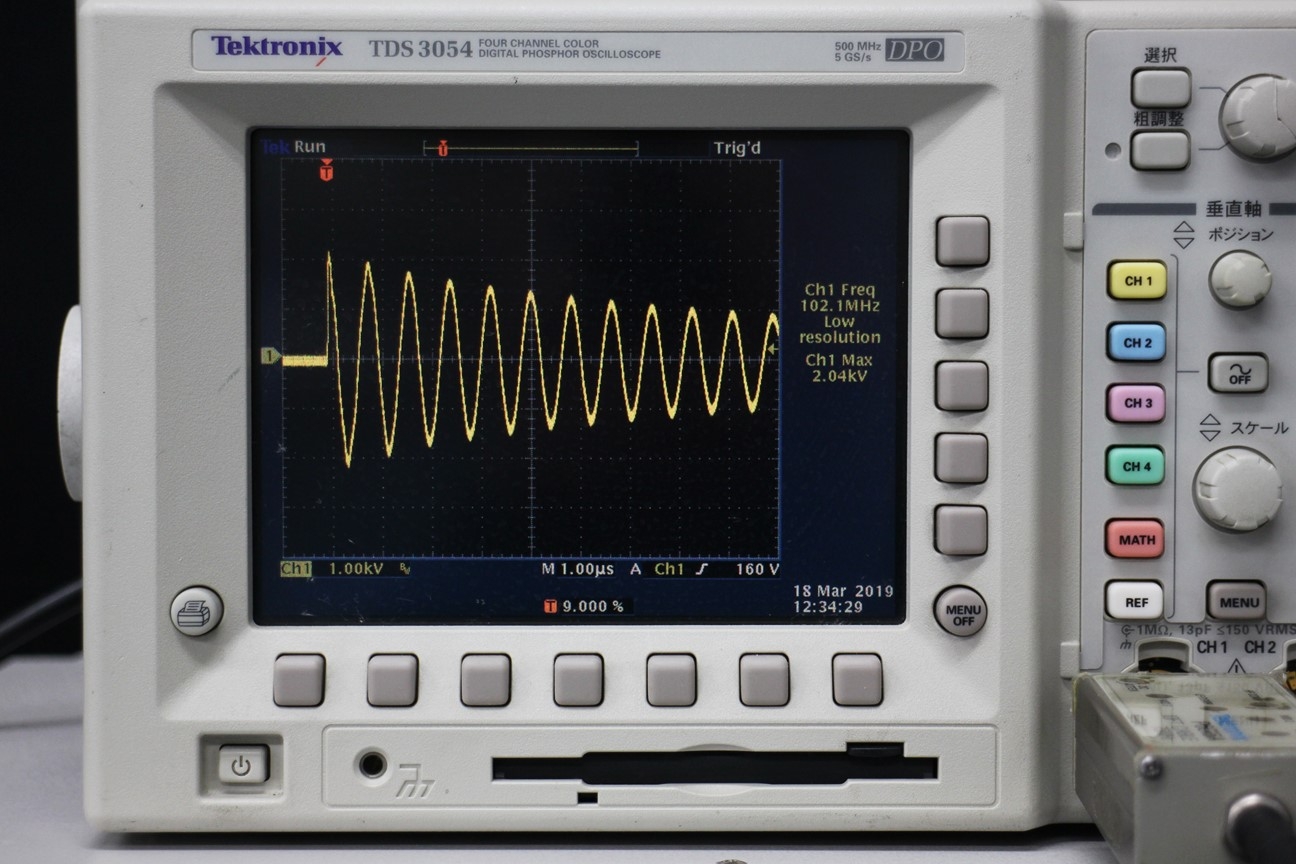

Output waveform: damped oscillatory wave
Output voltage: 1000V to 4000V
Polarity: Positive
Frequency: 1 to 1.5 MHz
Time: 6 μs or more
Switch method: Semiconductor
Output impedance: 150 Ω + 20%-0%
Repetition period: 50/60 Hz
(synchronized with drive power)
Application time: 1 s to 10 min
Coupling capacitor: 0.1μF

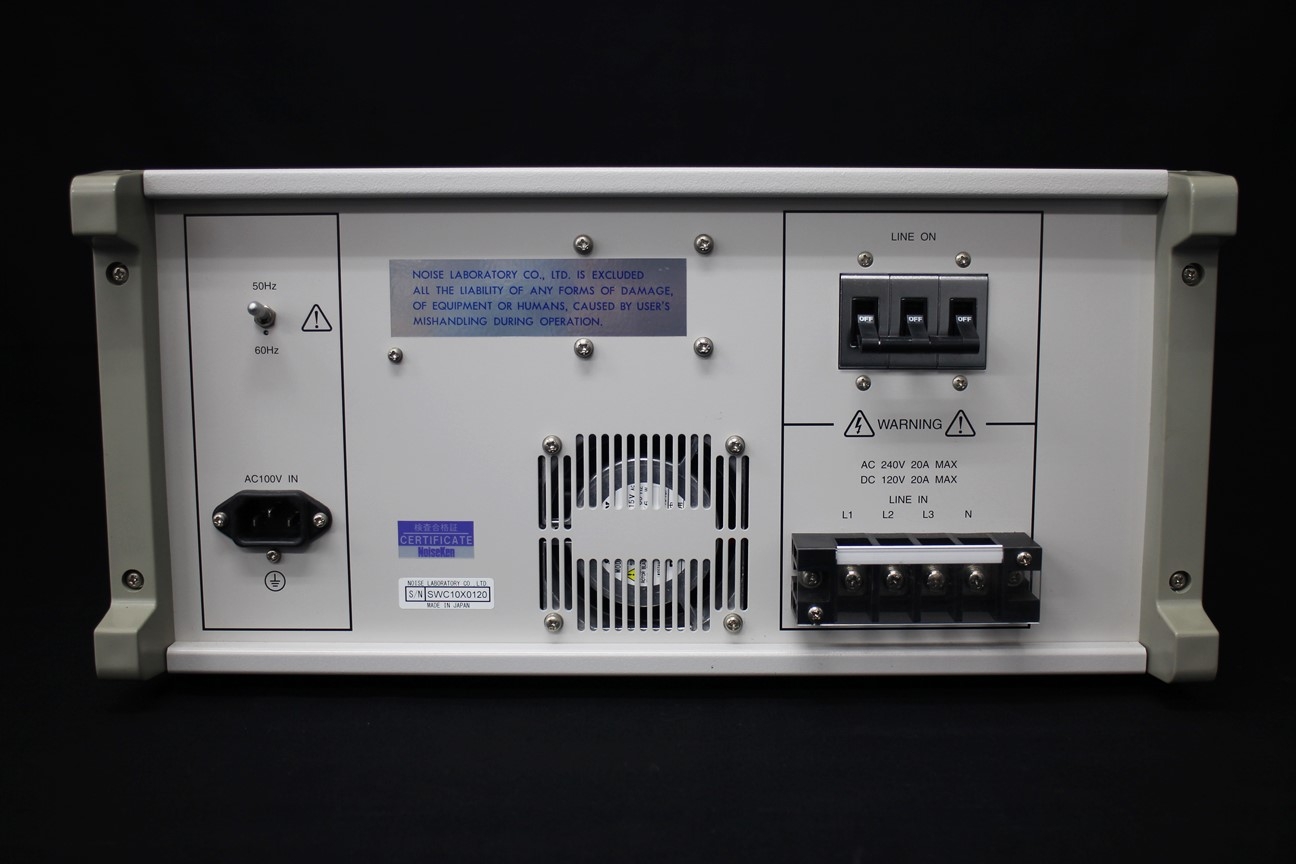

Device under test (EUT) Power capacity:
Single / three-phase 240Vac / 20A, DC120V / 20A
Power source: AC 100 V, 50/60 Hz
Dimensions: (W) 430 x (H) 200 x (D) 400 mm
Weight: about 12 kg
Maker Price:JPY1,400,000
- 付属品

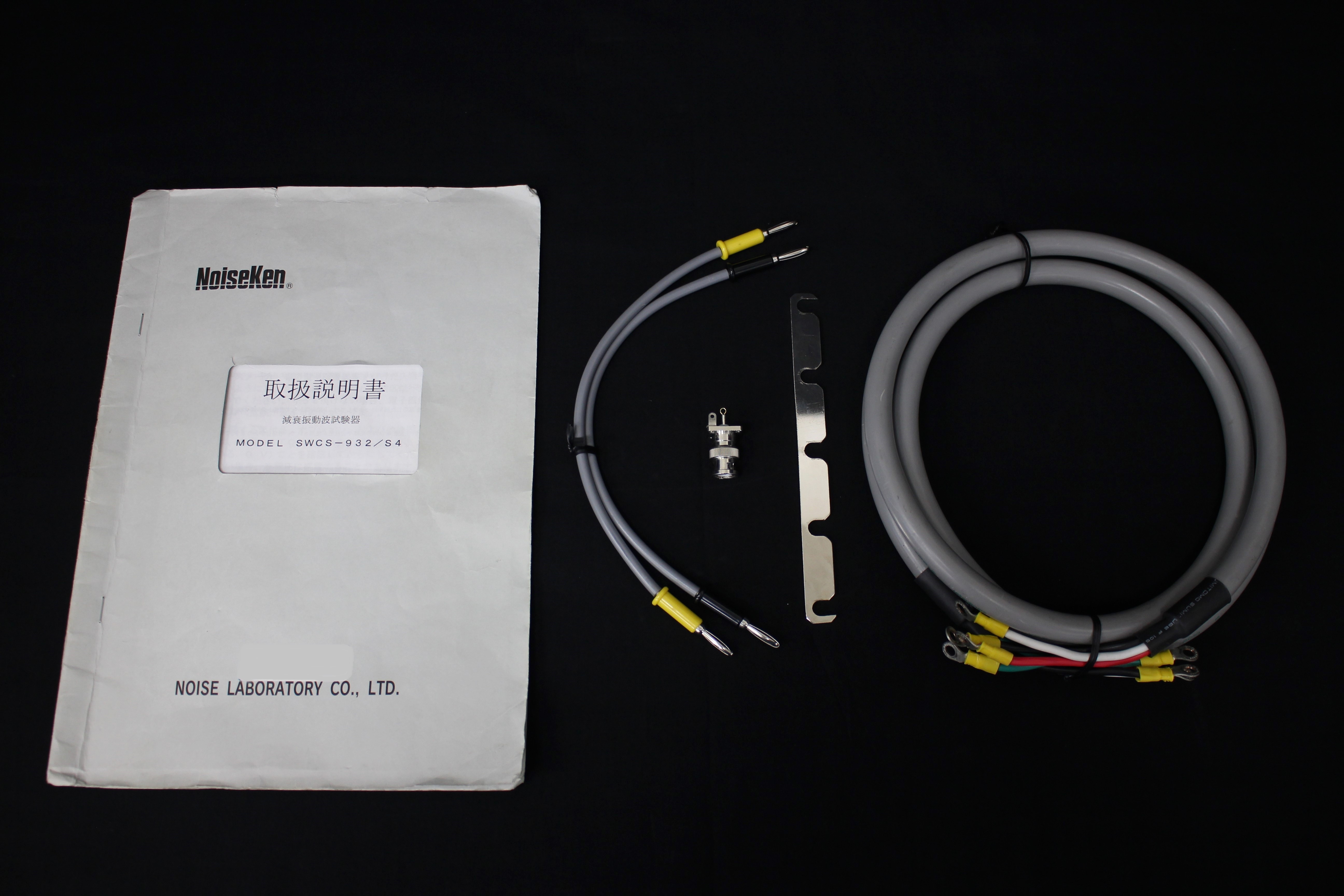

- BNC-PR connector,J-Manual,Line input cable,Short bar,Transburst mode Lead*2,Power Cord
