NF

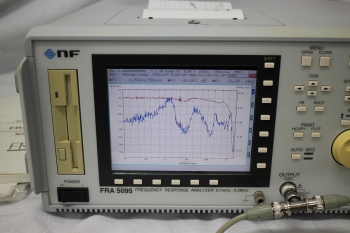

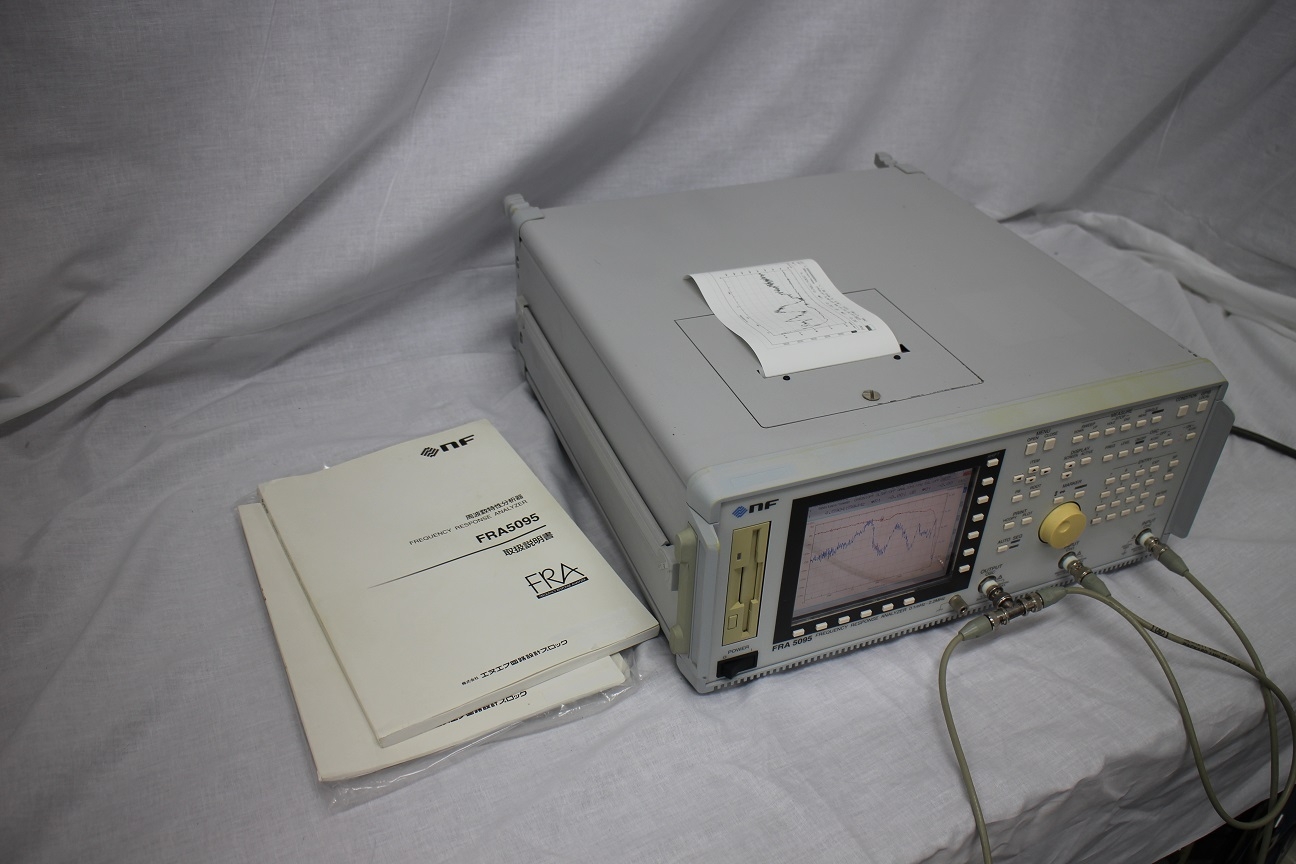

FRA5095 2.2MHz Frequency Response Analyzer

440,000円(税込)

仕様

OSC:0.1mHz-2.2MHz res0.1mHz acc10ppm
Sin,Squre,Triangle Output:0V-10Vp-p 100mA res0.01mV 3digits acc0.3dB
Dist<0.2%DCbias:-10V-+10V res10mV 50ohms Mode:Quick,Slow,Phase Sweep:LIN/LOG Step:3-20000 Input:2ch 1Mohms Isolation:120dB Max250V
HarmonicAna:2nd-10th Dynamic:140dB Repeat/Single/Sweep Autorange Delay:0-9999s res10ms Integ:1-9999time
Output Guard:1mV-250V Equalizer Analyzer:Ratio:CH1/CH2,CH2/CH1 Level:CH1,CH2 Calibration
Math:+,-,*,/,Diff,Integ,Diff*2,Integ*2,Opebloop,Closeloop
6.5inchColorLCD Graph:Borde,Nyquest,Nicols,Callcall Autoscale Marker
3.5FDD GP-IB Printer 80VA 177H434W500D 15kg J-manual*2
定価262.5万円

付属品

J-manual*2
