Anritsu

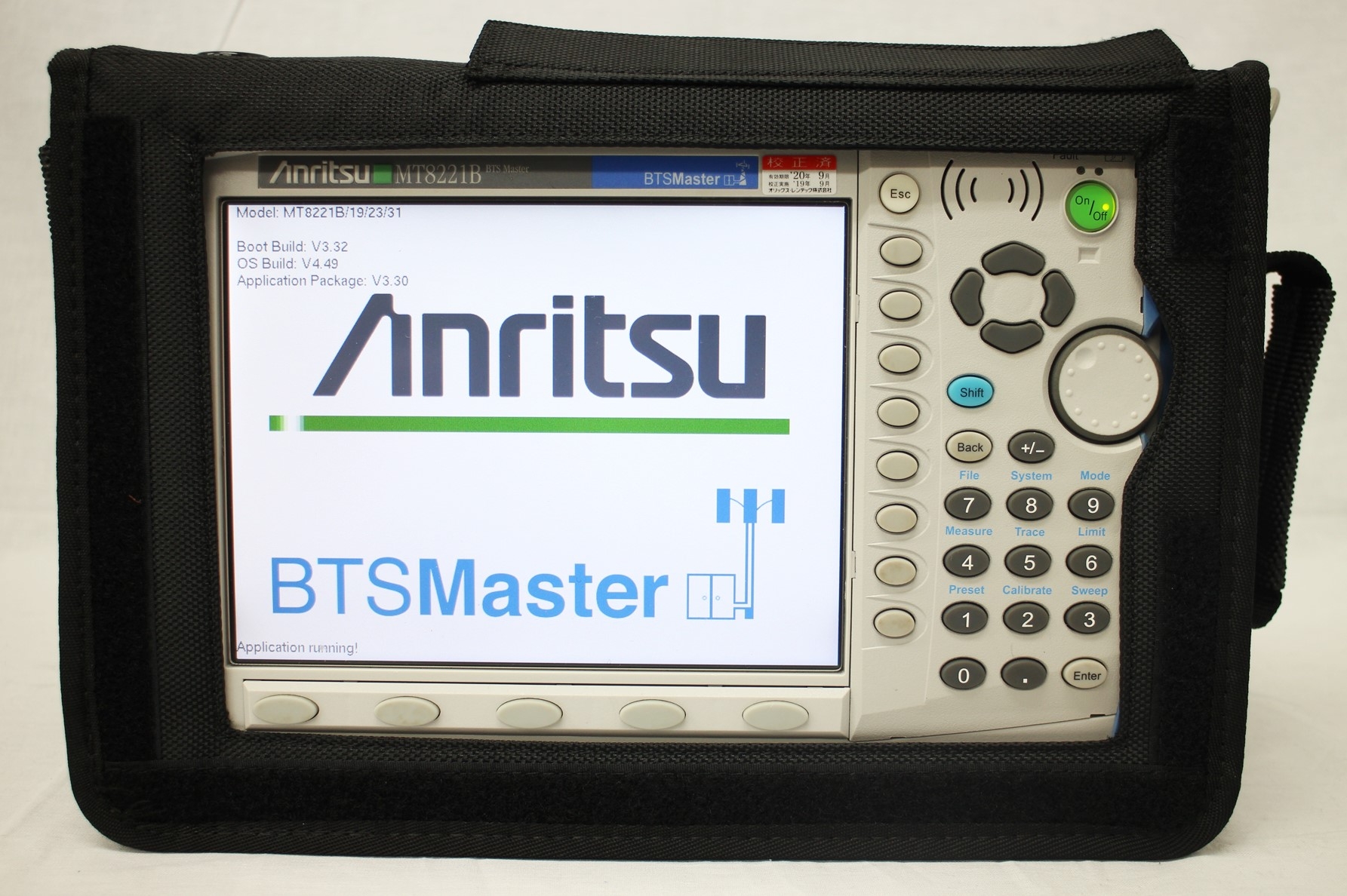

MT8221B 7.1GHz BTS Master

935,000円(税込)

仕様

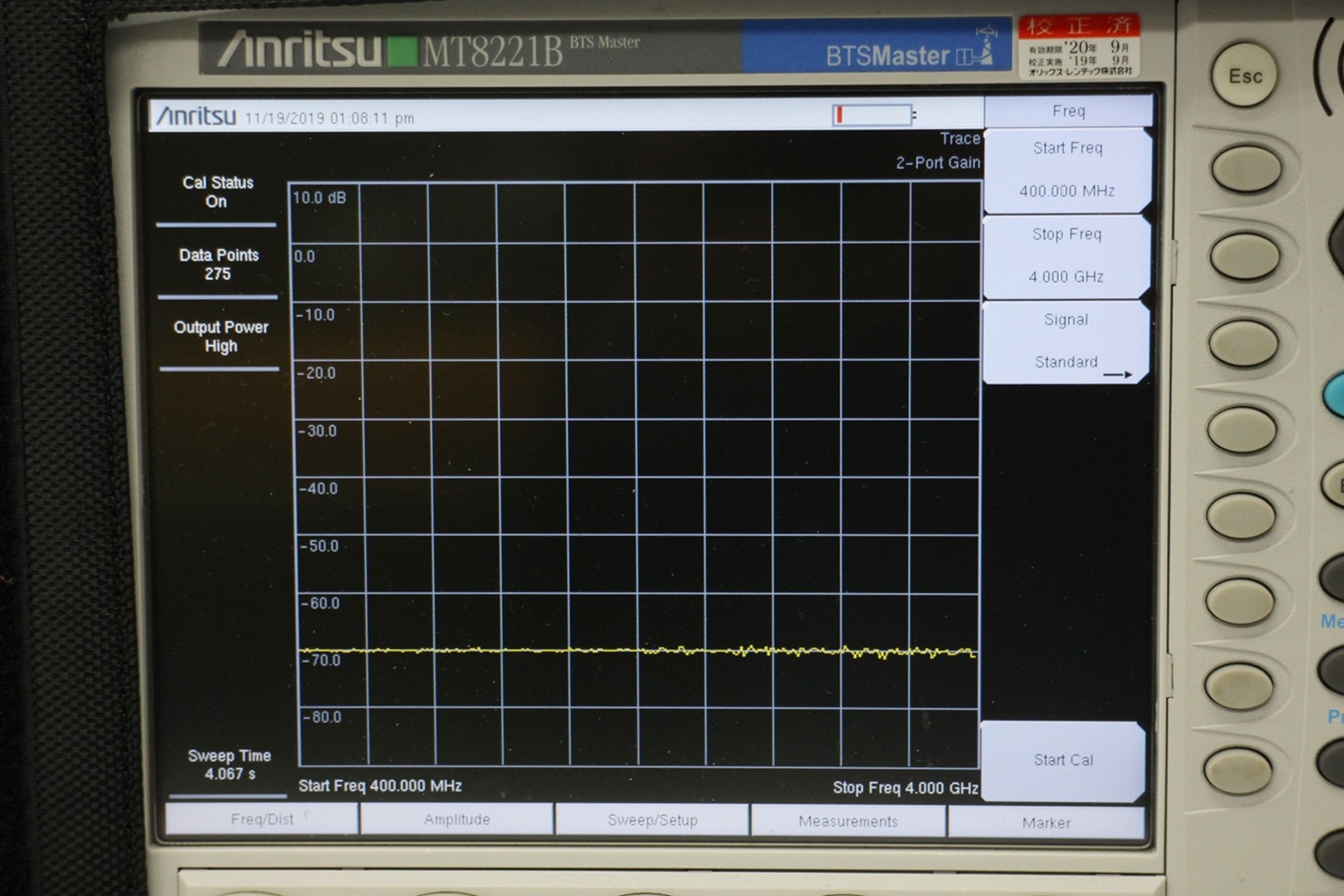

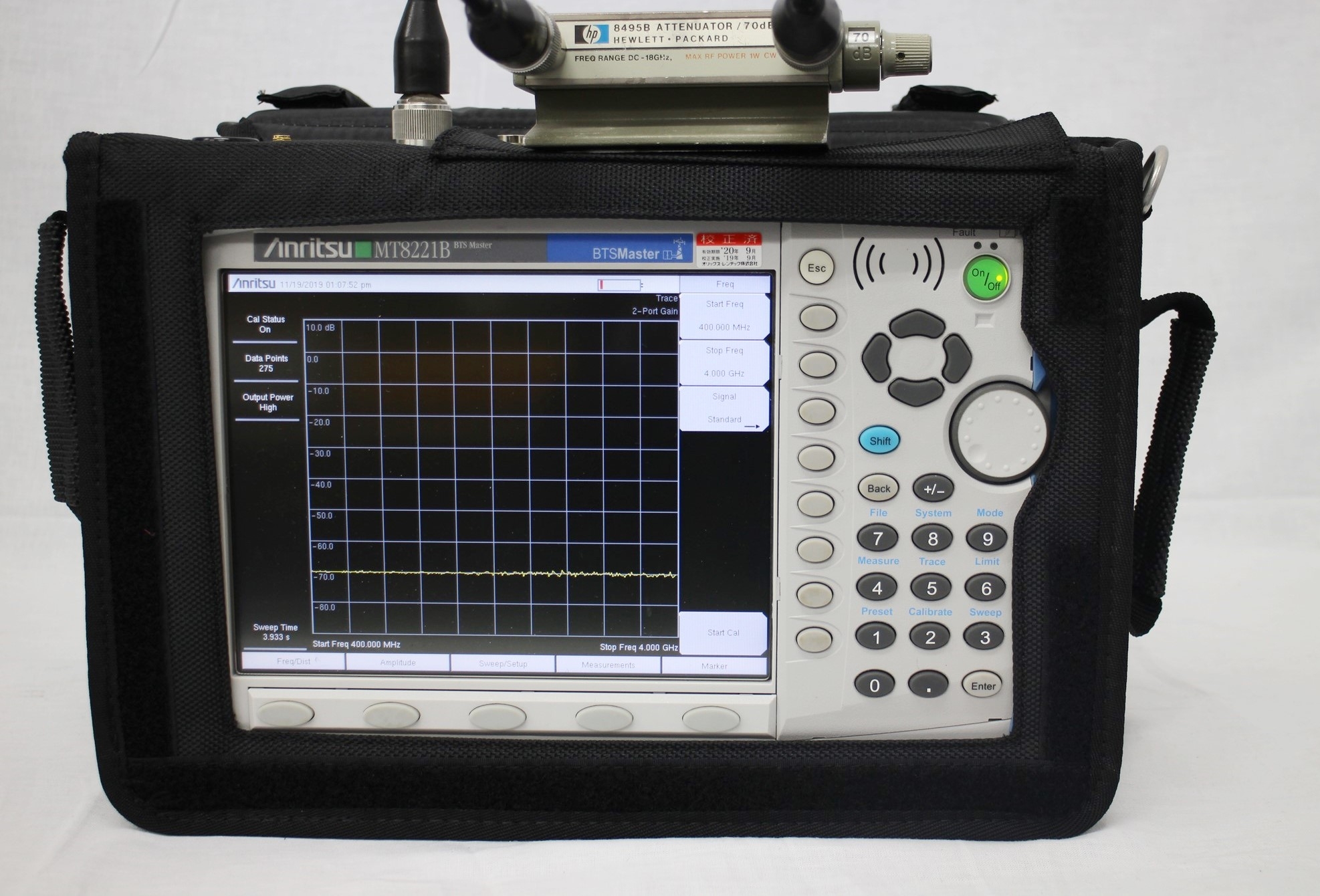

Cable and Antenna Analyzer Mode
• Frequency range:400MHz-4GHz
• Measurements: RL, VSWR, Cable Loss, DTF, Phase, Gain
• 2-port Gain Measurement Uncertainty: < 0.45 dB
• 2-port Dynamic Range: > 80 dB
• RF Immunity: +17 dBm on-channel, +10 dBm on-frequency
• Calibration: OSL and FlexCal™ • Bias Tee: 32 V internal

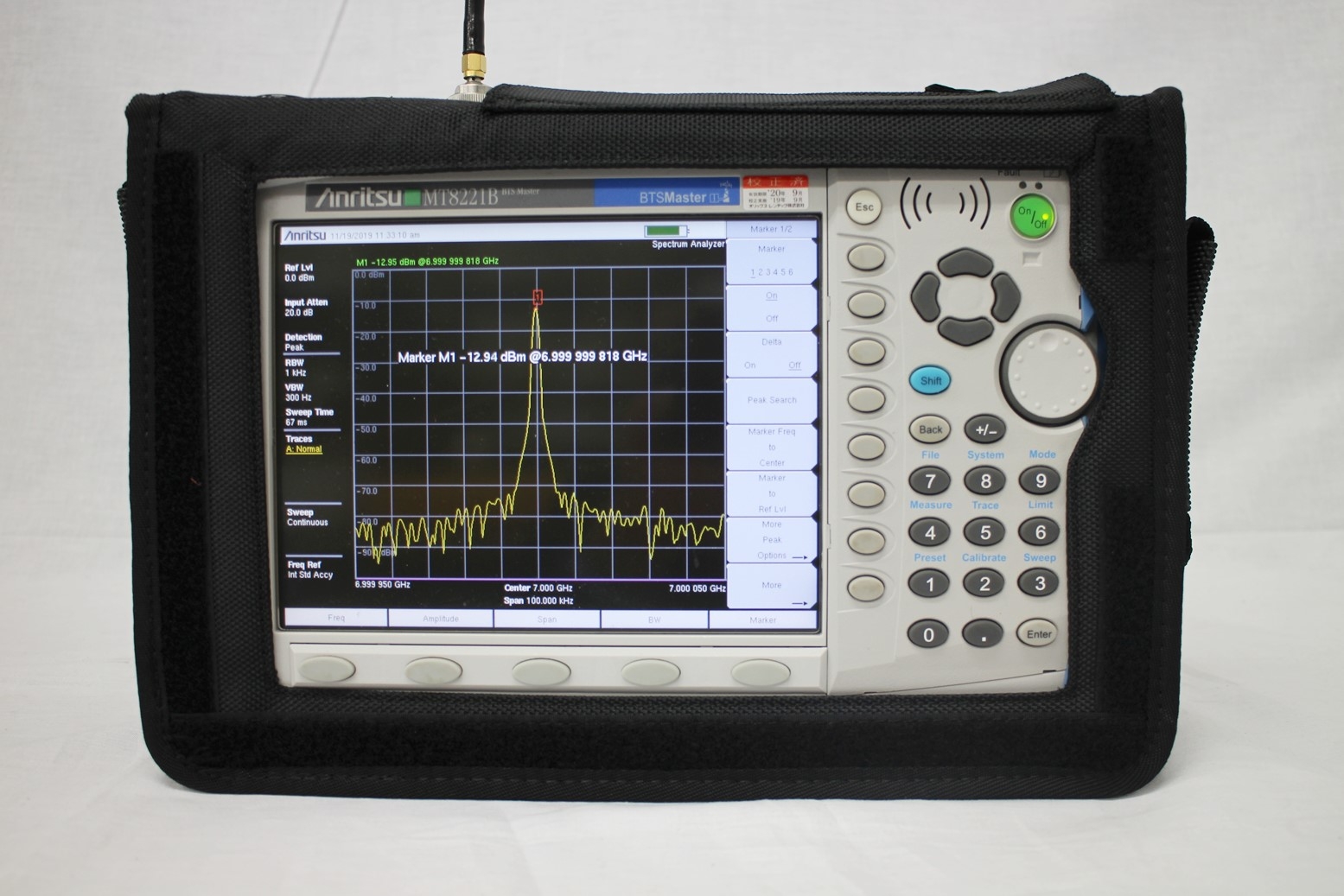

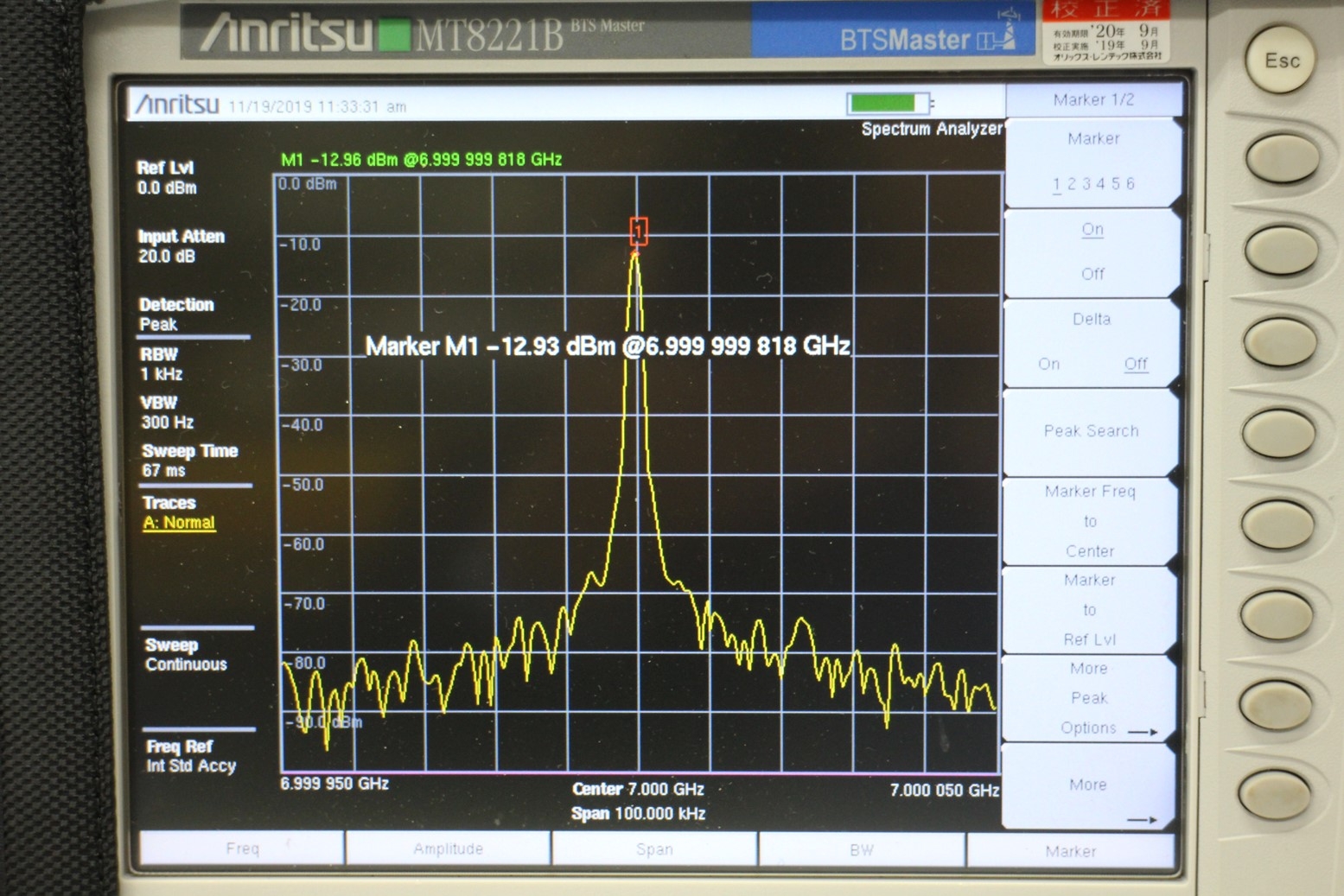

Spectrum and Interference Analyzer Mode
• Frequency range:150kHz-7.1GHz
• Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I
• Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID
• Dynamic Range: > 95 dB in 1 Hz RBW
• DANL: –163 dBm in 1 Hz RBW
• Phase Noise: –100 dBc/Hz @ 10 kHz offset
• Frequency Accuracy: ± 25 ppb with GPS On

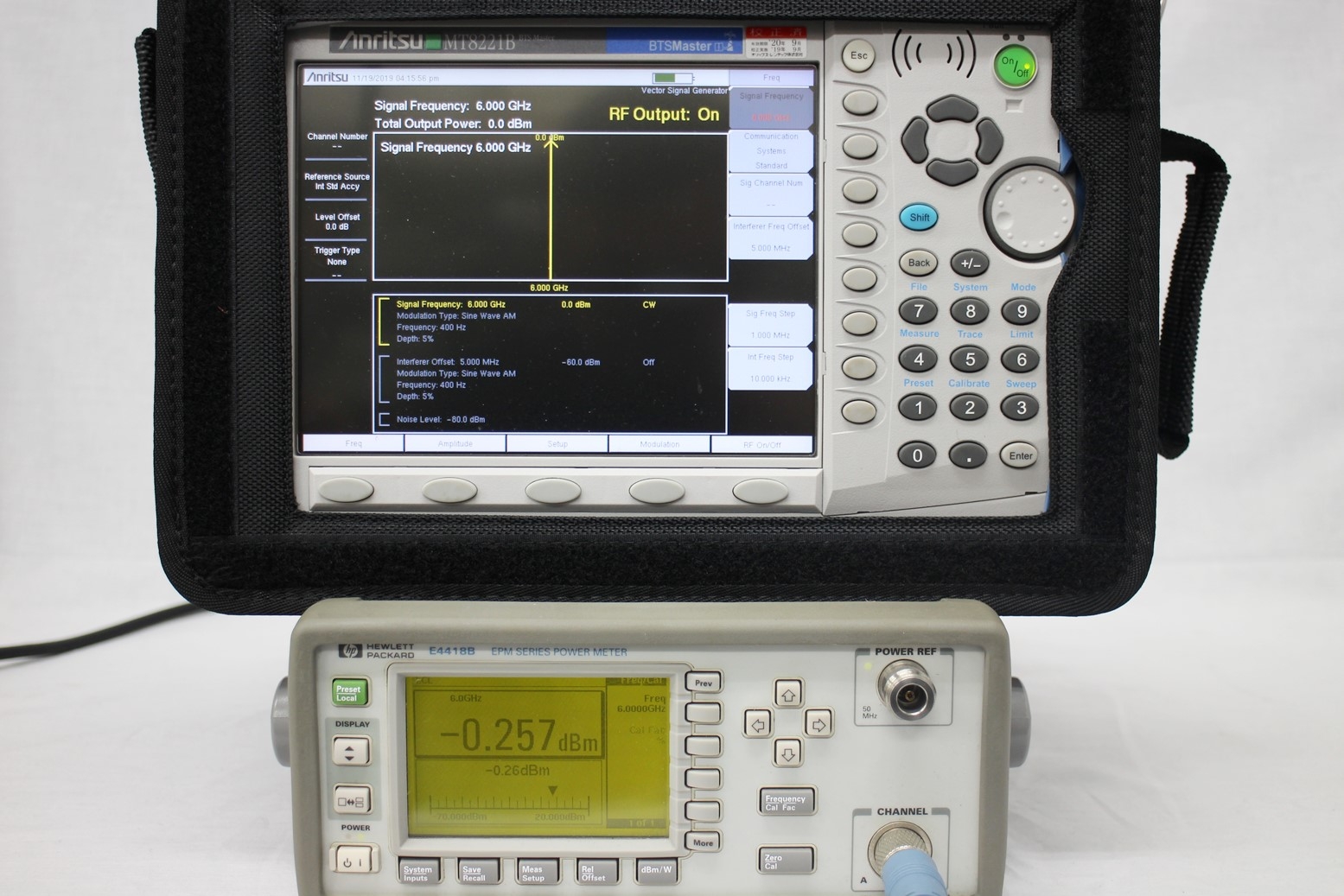

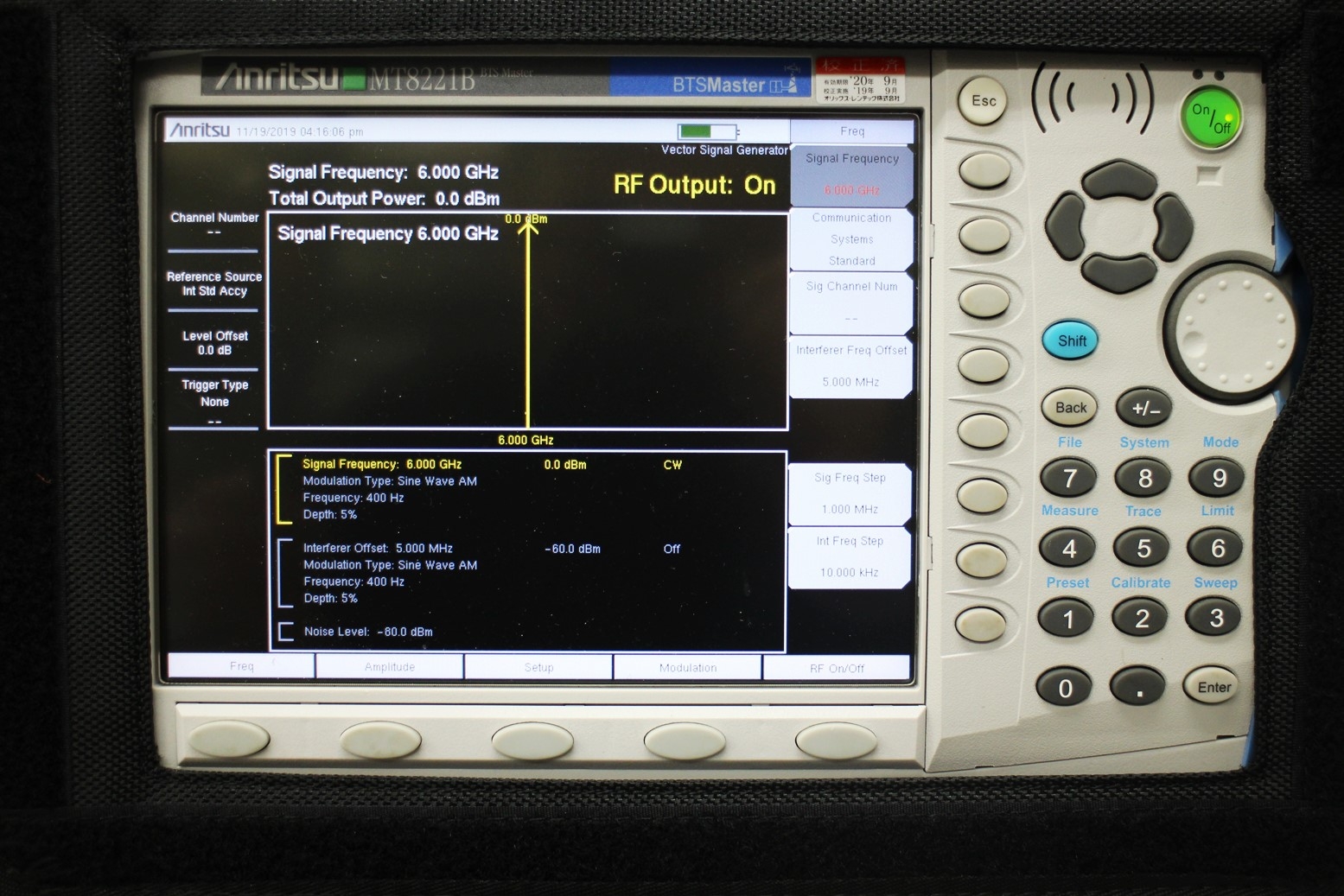

Vector Signal Generator
Output power:-124dBm - 0 dB
Frequency range:400MHz-6GHz

Power Meter Mode
Frequency Center/Start/Stop, Span, Frequency Step, Signal Standard, Channel #, Full Band
Amplitude Maximum, Minimum, Offset, Relative On/Off, Units, Auto Scale
Average Acquisition Fast/Med/Slow, # of Running Averages Limits Limit On/Off, Limit Upper/Lower Frequency Range 10 MHz to 7.1 GHz
Span 1 kHz to 100 MHz
Display Range –140 dBm to +30 dBm, ≤ 40 dB span Measurement Range –120 dBm to +30 dBm
Offset Range 0 to +100 dB
VSWR 1.5:1 typical Maximum Power +30 dBm without attenuator
Accuracy Same as Spectrum Analyzer
Application Options Impedance (50 Ω, 75 Ω, Other)

Option
0019 High Accuracy Power Meter
0023 Vector Signal Generator
0031 GPS-Assisted Frequency Accuracy

付属品

Power Code,Cigar socket charger,Japanese manual*1,English Manual*1,CAT5e Lan Cable*2,CDRom*2,USB TO MicroUSB Convert Cable*1,Belt*1
