ADVANTEST

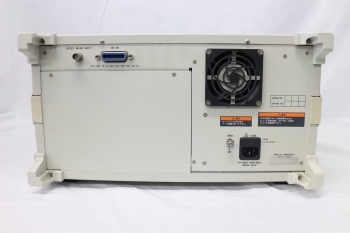

Q8381A 350-1750nm Optical Spectrum Analyzer
990,000円(税込)
- 仕様
-
Wavelength Range:350-1750nm ,0.35um - 1.75μm
Resolution:0.1,0.2,0.5,1.0,2.0,5.0nm
Accuracy:+-0.5nm
Level Range:-85 - +10dBm(1.1 to 1.6um),-75 - +10dBm(0.7 - 1.6um),-70 to +10dBm(0.4 - 1.65um),-60 - +10dBm(0.35 to 1.5um)
Polarization dependency:+-0.1dB Accuracy:+-1.5dB
Linearity:+-0.5dB/20dB,+-1.0dB/40dB
Dynamic Range:>40dB
Sweep span:0.1 to 140nm/DIV or 0
Printer GP-IB 3.5FDD(2DD 2HD)
Power Source:100 to240V,50/60Hz,<180VA,
Size:424(W)-221(H)-450(D)mm
Weight:29kg
- 付属品
- Power Cord
