HP

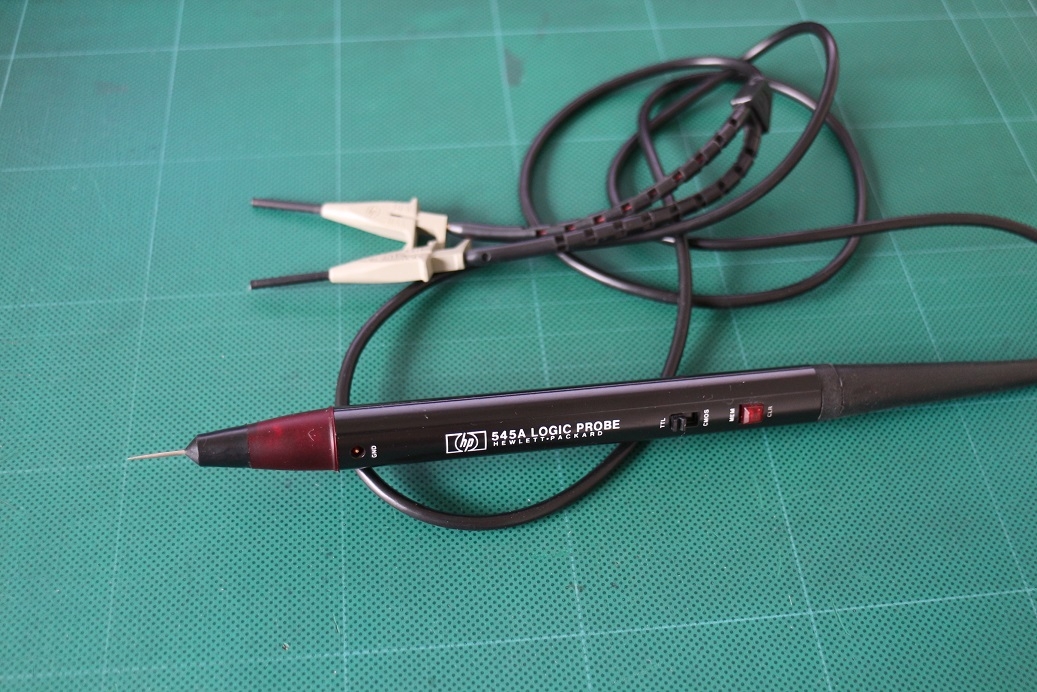

545A Logic Probe
35,200円(税込)
- 仕様
-
Input current <15uA <15pF
Threshold TTL 1.8-2.4V CMOS 8.0-9.0V
Pulse recognition 10ns 80MHz (TTL) 40MHz (CMOS)
LAMP Indication Bright/DIM/OFF flash for Pulse
DIM 1.0-1.8V (TTL 5V) 2.0-3.0V (CMOS 5V)
Pulse Memory
Max Input Level +-120V (DC-1KHz) +-250V (15sec)
Power TTL:4.5-15V CMOS:3-18V 70mA Max 25V
113g
Probe body 15.24cm Cable 120cm
- 付属品

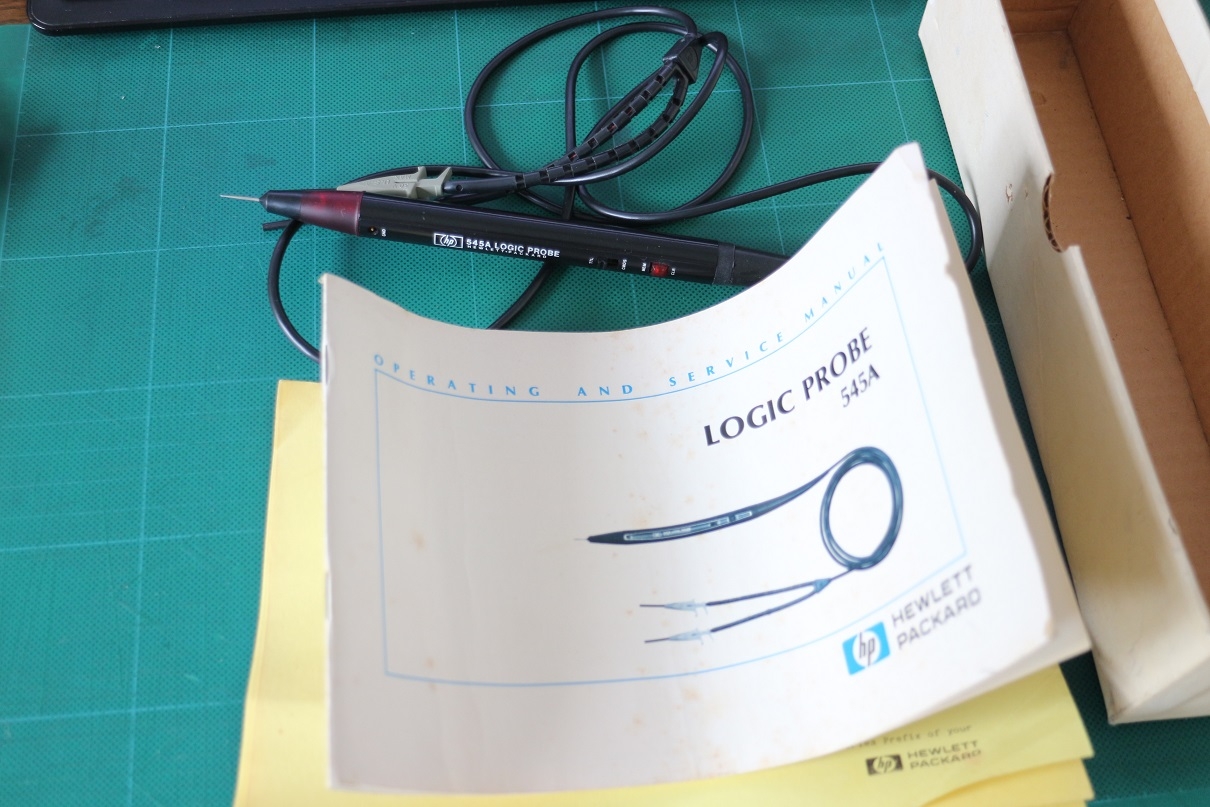

- Manual
