YOKOGAWA

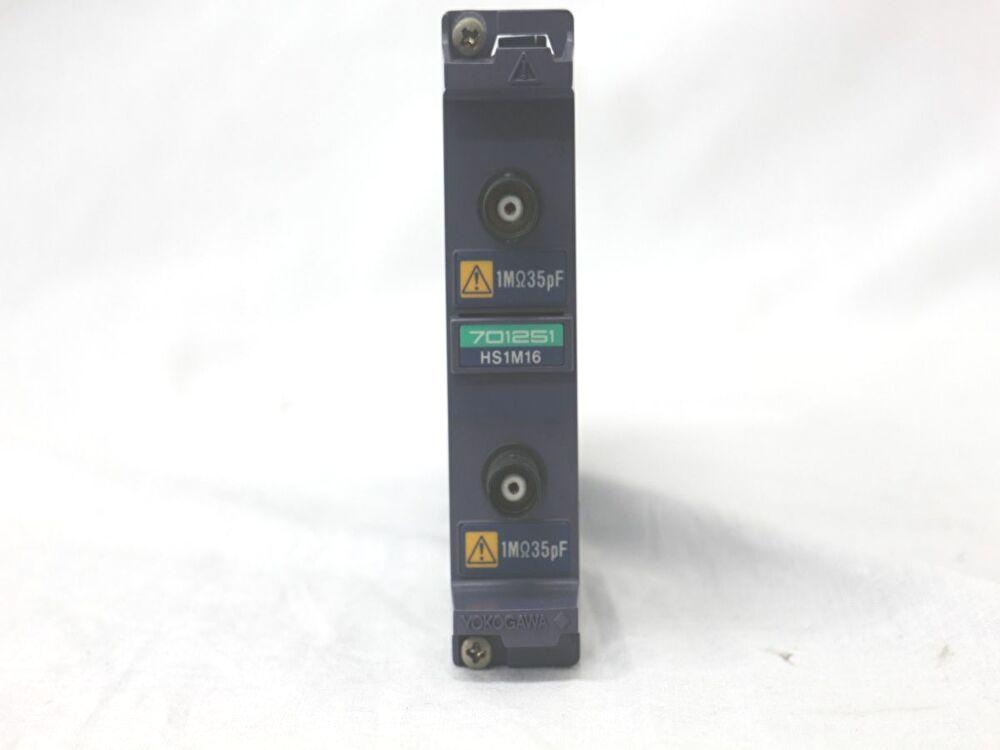

701251 + 700929*2 High-Speed Isolation Module
99,000円(税込)
- 仕様
-
701251
For DL750 Fast 1MS / s16bit isolation module (2ch),
Input coupling: AC / DC / GND,
Frequency characteristics: DC - 300kHz,
Input range (1: 1): 1mV ~ 20V / DIV (1-2-5 step),
Input range (10: 1): 10mV ~ 200V / DIV (1-2-5 step),
Effective measuring range: 20VDIV,
Input: Isolated BNC (1MΩ / 35pF)
Maker Price:123,000
700929
•Bandwidth: DC to 100MHz (-3dB)
•Attenuation ratio: 10:1
•Connector Type: BNC
•Input Resistance: 10MΩ
•Input Capacitance: 18pF
•Compensation Range:
•Rise Time: 1.4ns
- 付属品
- 700929*2
