Rohde&Schwarz

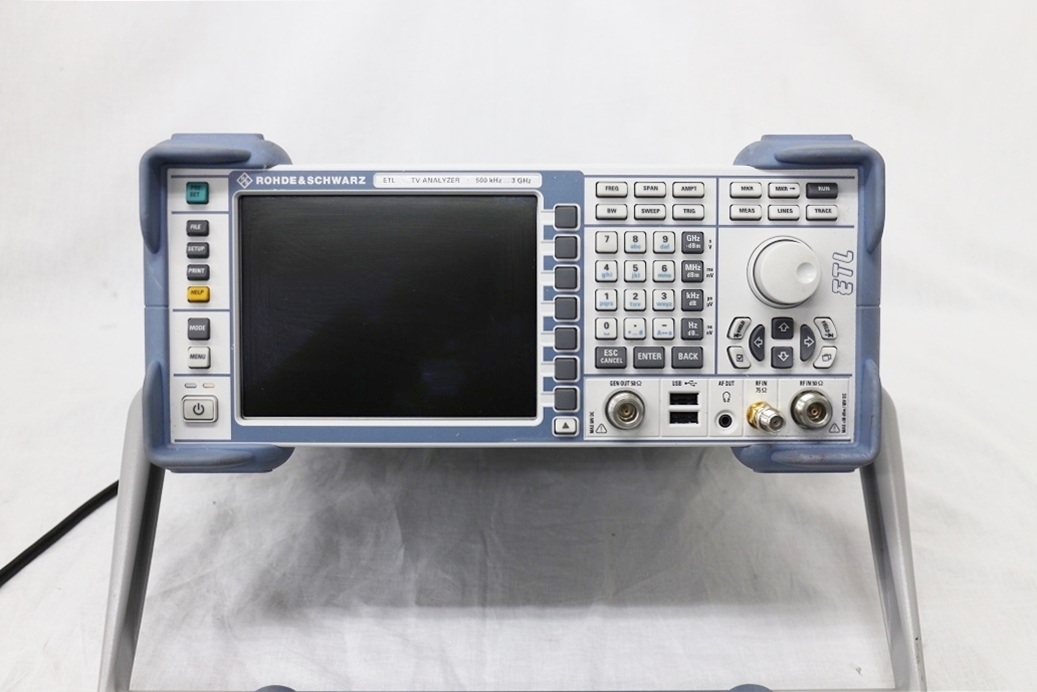

ETL TV Analyzer with TG

660,000円(税込)

仕様

TV Analyzer
Frequency range 500 kHz to 3 GHz
Resolution 1 Hz

Digital TV ISDB-T、DVB-C(J.83/A/C)、DTMB、DVB-T/H、ATSC、T-DMB/DAB、J.83/B (Need install option)

Analog TV:B/G、I、D/K、M、N
FM radio：Audio Analyzer （SN>78dB）

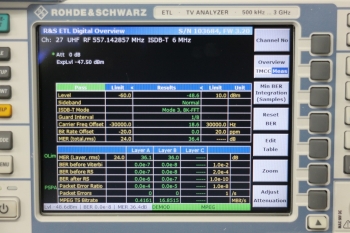

Real time Demodulation Analyzer
Measure Item

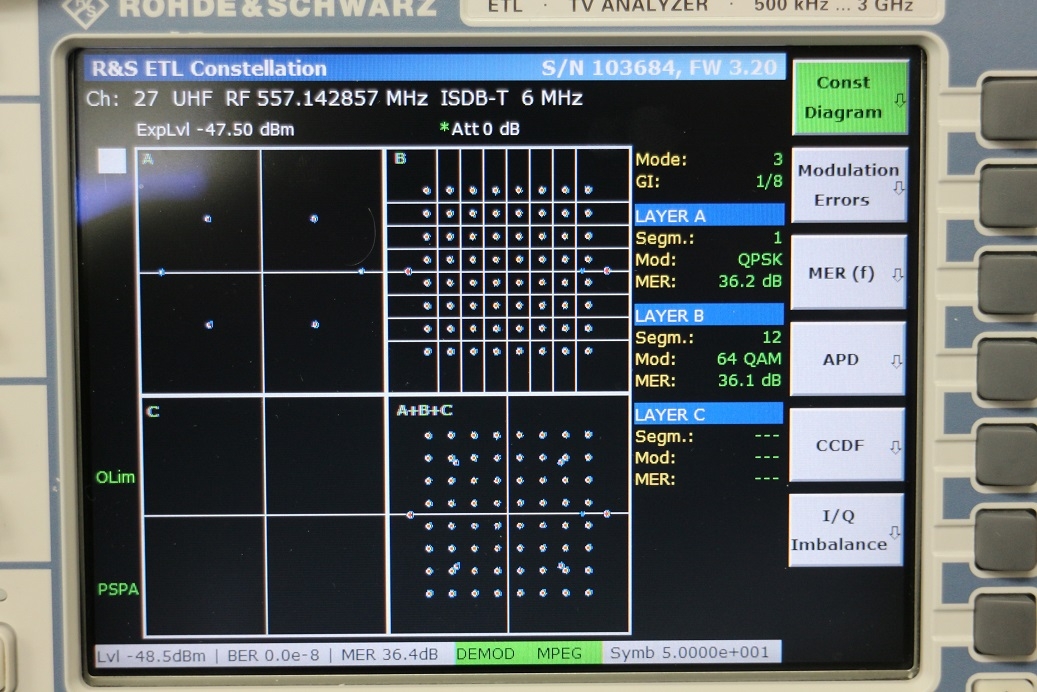

Level,Frequency Offset,MER、BER、MER VS Carrier ,Echo measure ,Constalation ,Amplifure VS Carrier
75ohm Input Preselector
FM Analyzer
RF Supervise log Max 1000days
Size （W×H×D）：342mm × 158mm × 367mm 9kg

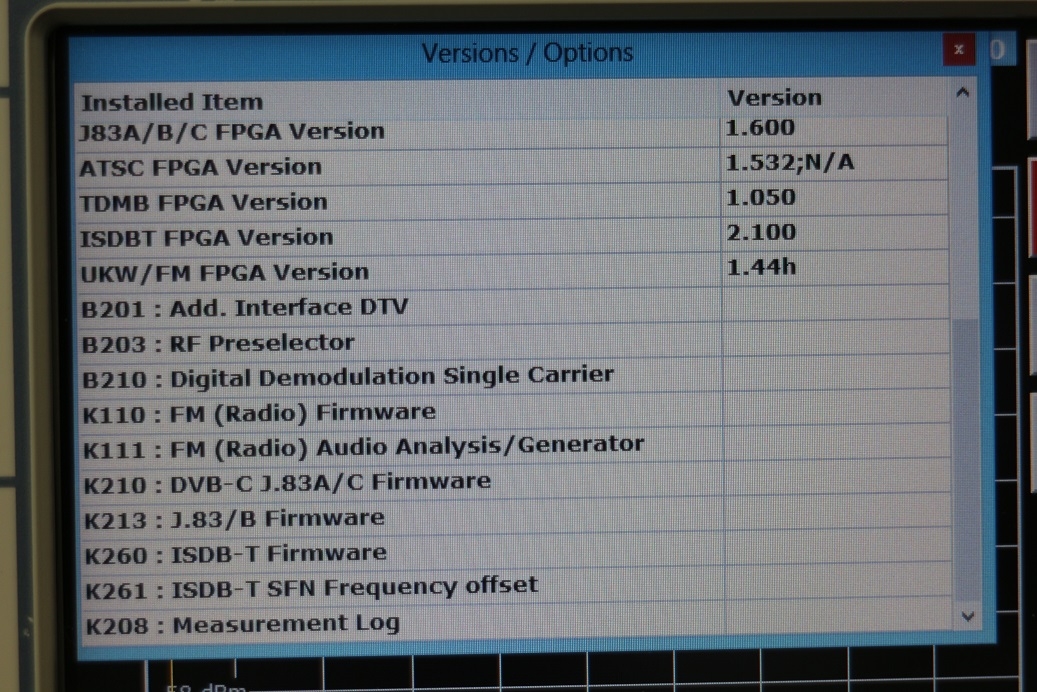

OPTION
B201 Interface DTV
B203 RF Preselector
B210 Digital Demodulation
K110 FM radio firmware
K111 FM radio Audio Analyzer Generator
K210 DVB-C J83A/C firmware
K213 J83/B firmware
K260 ISDB-T firmware
K261 ISDB-T SFN Frequency offset
K208 Measurement Log

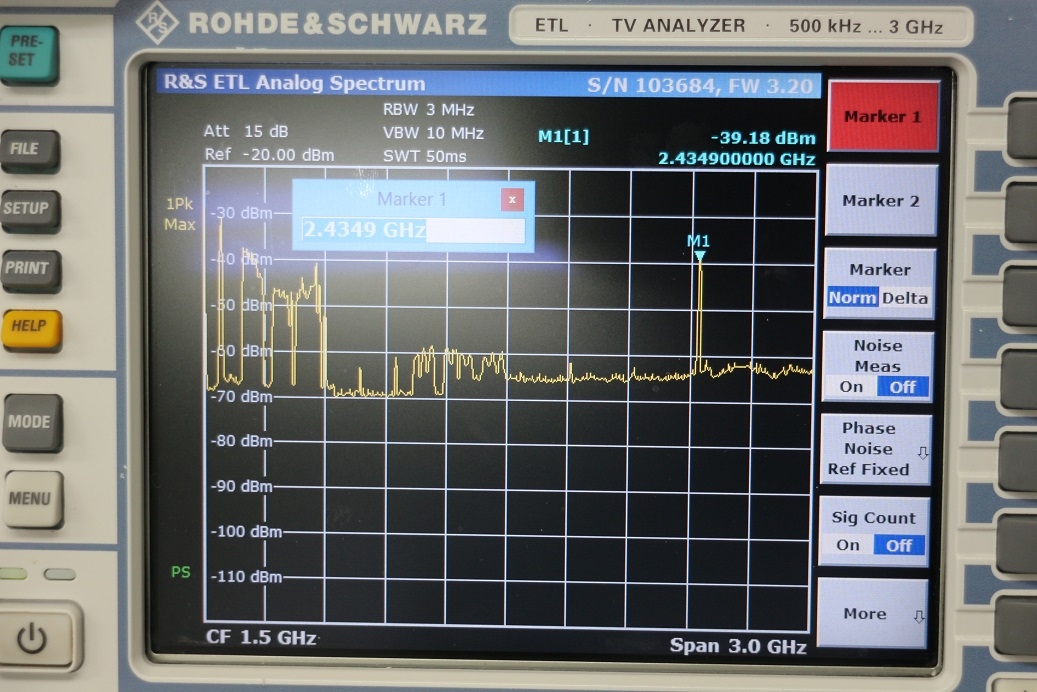

Spectrum Analyzer with TG
Range 500 kHz to 3 GHz
Resolution 1 Hz
Resolution bandwidths:
300 Hz to 10 MHz (–3 dB) in 1/3 sequence

Maximum permissible input level
DC voltage 80 V
CW RF power preamplifier off 30 dBm (= 1 W)
CW RF power preamplifier on 20 dBm (= 0.1 W

With R&S®ETL-B203 preselector
(filter path, TV mode)
preamplifier off
500 kHz to 1 MHz < –110 dBm (1 Hz)
1 MHz to 10 MHz < –125 dBm (1 Hz)
10 MHz to 50 MHz < –140 dBm (1 Hz)
50 MHz to 3 GHz < –150 dBm (1 Hz)
preamplifier on
500 kHz to 1 MHz < –120 dBm (1 Hz)
1 MHz to 10 MHz < –135 dBm (1 Hz)
10 MHz to 50 MHz < –150 dBm (1 Hz)
50 MHz to 3 GHz < –157 dBm (1 Hz)

Tracking generator N female, 50 Ω
Output level –20 dBm to 0 dBm in 1 dB steps
Frequency range 1 MHz to 3 GHz

付属品

Accessory(付属品):Power Cord(電源コード),Manual(取扱説明書等),Case(専用ケース)
