HP

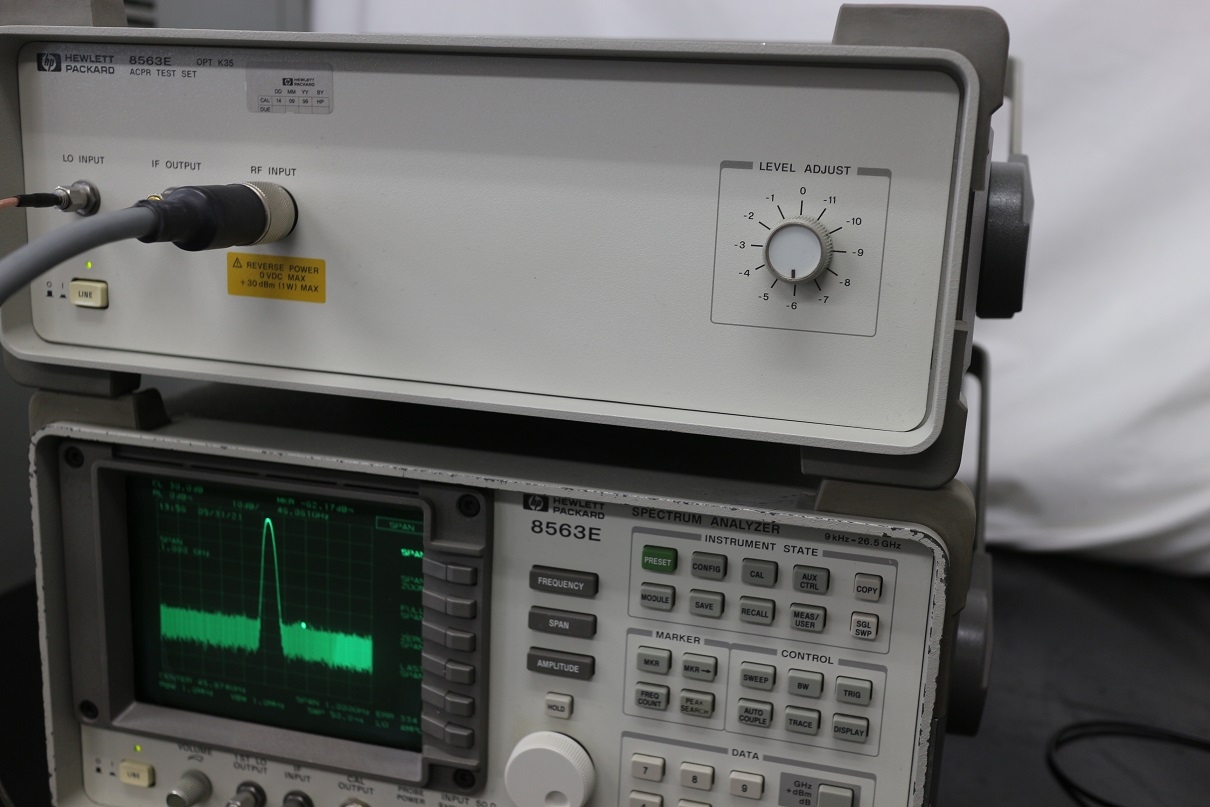

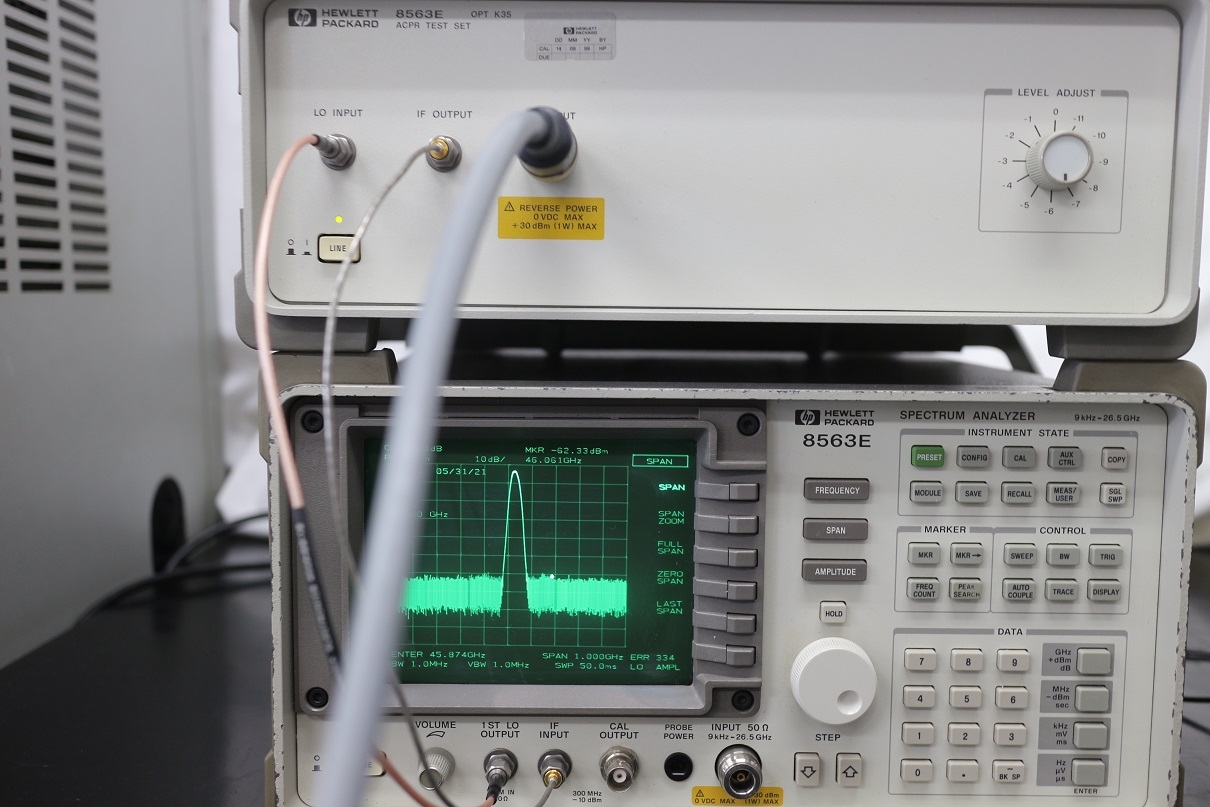

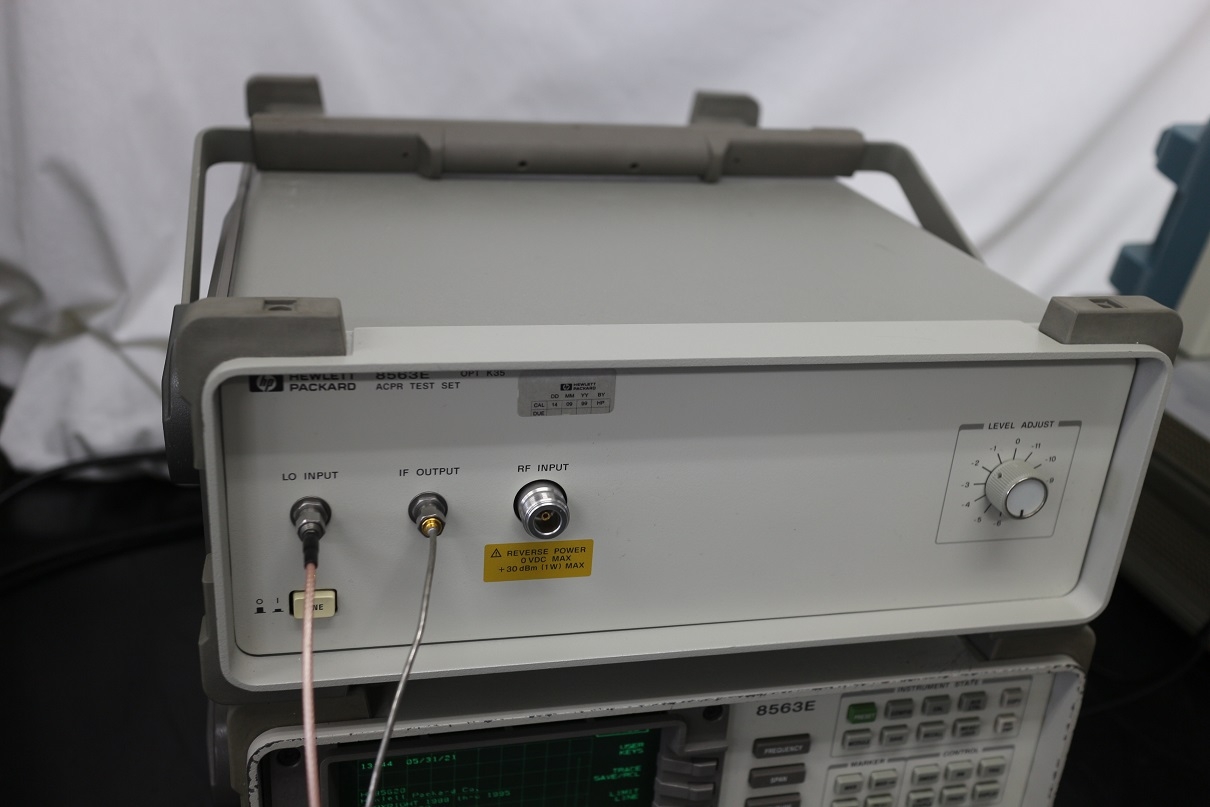

8563E K35 ACPR Test Set
66,000円(税込)
- 仕様
-
Adjacent Channel Power Ratio Test Set Optimized for W-CDMA
Dynamic Range >70dB at guard band >900KHz
Frequency range 1.2 GHz - 3.0 GHz
Maximum input power +5 dBm
Damage input power +30 dBm
Input attenuator 0 - 11 dB in 1 dB steps
Conversion loss 15 dB nominal (not relevant
to ACP ratio measurement)
LO input frequency 3.0 GHz - 6.8 GHz
LO input power range +9 dBm - +20 dBm
---For use with Agilent 8560E/EC, 8561E/EC, 8562E/EC, 8563E/EC, 8564E/EC, and 8565E/EC spectrum analyzers

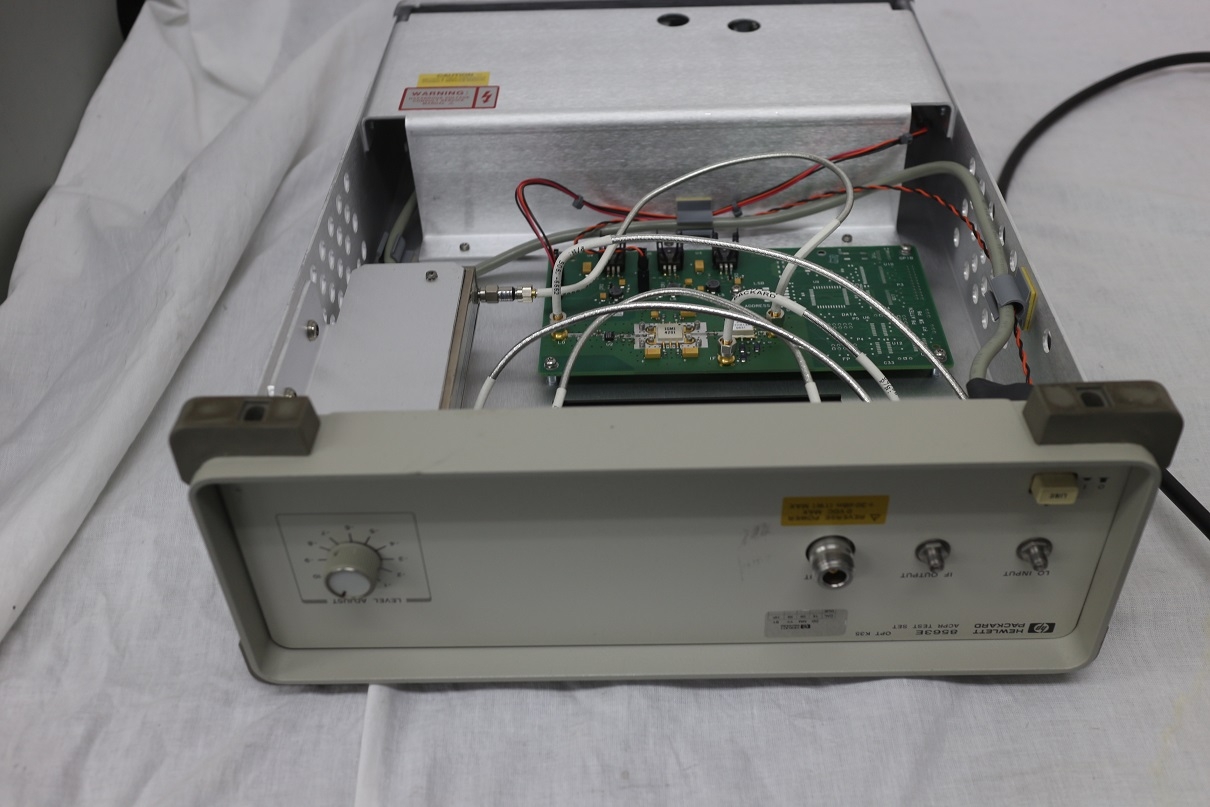

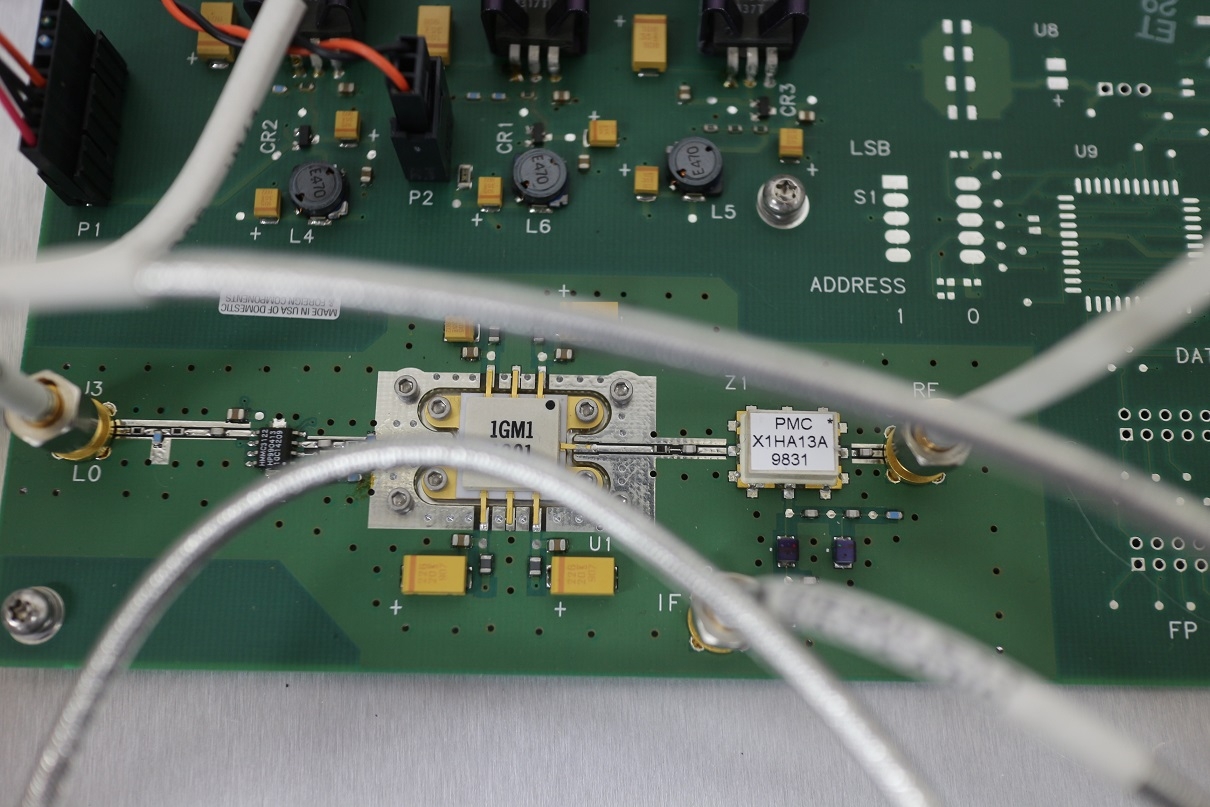

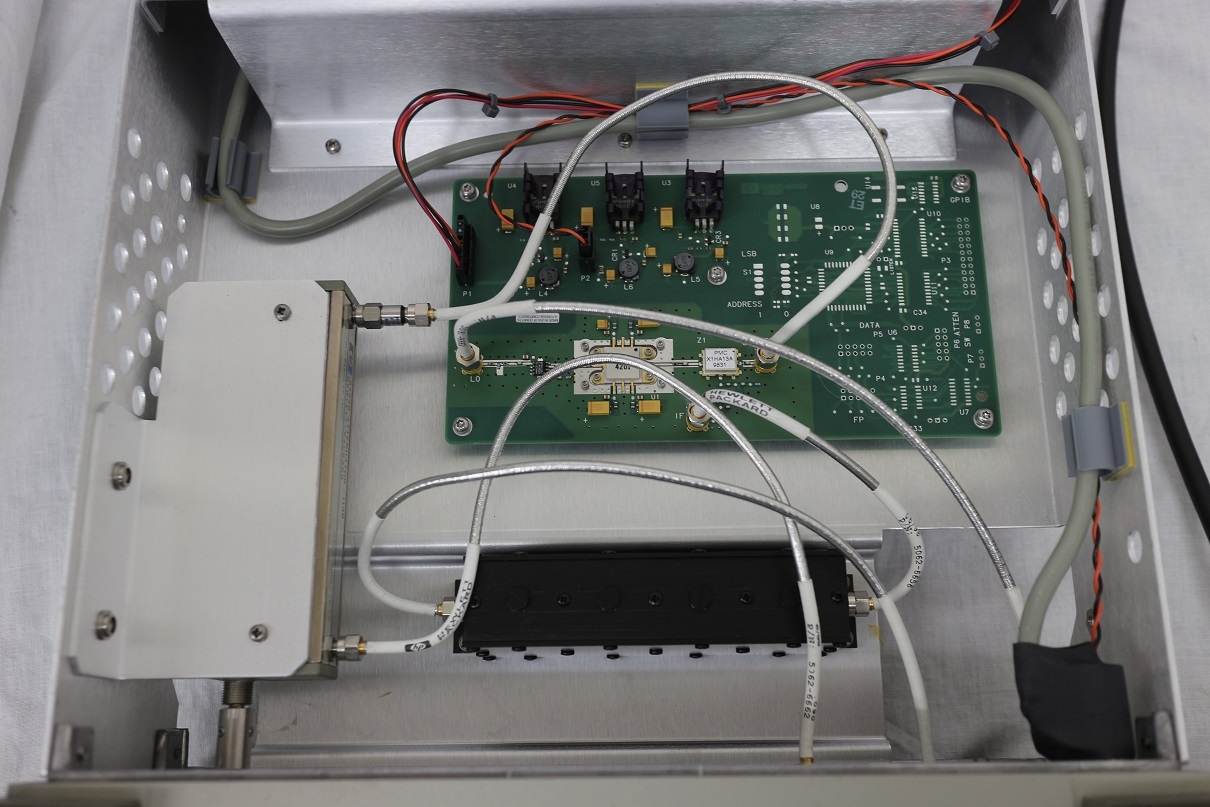

Parts
ATT 8494B DC-18GHz 11dB
LO Divider HMMC3122 12GHz 1/2
Amplifier 1GM1 4201
Mixer PMC X1HA13A
