ANRITSU

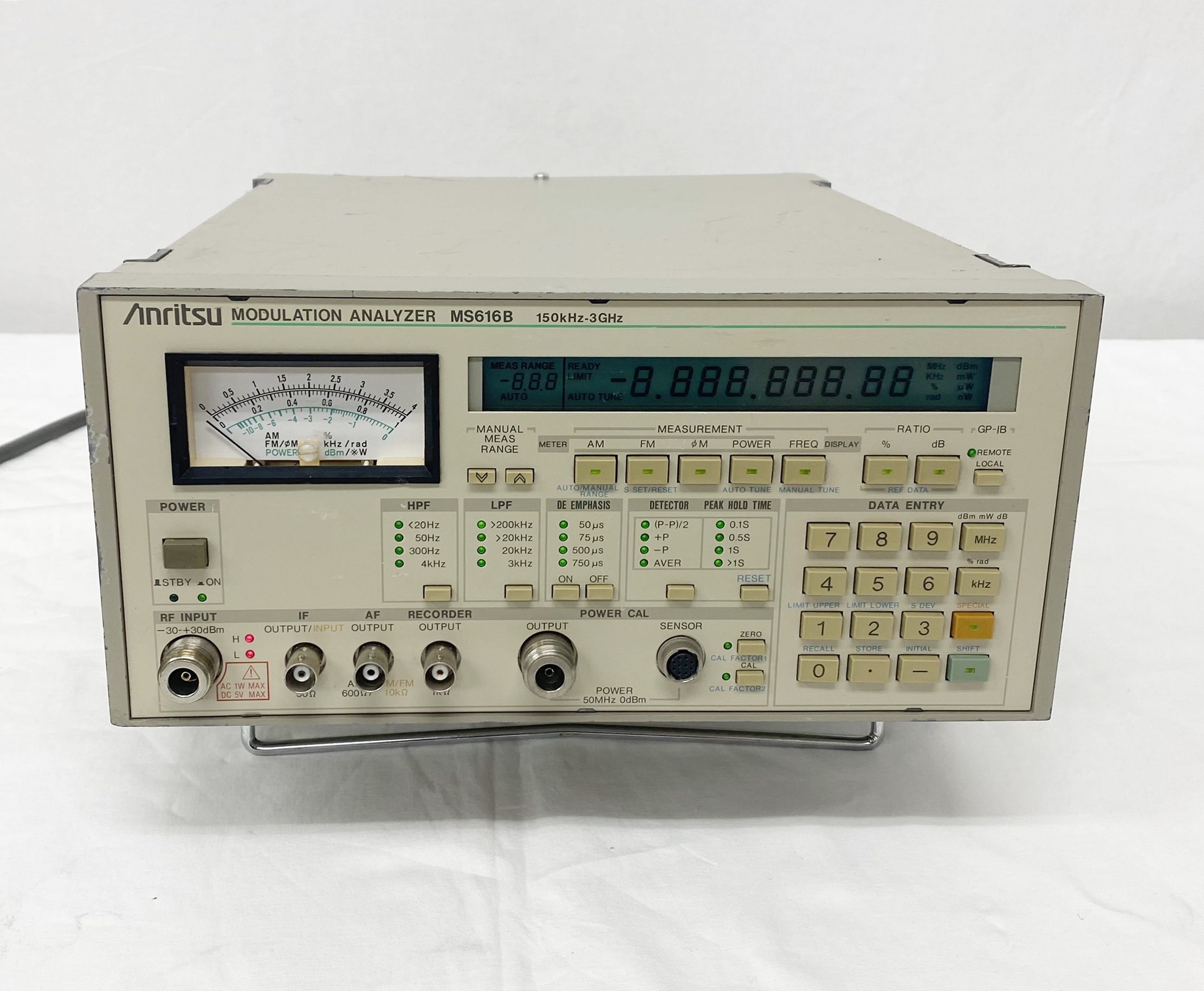

MS616B 3GHz Modulation Analyzer
198,000円(税込)
- 仕様
-

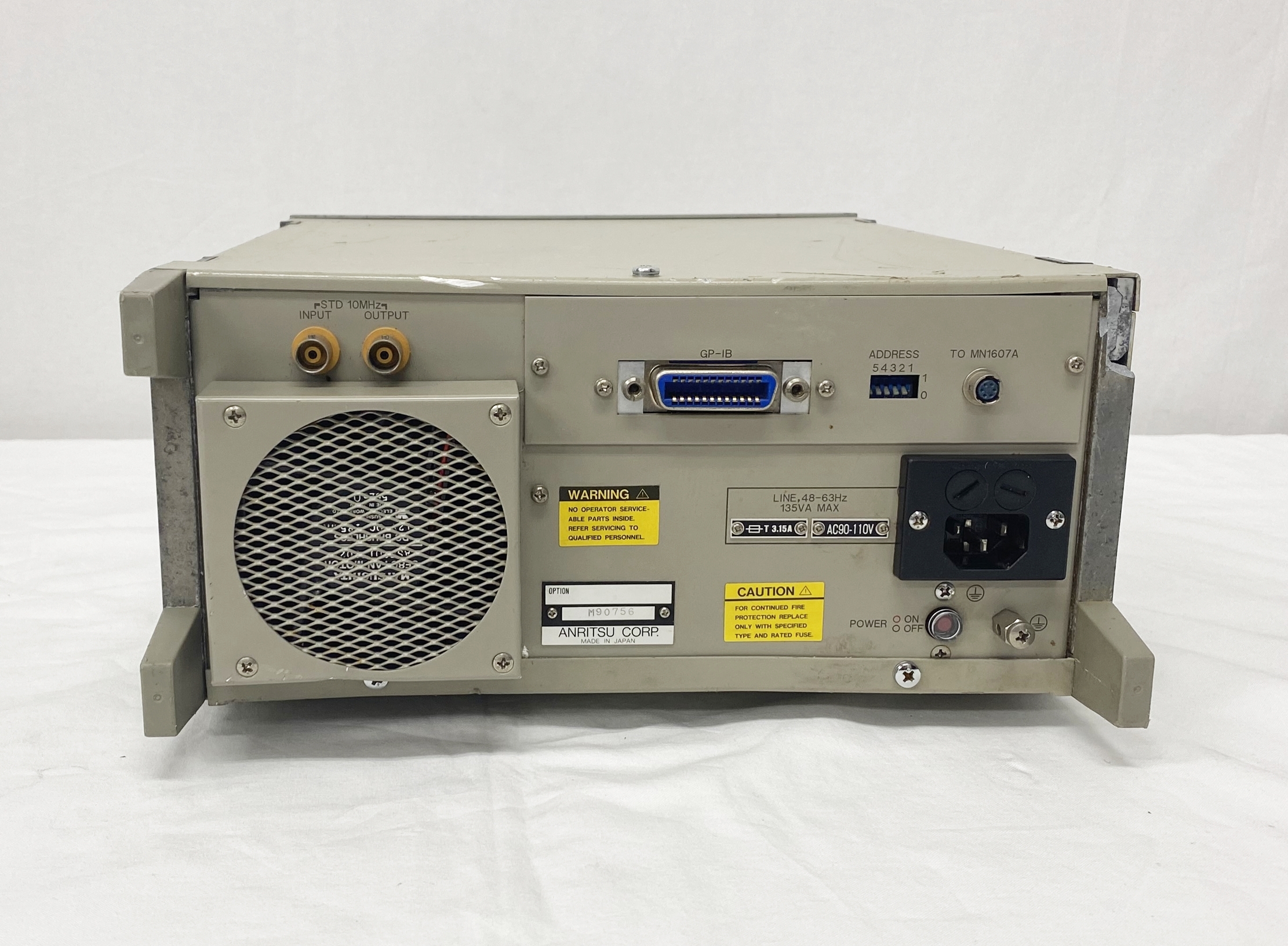

背面脚破損
150KHz-3000MHz RF-in -30-+30dBm 50ohms
FM:20Hz-200KHz Dev 400KHzp-p acc1% THD<0.05% RejAM20Hzpeak stereosepa>45dB
PM:200Hz-20KHz acc3% THD<0.1% rejAm<0.03rad Maxdev 400rad AM:20Hz-100KHz Max100% acc1% Flatness0.3% THD<0.3% rejFM<0.2% resAM<0.02%
FreqCounter:150KHz-3000MHz sens-30dBm res10Hz acc 2*10E-8/day
Power:0-30dBm acc2dB byPowerSensor -20-+20dBm acc0.5% Zeroset
Audio:Filter HPF20Hz/50/300/4KHz LPF 3K/20K/200KHz Deemphasis50u/75/500/750us Detector:+P/-P/(P-P)/2,Ave PeakHold 0.1/0.5/1s/>1s
Calibration AM/FM/Power GP-IB 133H284W351D 13Kg
定価147万円
