EXFO

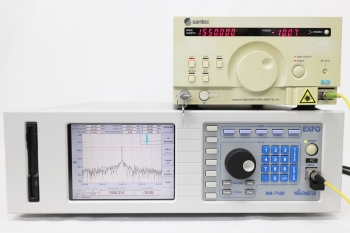

WA7100 Optical Channel Analyzer

935,000円(税込)

仕様: Wavelength
Wavelength Range:1270-1680nm
Absolute Accuracy:±1.5pm
Display Resolution:0.001nm
Units:nm (vacuum), THz

Power
Absolute accuracy:±0.5dB(@±30nm from 1310 and 1550nm)
Linearity:±0.3dB
Display resolution:0.01dB
Units:dBm, mW, μW

Optical Input Signal
Sensitivity,single line input:
-40dBm(0.1μW),1270-1600nm
-30dBm(1.0μW),1600-1680nm
Maximum input level(sum of all lines):+10dBm(10mW)
Maximum safe level(sum of all lines):+18dBm(63mW)

Dimensions:133.4mm * 431.8mm * 419.1mm
Weight:10.5kg
