Tektronix

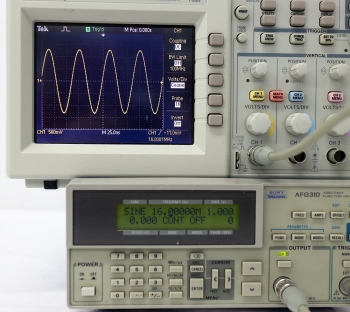

AFG310 16 MHz Arbitrary Function Generator

55,000円(税込)

仕様

1Ch
周波数:
1mHz～16MHz(サイン波/方形波)
10mHz～100KHz(三角波/ランプ波/パルス波)
出力:505mV～10Vp-p(50Ω)
波形:サイン波/方形波/三角波/ランプ波/パルス波/ノイズ波形/DC
変調:FM/FSK変調
GPIB I/F

Outputs channel-1
Standard Waveforms -
Sine, square, triangle,ramp, pulse, DC, and Noise.
Arbitrary Waveforms -
Waveform Length: 10 to 16384 points.
Vertical Resolution: 12 bits.
Sample Rate: 16 MS/s.
Non-volatile Memory: Four 16 K waveforms.
Output Frequency -
Sine, Square: 0.01Hz to 16 MHz.
Triangle, Ramp, Pulse: 0.01Hz to 100 kHz.
Noise (Gaussian): Maximum 8 MHz bandwidth
Output Characteristics –
Amplitude (into 50 ½): 50 mVp-p to 10 Vp-p.
Accuracy: ±(1% of setting + 5 mV) at 1 kHz, no
offset.
Weight - 5.4Kg
