HP

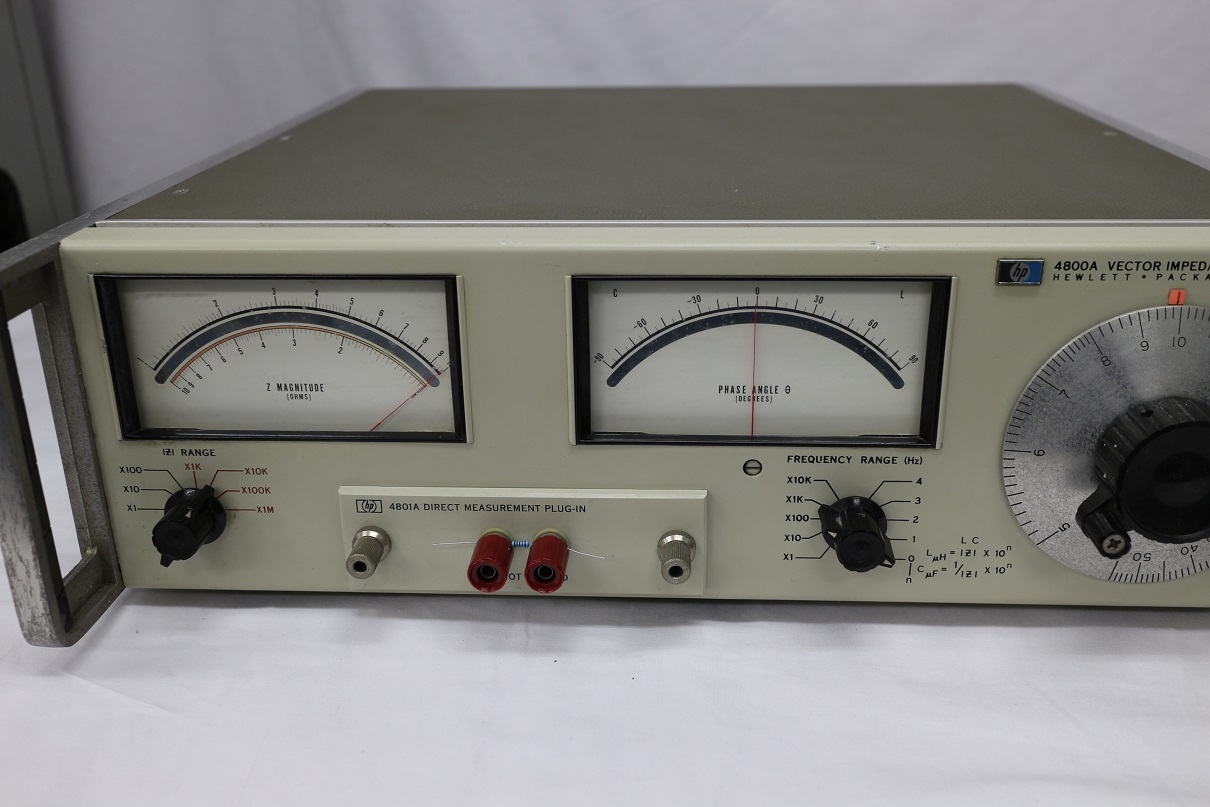

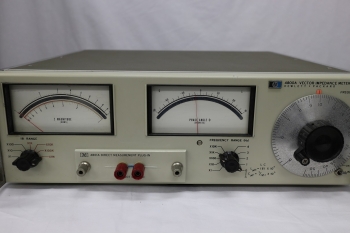

4800A 5Hz-500KHz Vector Impedance Meter
242,000円(税込)
- 仕様
-
5Hz-500KHz 5range acc4%
Output 0.2Vrms
Impedance 1ohm-1Mohms 7range 0.1ohm-10Mohms
Phase Angle +-90degC acc6%
Inductance Measure 1uH-100KH acc7%
Capacitance Measure 0.1pF-10,000uF acc7%
Signal Level 2.7mV(1ohm-1Kohm)-2.7V(10Mohm)
External OSC 0.8 Vrms
Recorder Output Freqency 0-1V (proportinal Dial )
Impedance 0-1V Pahse +-0.9 V
425*552*128 11Kg AC105-250V 27W
