Aeroflex

3416 250kHz-6.0GHz SIGNAL GENERATOR

935,000円(税込)

仕様

周波数レンジ
250 kHz to 6 GHz (3416)
分解能　1 Hz

レベル出力
レンジ（電子アッテネータ搭載）
≤ 10 MHz −140 to +13 dBm
≤ 2 GHz −140 to +16 dBm
≤ 3 GHz −140 to +16 dBm
≤ 3.75 GHz −140 to +13 dBm
≤ 4 GHz −140 to +10 dBm
≤ 6 GHz −140 to +8 dBm
分解能　0.01dB

信号純度
高調波：
< −30 dBc, typically < −40 dBc for output levels ≤ +7 dBm

非高調波：オフセット > 10 kHz:
< −70 dBc for carrier frequencies ≤ 3 GHz
< −60 dBc for carrier frequencies ≤ 6 GHz

変調
FM, AM and ΦM IQ

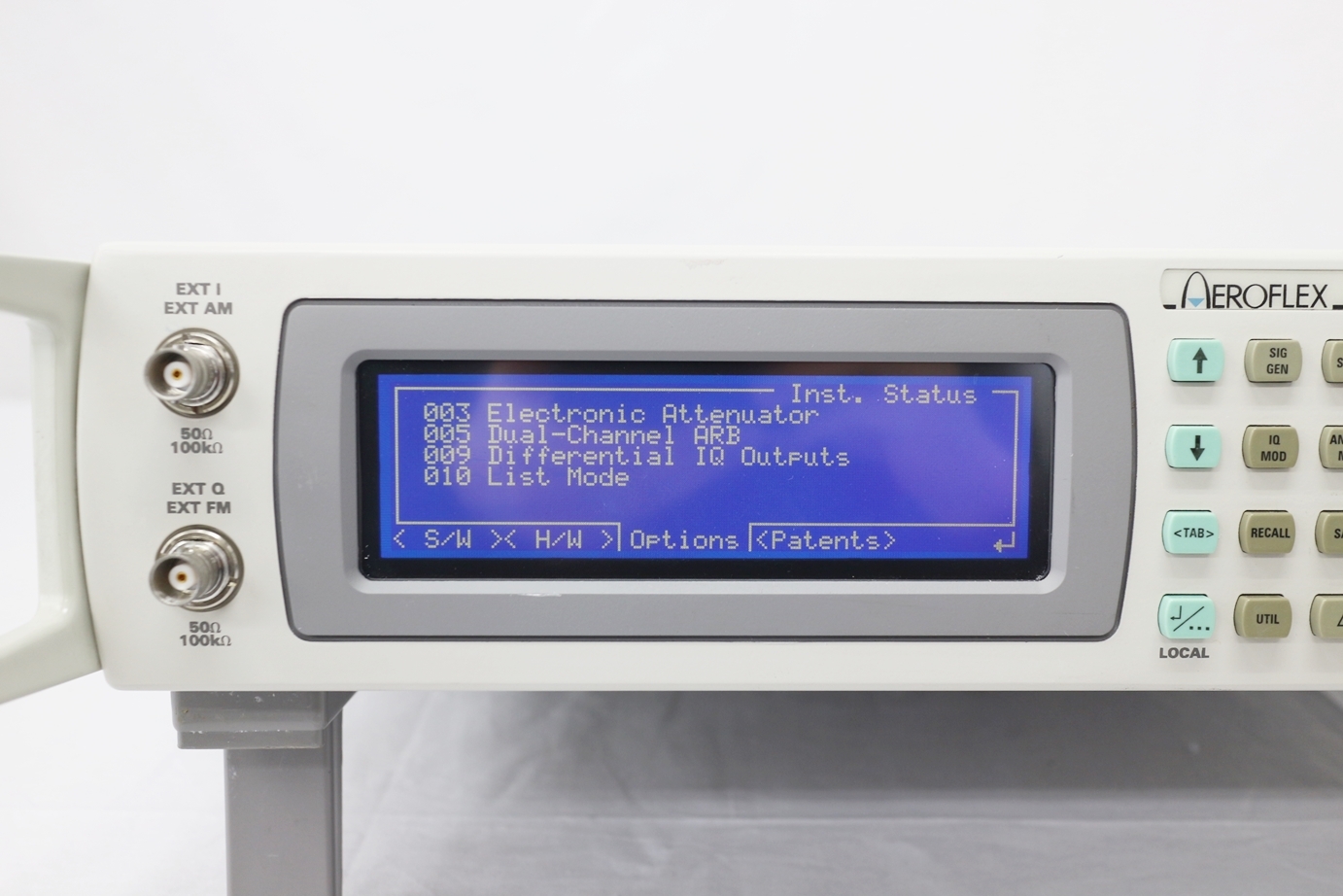

オプション
Option 003 Electronic attenuator
Option 005 ARB waveform generator
Option 009 Differential I/Q output
Option 010 List Mode

CARRIER FREQUENCY
250 kHz to 6 GHz (3416)
Resolution: 1 Hz
Accuracy: Equal to the frequency standard accuracy

RF OUTPUT
Range: Electronic attenuator
≤ 10 MHz −140 to +13 dBm
≤ 2 GHz −140 to +16 dBm
≤ 3 GHz −140 to +16 dBm
≤ 3.75 GHz −140 to +13 dBm
≤ 4 GHz −140 to +10 dBm
≤ 6 GHz −140 to +8 dBm

Resolution: 0.01 dB

SPECTRAL PURITY
Harmonics: < −30 dBc, typically < −40 dBc for output levels ≤ +7 dBm
Sub- and non-harmonics: For offsets > 10 kHz:
< −70 dBc for carrier frequencies ≤ 3 GHz
< −60 dBc for carrier frequencies ≤ 6 GHz

Modulation
FM, AM and ΦM IQ

Option 003 Electronic attenuator
Option 005 ARB waveform generator
Option 009 Differential I/Q output
Option 010 List Mode

付属品

Accessory(付属品):Power cord(電源コード)
