ADVANTEST

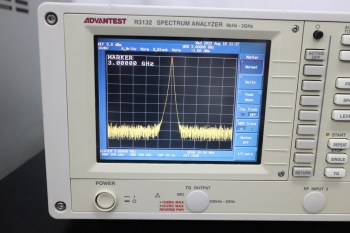

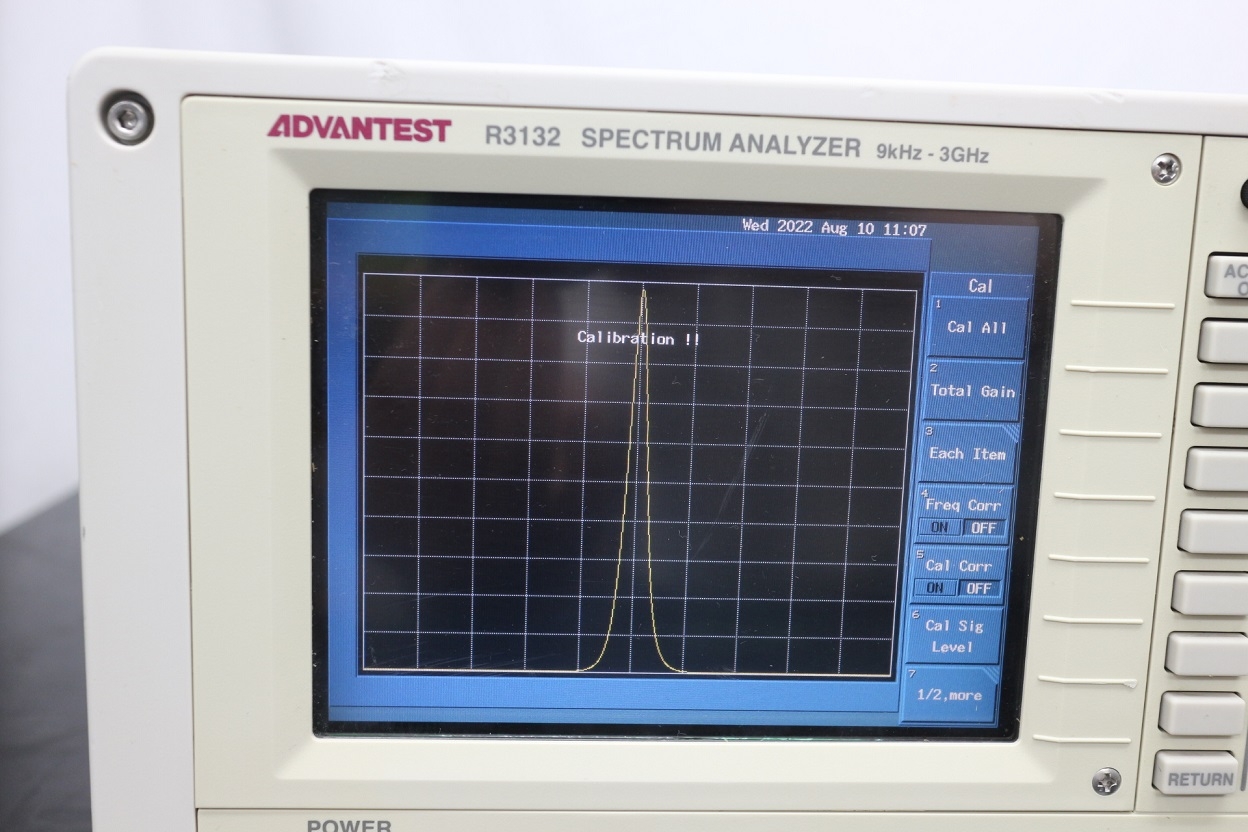

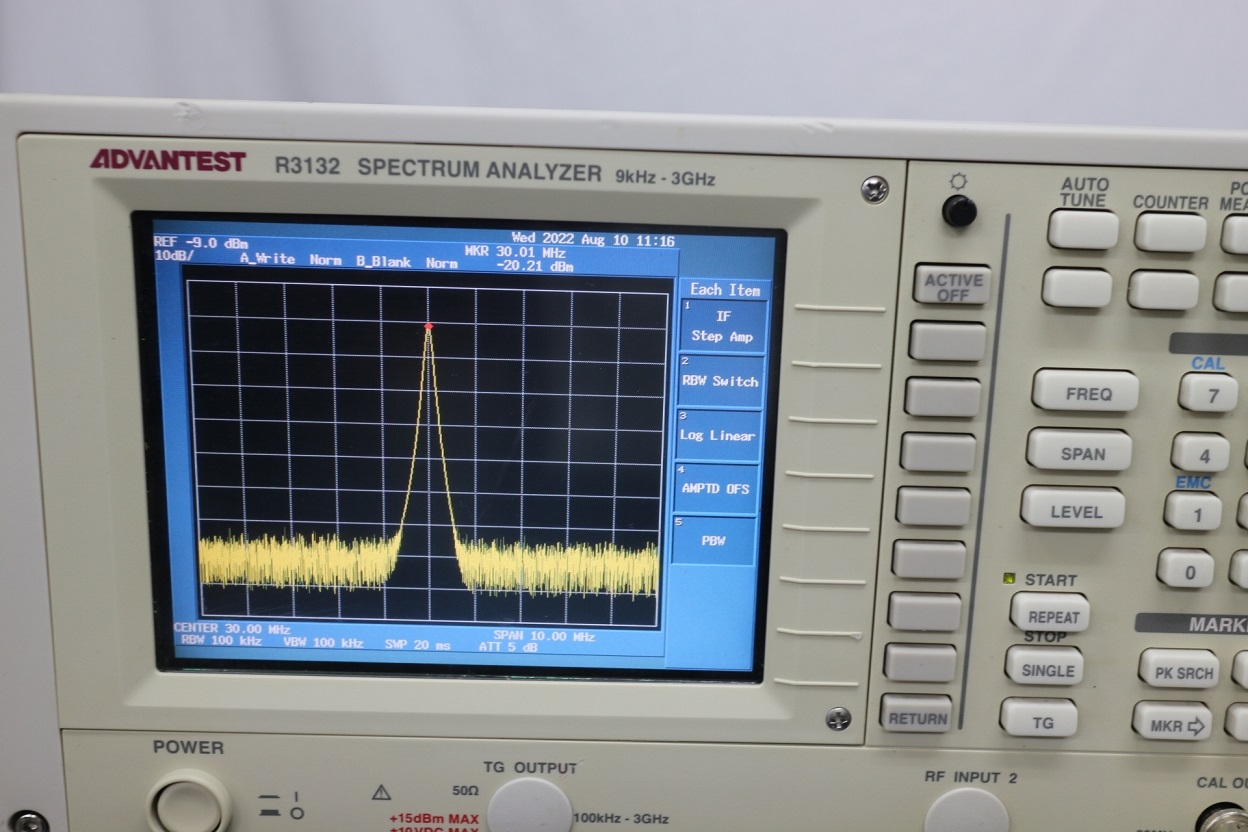

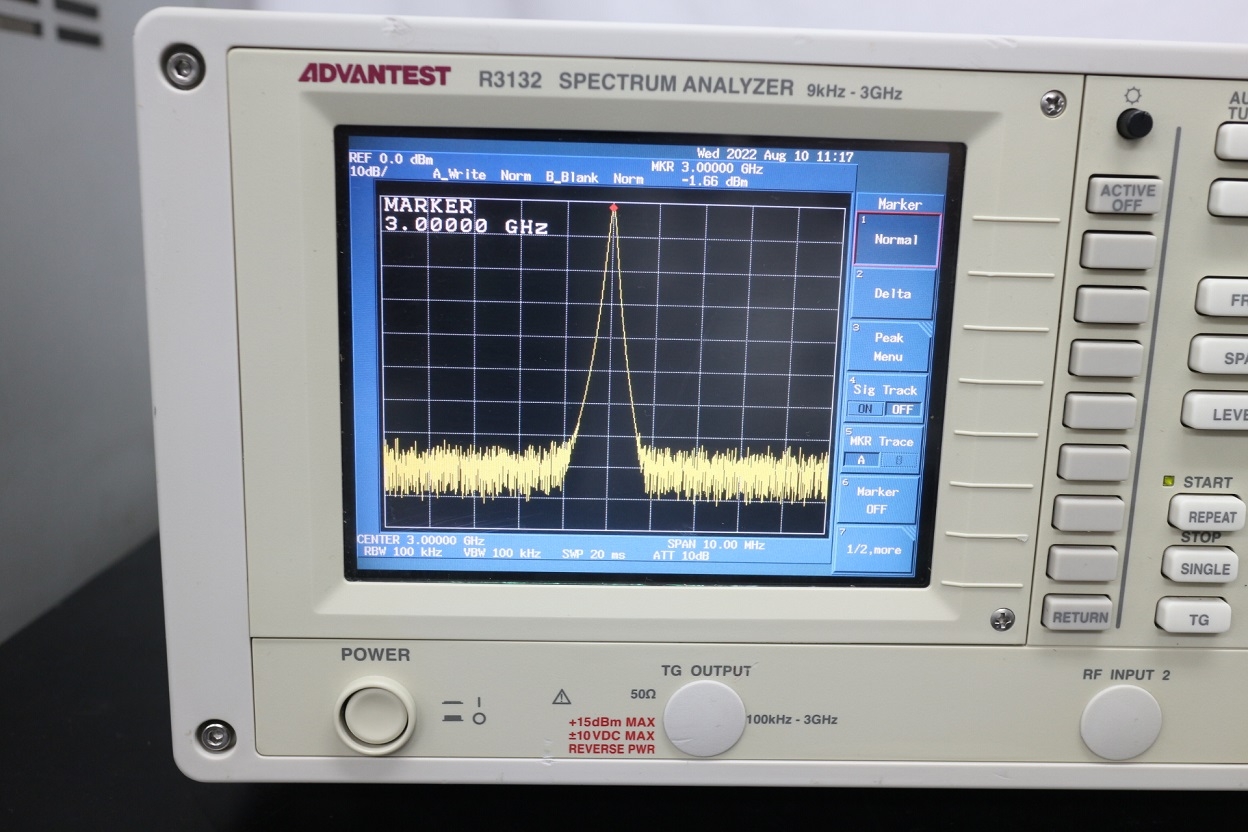

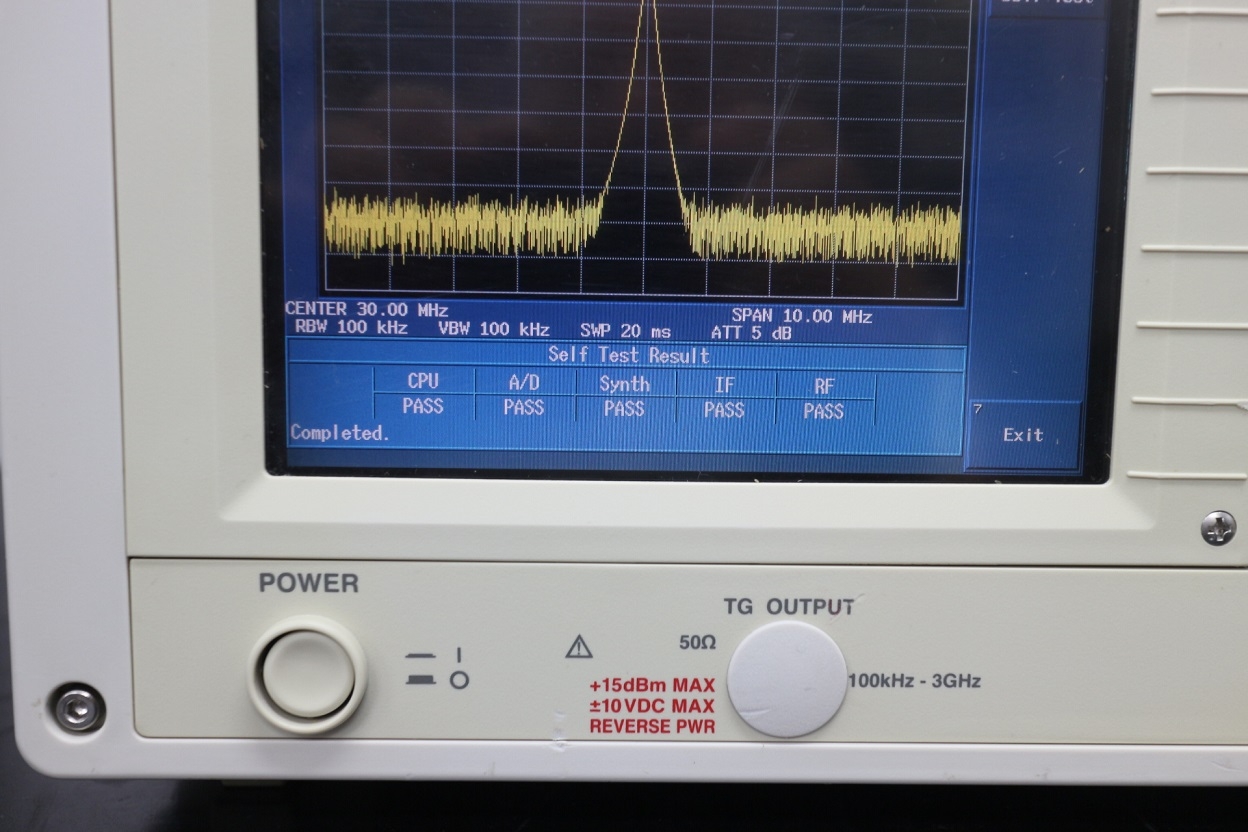

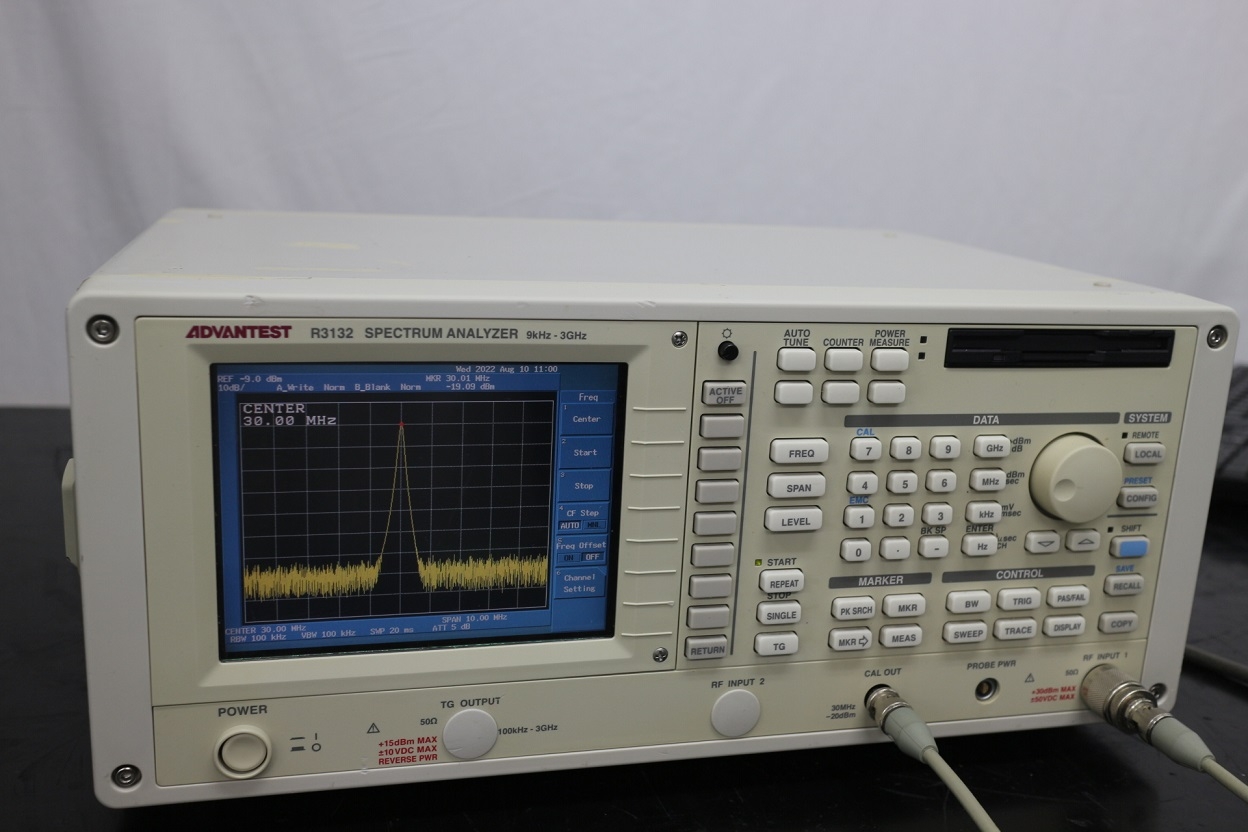

R3132 9KHz-3GHz Spectrum Analyzer
385,000円(税込)
- 仕様
-
9KHz-3GHz Markerres1Hz-1KHz Ref2ppm/year
Span:1KHz-3GHz acc1% ResFM<60Hz res1KHz-3MHz 1.3step VideoBW:10Hz-3MHz 1-3-10step
Input 50ohms N(f) Max+30dBm RefLev+40--64dBm
PreAMP on/off Log/Lin 1,2,5,10dB/div ATT:0-50dB 5dBstep Sweep:20ms-1000s
Trigger:Free,Video,EXT,TV,Line
NoiseLevel-132dBm(AmpON) Calsignal:30MHz-20dBm 10MHzRefin EXTTrigger Phoneout ProbePower
AutoTune Pass/Fail EMI QP Power(AVE,Total) ACP OBW dBc/Hz %AM ColorLCD

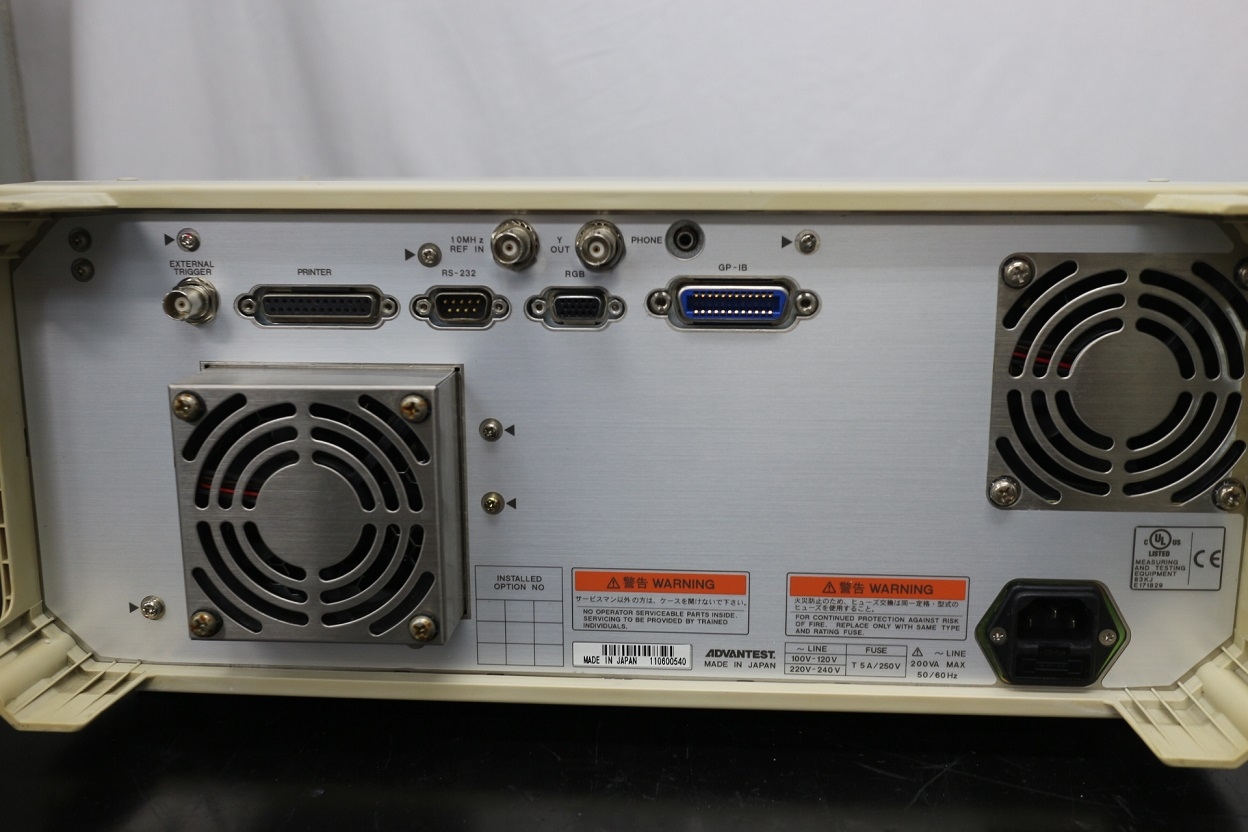

GP-IB RS232C VGA PrinterD-sub25 FDD3.5inch MS-DOS
