EIP

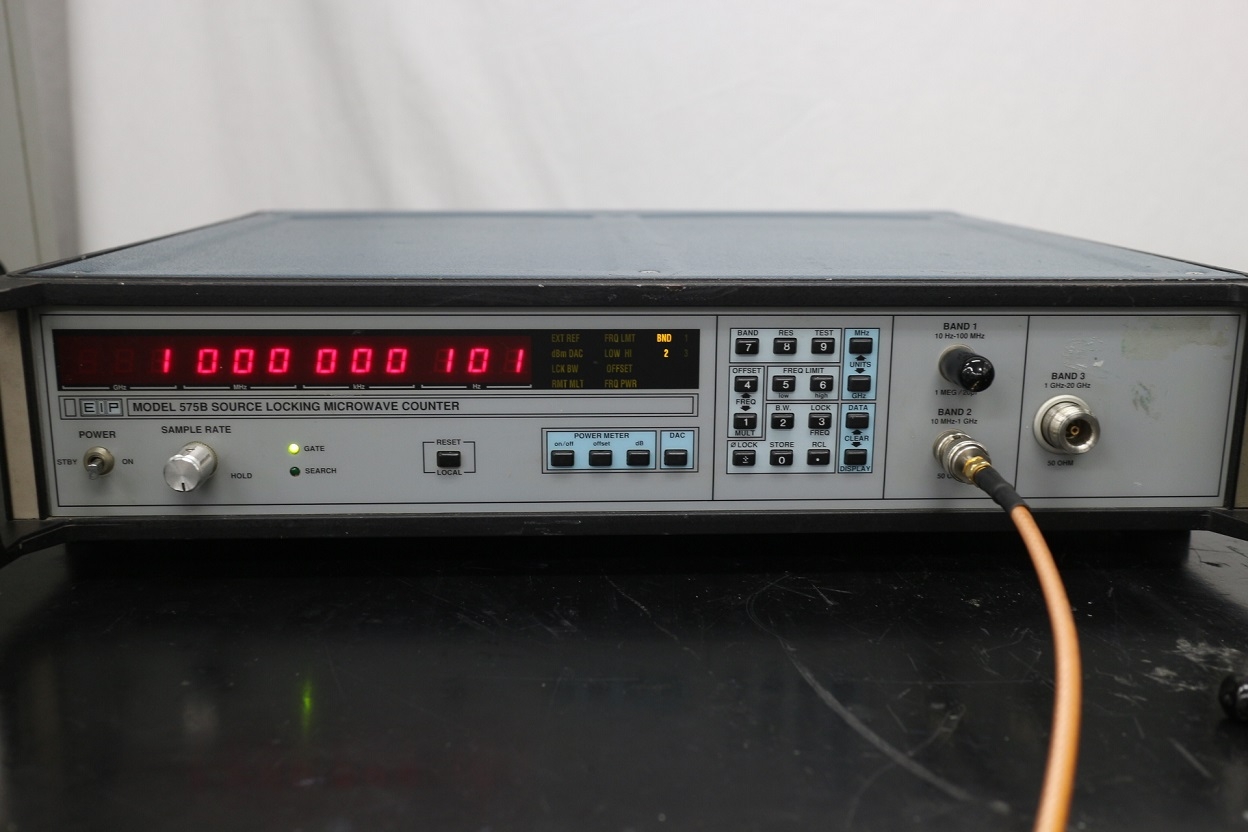

575B 20GHz Source Locking Microwave Counter
242,000円(税込)
- 仕様
-
3 BAND Frequency Range
BAND-1
10 Hz-100MHz 25mV rms 1MΩ/20pF BNC (female) DC
Max 120 Vrms Damage 150Vrms
BAND-2
10 MHz-1GHz -20dBm 50Ohms BNC (female) AC
Max +10 dBm Damage +27 dBm <50mS
BAND-3
1-20 GHz -30dBm 1-12.4GHz -25dBm 12.4GHz-20GHz
50 Ohms N-female AC Max +10 dBm Damage +45 dBm (30 watts) continuous +53 dBm (200 watts) peak pulsed
(<1uS PW, 0.1% duty) <200ms
FM 20 MHz P-P up to 10MHz rate
Maximum Tracking Speed >800MHz/sec typical
VSWR 2.5:1 typical
Reference 10MHz 10E-6/year 10E-7/month
GP-IB Display 12digits LED
AC100-240V 60VA 11.8Kg
89 mm H x 425 mm W x 356 mm D
