HP

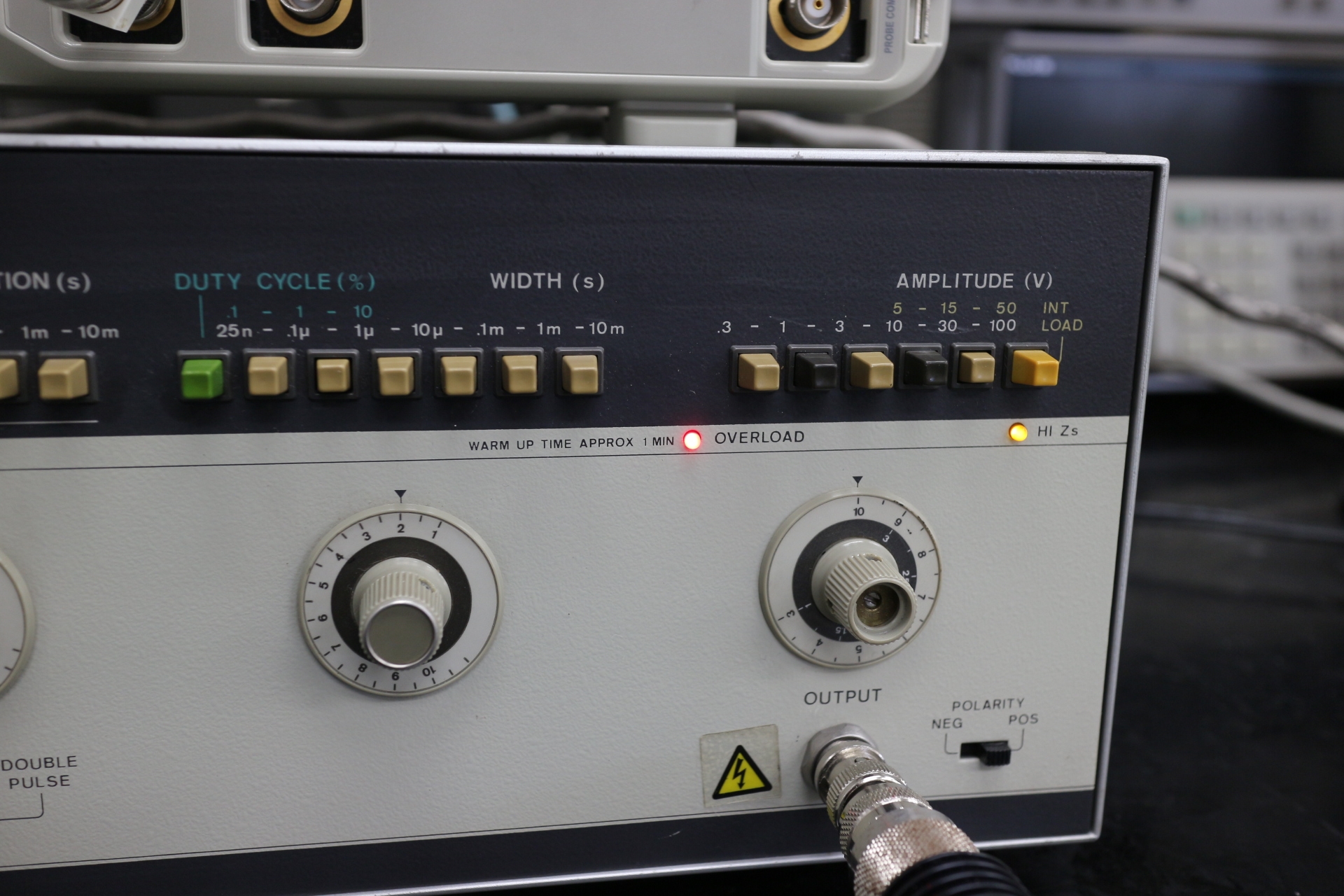

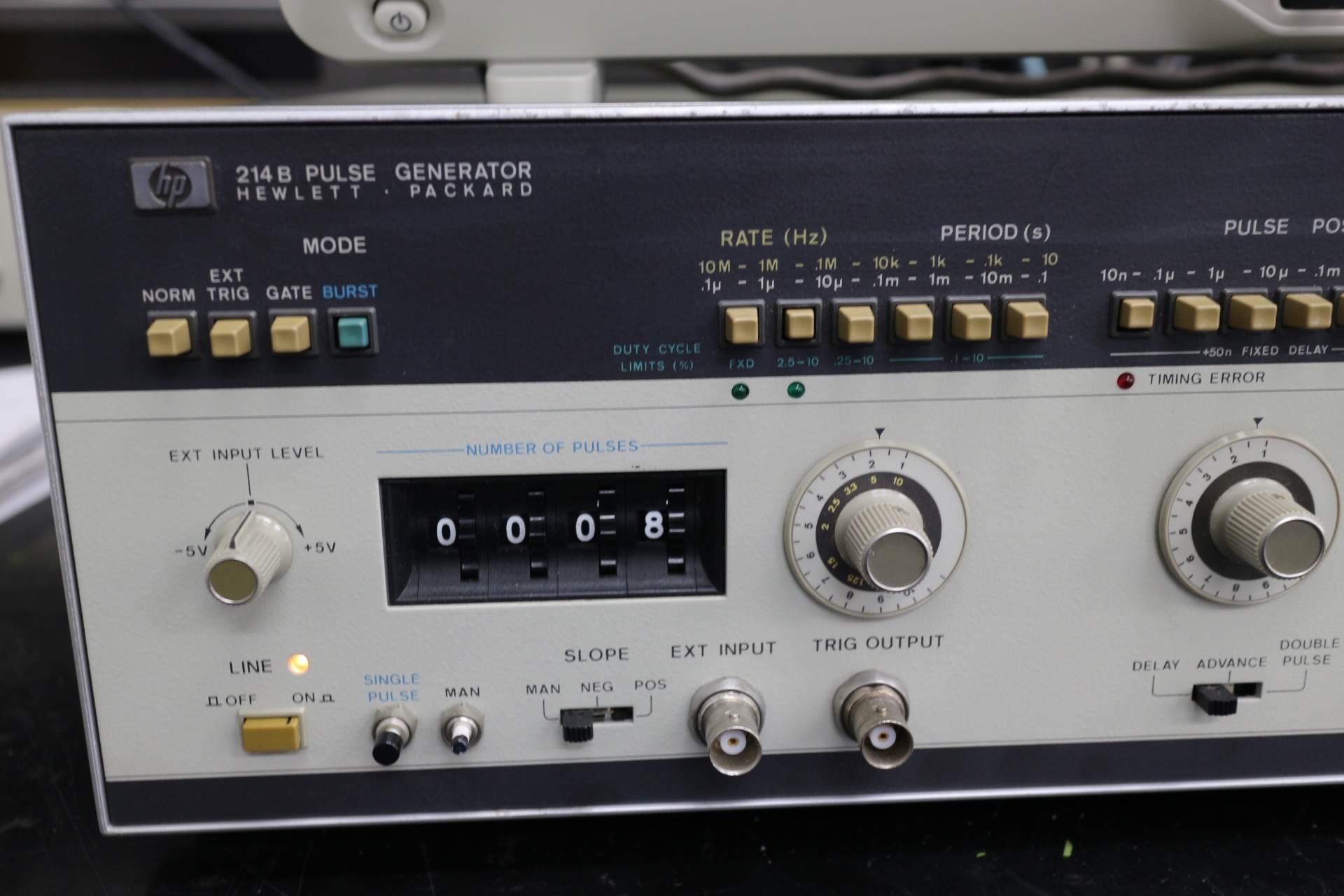

214B /001 10MHz 100V 200W Pulse Generator
220,000円(税込)
- 仕様
-
10Hz-10MHz 100V 200W Pulse Generator
Amplitude 0.3-100V Output BNC(f) 50ohms
30-100V(Hi-impedance/50ohms)
Polarity+/- Trr/Tff<15ns Timming 10Hz-10MHz 6Range
30-100V <4MHz
Delay/Proceed 10ns-10ms 5Range
Width:25ns-10ms 6Range
Duty>50% FixDuty 8%,0.1-10%
DoublePulse Trigger-out Gate/Ext ConstantDuty2.5-10%
Manual:OnePulse/Gate
OPT001:Counted Burst 1-9999 min200ns
AC100-240V 360VA 133H426W422D 13.6Kg
定価99.1万円
