YOKOGAWA

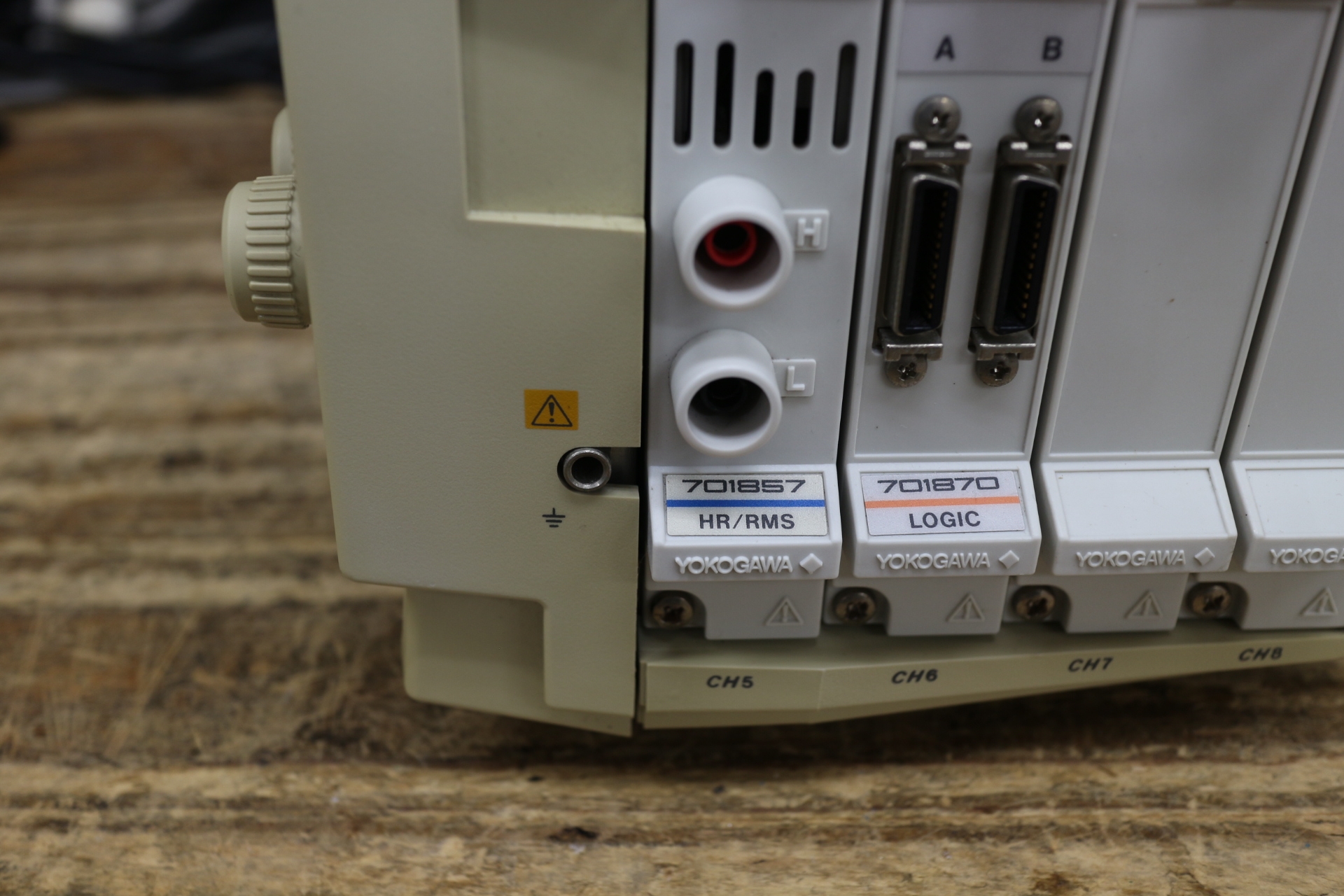

701857 HR RMS High Resolution RMS Isolation Module

71,500円(税込)

仕様

CH1 Input DC/AC/GND/RMS-DC/RMS-ACA/D
resolution 16bit (4000LSB/div）
Sampling Rate 100kS/s DC-40KHz
Isolation Range 50mV-200V/div (1-2-5step)
Max input 850V（DC+ACpeak）
Max Common mode (Input GND - Case) 500Vrms（CAT I&II）600Vrms
Input Impedance 1Mohm Banana Plug
Zero Temp coeffect +-0.02%/degC
Gain +-0.02% /degC
Input Filter OFF/100Hz/1kHz CMRR80dB（50Hz/60Hz）
RMS mode
Frequency DC,40Hz～10KHz
DC acc +-1% of 8div
AC acc SINwave +-1.5% of8div(40Hz-1kHz) Crest<2
+-2% of 8div (40Hz-1kHz)crest<3
+-3% of 8div (40Hz-1kHz）
Responce Rise (0-90%) 100ms(type) Fall(100%-10%) 200ms(type) Crest<3
