Tektronix

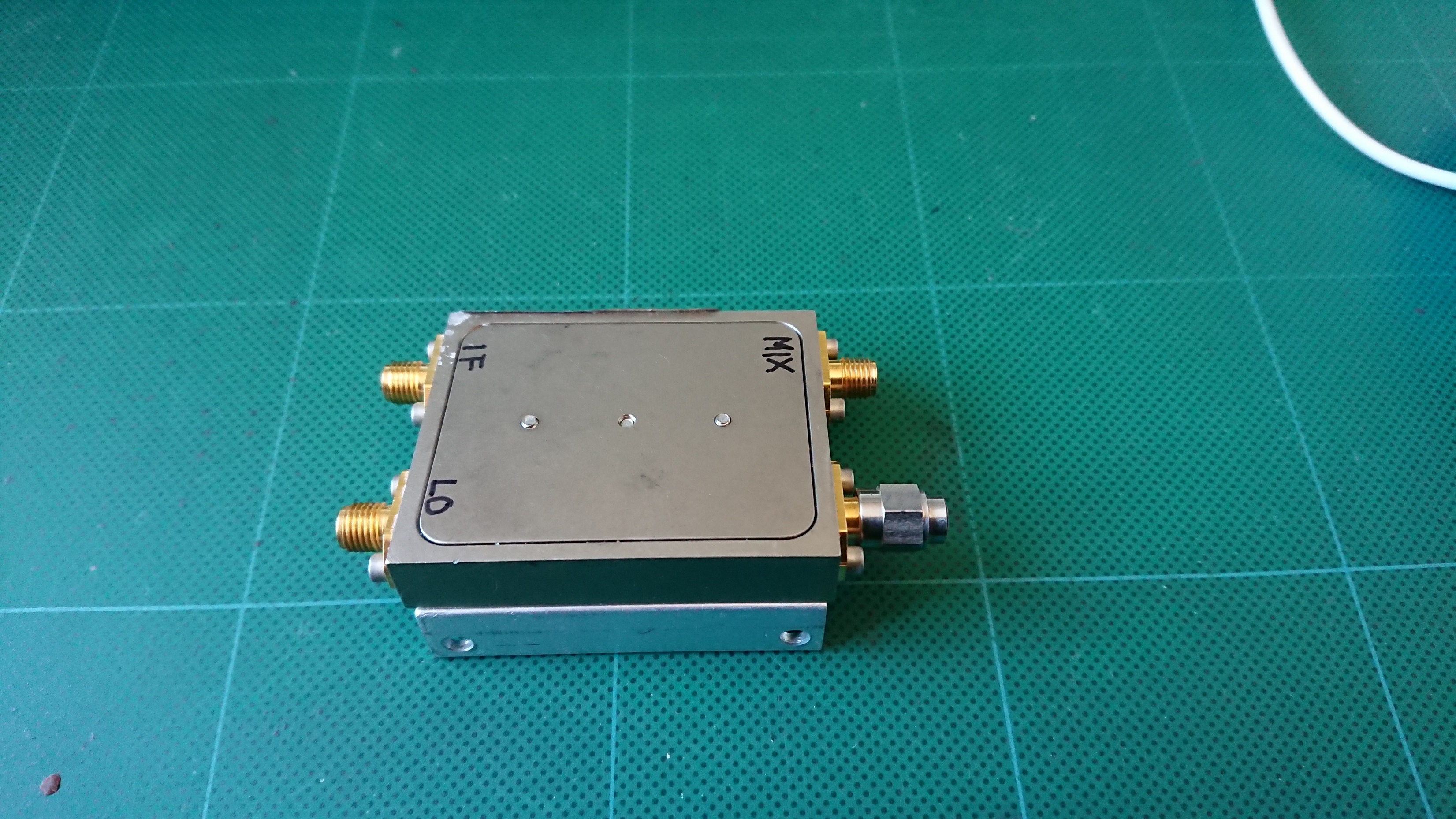

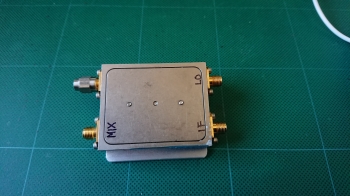

119-1095-00 Diplexer
24,200円(税込)
- 仕様
-
Diplexer
LO input SMA(f) 50ohms 2GHz-10GHz
IF Output SMA(f) 50ohms DC-800MHz (-3dB) DC-Bias
Mixer In/Out SMA(f) 50ohms
Isolation LO->IF about 20dB
70*50mm*10mm
mount L angle 43mm screw holes
