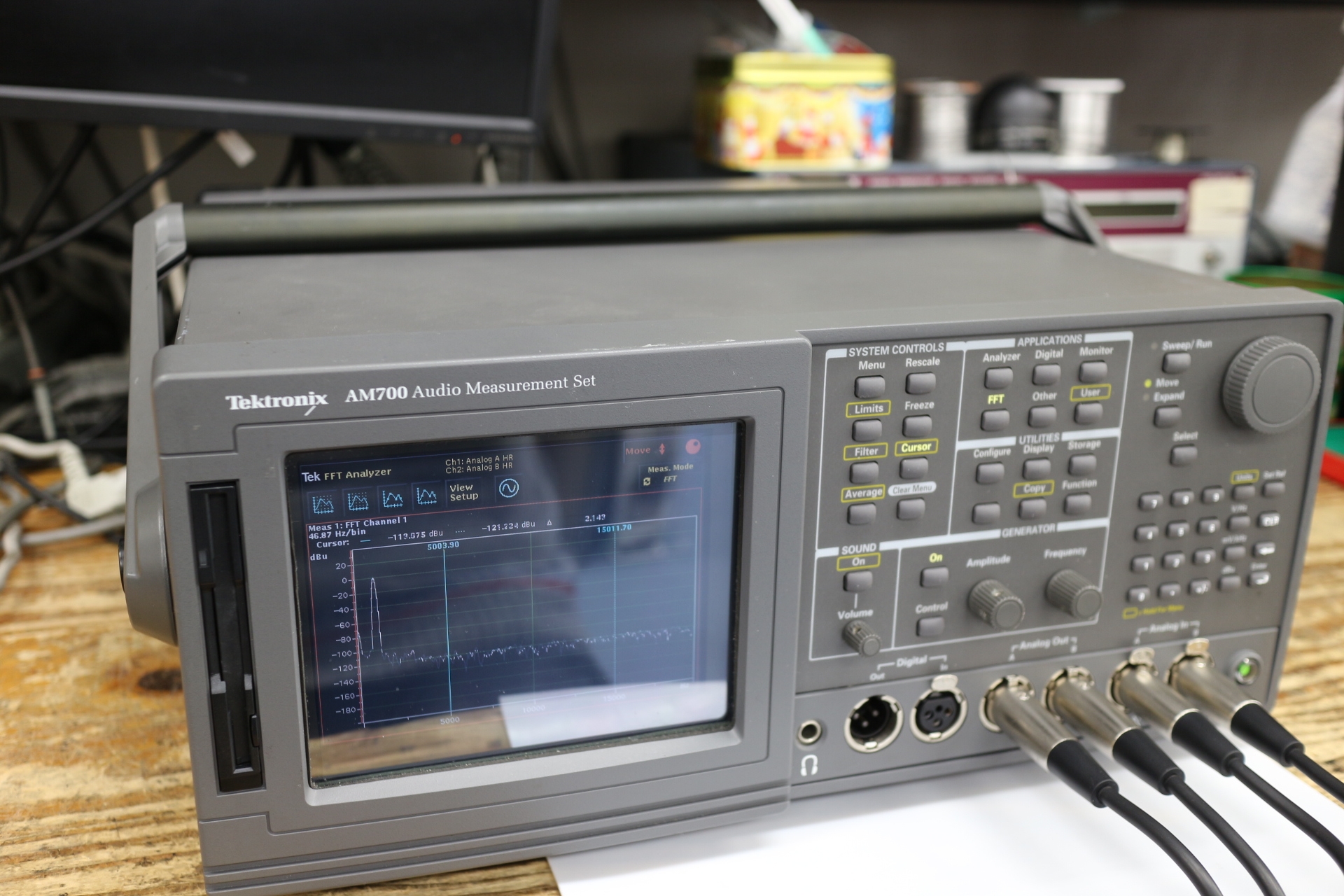

Tektronix

AM700 80KHz 2ch Audio Analyzer

495,000円(税込)

仕様

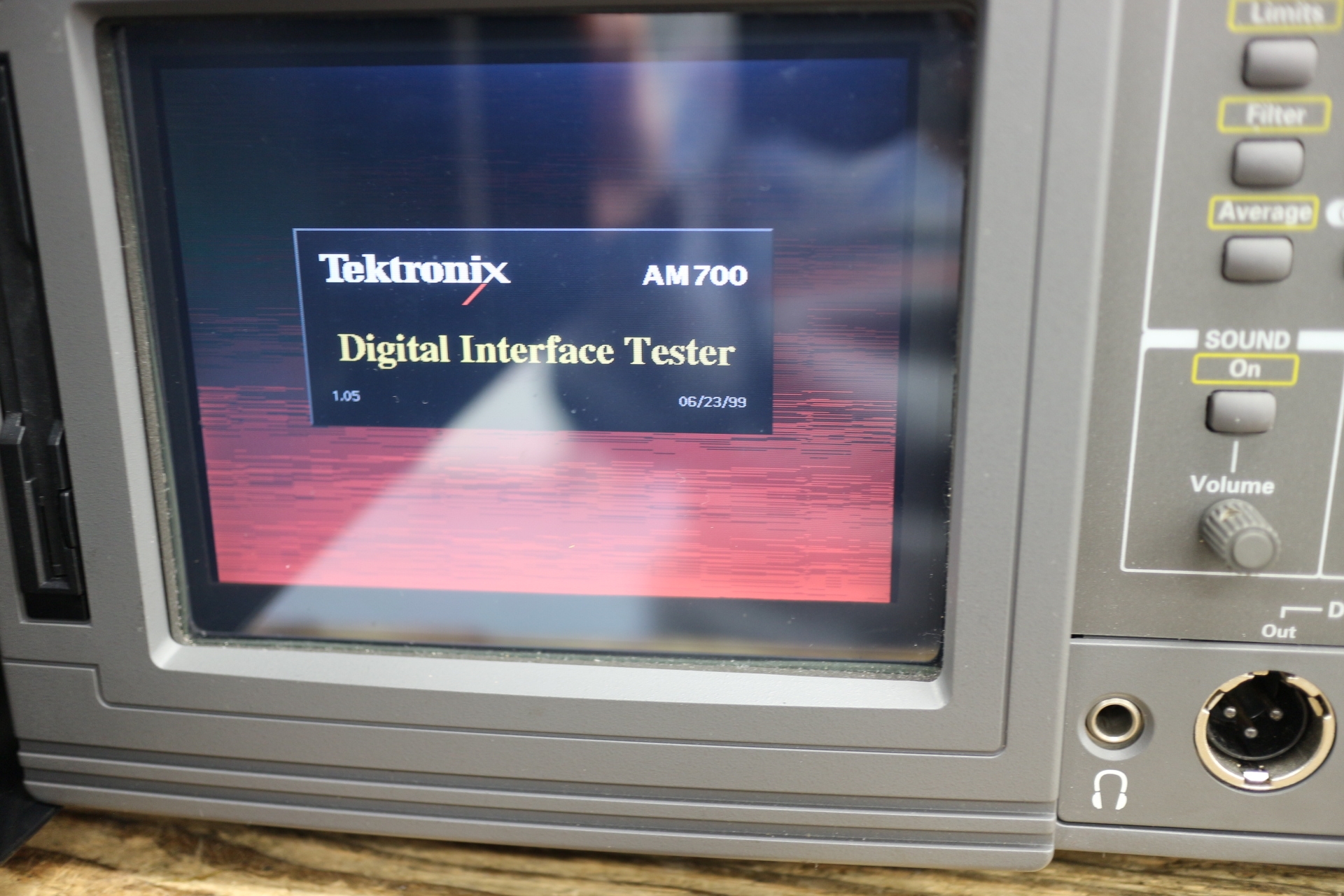

デジタル機能不良　測定不可
Digital Analyzer out of order
do not start Software nemu

2ch 10Hz-80KHz Audio Analyzer
Analyzer INPUT BAL XLR 150ohms,600ohms,200Kohms
Max 35Vrms +30dBm(600)
Range -22dBu(62.5 mVrms)-+44dBu(125Vrms) AutoRange
CMRR >50dB type 80dB Isolation >90dB(200K) >140dB(600)
CrossTalk >-88dB type >-100dB
Acc 0.1dB(10-20KHz) 0.15dB(20-80KHz) 1.0dB(1mV-10mV)
Phase acc +-1deg ADC sampling 6.144MHz

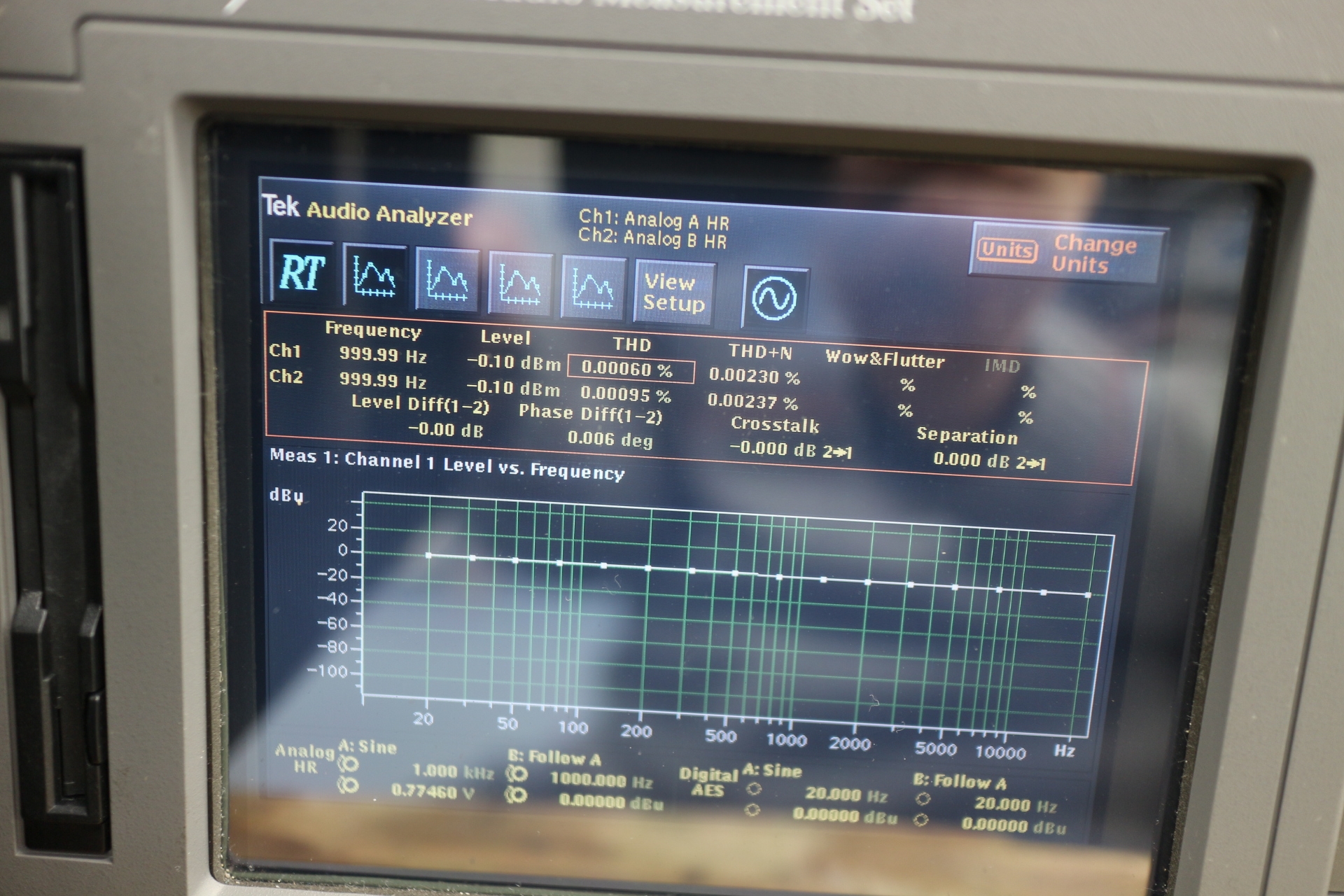

THD+N <0.03% HI resolution <0.003% type <0.0015%
Analog Generator
2ch BAL/UNBAL switched 600ohms,150ohms,10ohms Mono/Stereo DAC
SIN wave 10Hz-79.9KHz res0.1Hz max +28dBu min 1mV res 1uV Flatness0.1dB
THD+N <0.01% type 0.008%

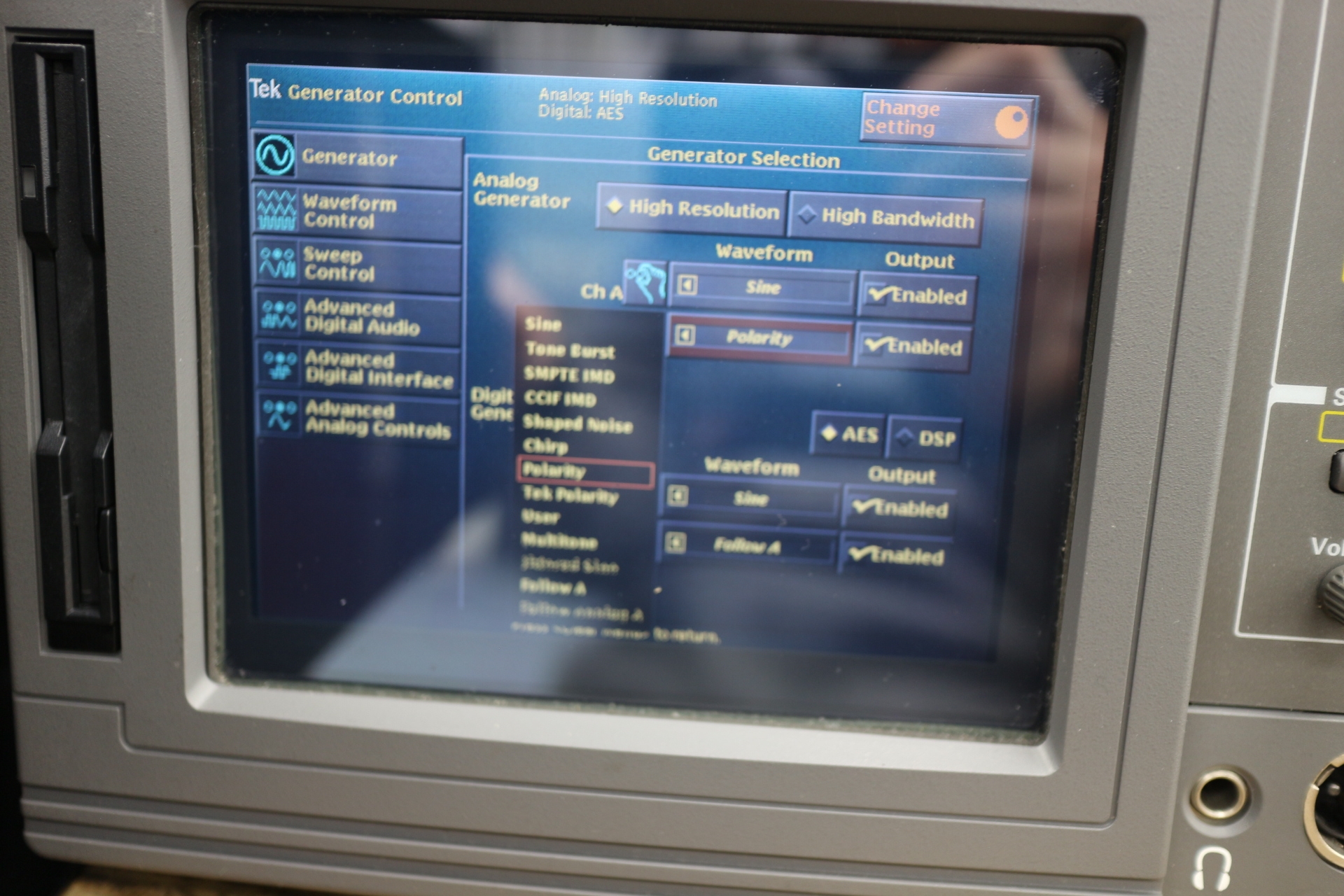

Wave form SIN/Tone Burst/SMPTE/CCIF/Shaped Noise/Chirp/Polarity/Tek Polarity/Arbitrary/MultiTone/Jittered SIN
Filter LPF 15K/20K/22KHz HPF 400Hz A,C,B,F,CCIR,CCIR-ARM

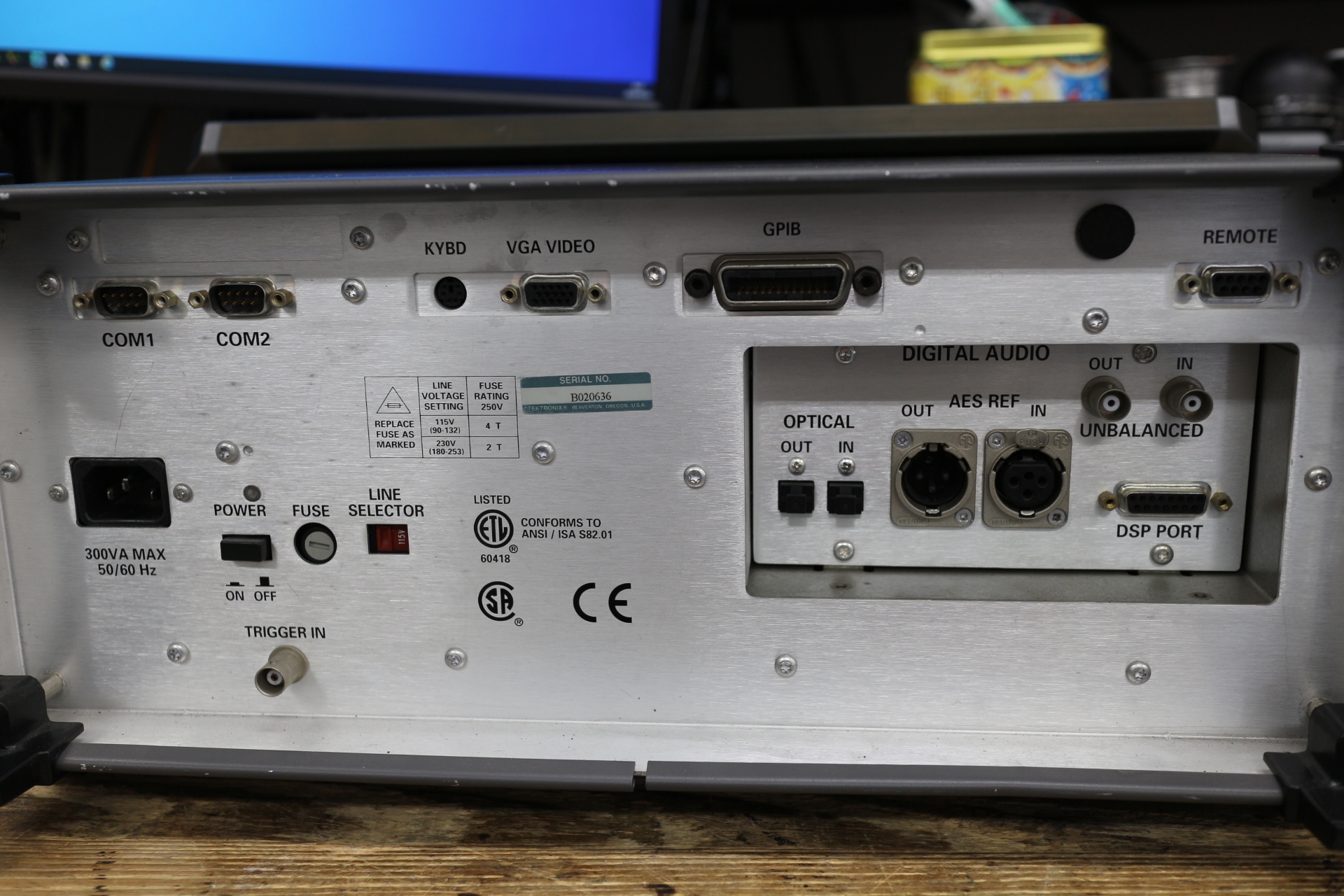

Color LCD GP-IB VGA PS/2 COM1,2(DB9 RS232C)
3.5FDD MS-DOS 1.44MB FlahMM 8MB
203H462W482D AC 90-253V 50/60Hz 180W 17.7Kg
