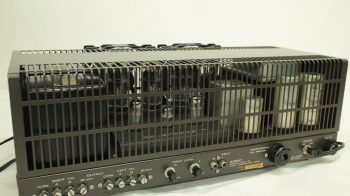

Luxman

A3600 Stereo Power Amplifier with FAN

176,000円(税込)

仕様

Output Power 50W+50W(4ohm,8ohm,16ohm)
THD TotalDistortion >0.5% (50W,1kHz) >1%(50W,55Hz-10kHz)
Frequency Responce 10Hz-40kHz >-1dB
Sensitivity 850mV Gain 24 (0.85*24=20Vrms)
Input Impedance 80Kohms Dumping Fuctor 14(8ohm,1kHz)
Noise > 0.5mV
Vacume Tube 8045G:X4 6240G:X2 6AQ8:X1
AC100V 50/60Hz 300W 400W(Max power)
Size W465xH168xD206mm Weight 17.0kg
Bias Current 75mA 37.5W(500V)*4 75W/ch ClassA
Distortion
300mV 1V 3V 10V
L 1KHz 0.026 0.008 0.014 0.053
100Hz 0.060 0.020 0.020 0.062
10k　0.065　0.022 0.016 0.057
R 1KHz 0.045 0.014 0.023 0.060
100Hz 0.10 0.015 0.020 0.420
10K 0.042 0.014 0.016 0.060

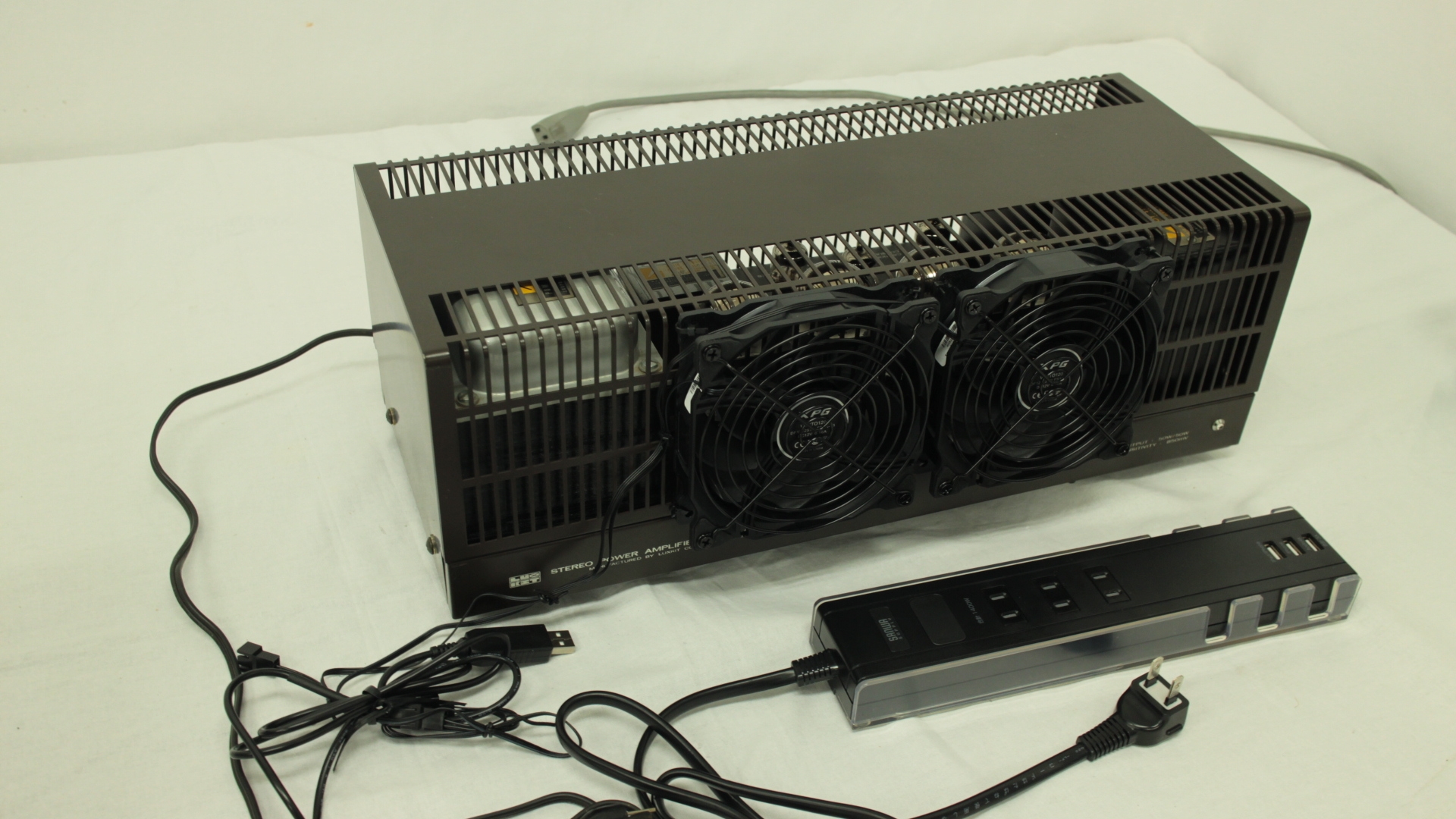

Forced FAN 120mmX120mm 12V Silent FAN
Plate Temp 250degC -> 150degC

付属品

Table TAP SANWAB45BK 100V 1400W USB 3port 3A
USB 5V-12V Converter 12V 0.5A
FAN 120X120mm 1200rpm Noise 23dBA DC12V 160mA MTBF 60000H
