Advantest

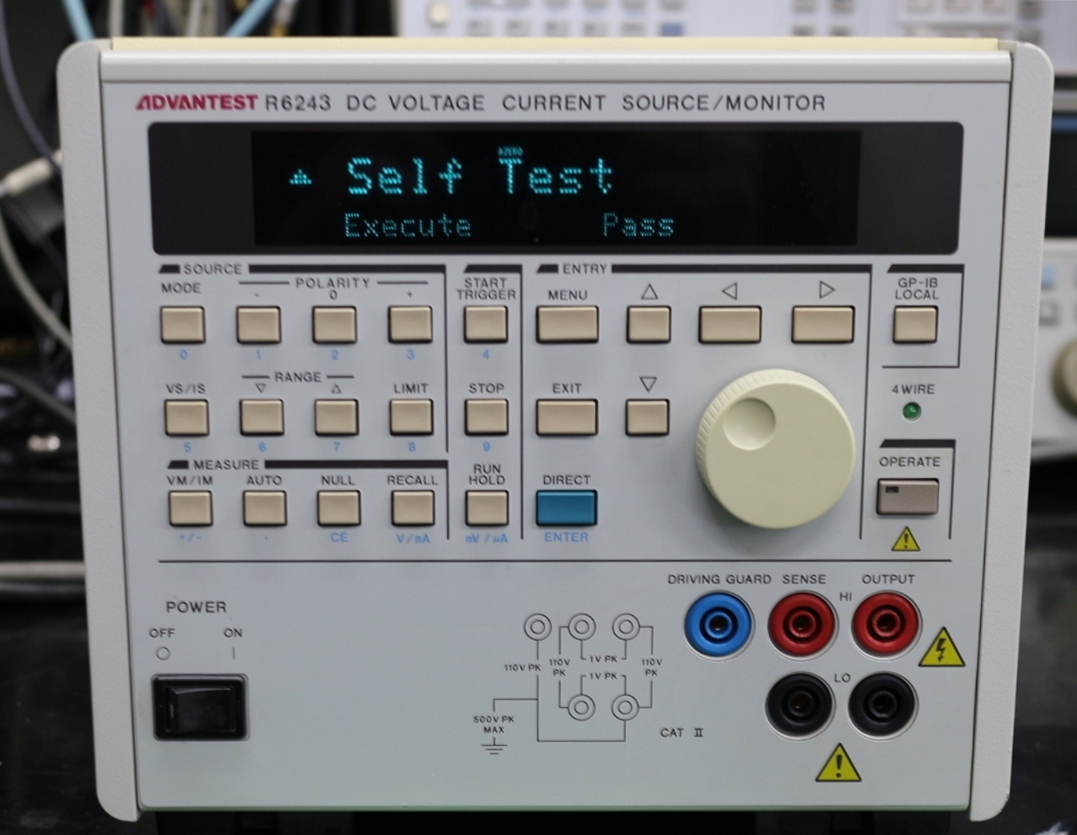

R6243 110V 2A DC Voltage Current Source Meter

198,000円(税込)

仕様

Output: 4-1/2 digits
Voltage 0-+-110V,4range 320.00mV,3.2000,32.000V,110.00V
Current 0-+-2A,6range 32.000uA,320.00,3.2000mA,32.000,320.00mA,2000.0mA
Measurement 5 1/2 digits
Voltage 320.000mV,3.20000V,32.0000V,110.000V
Current 32.0000uA,320.000uA,3.20000mA,320.000mA,2000.00mA
4W Drive-Guard
Limitter Voltage 3mV-110V Current 300nA-2A
Pulse Mode: period 2ms-60.000s Width:1ms-60.000s delay:300us-60.000s Hold 3ms-60.000s
Sweep:Linear,Log,Random,pulse 1-1000cycle,cont 5000step
Memory 5000 Trig-in Sync-out Complete,Interlock GP-IB
AC 100-240V 50/60Hz 350VA
177H212W450D 17Kg
